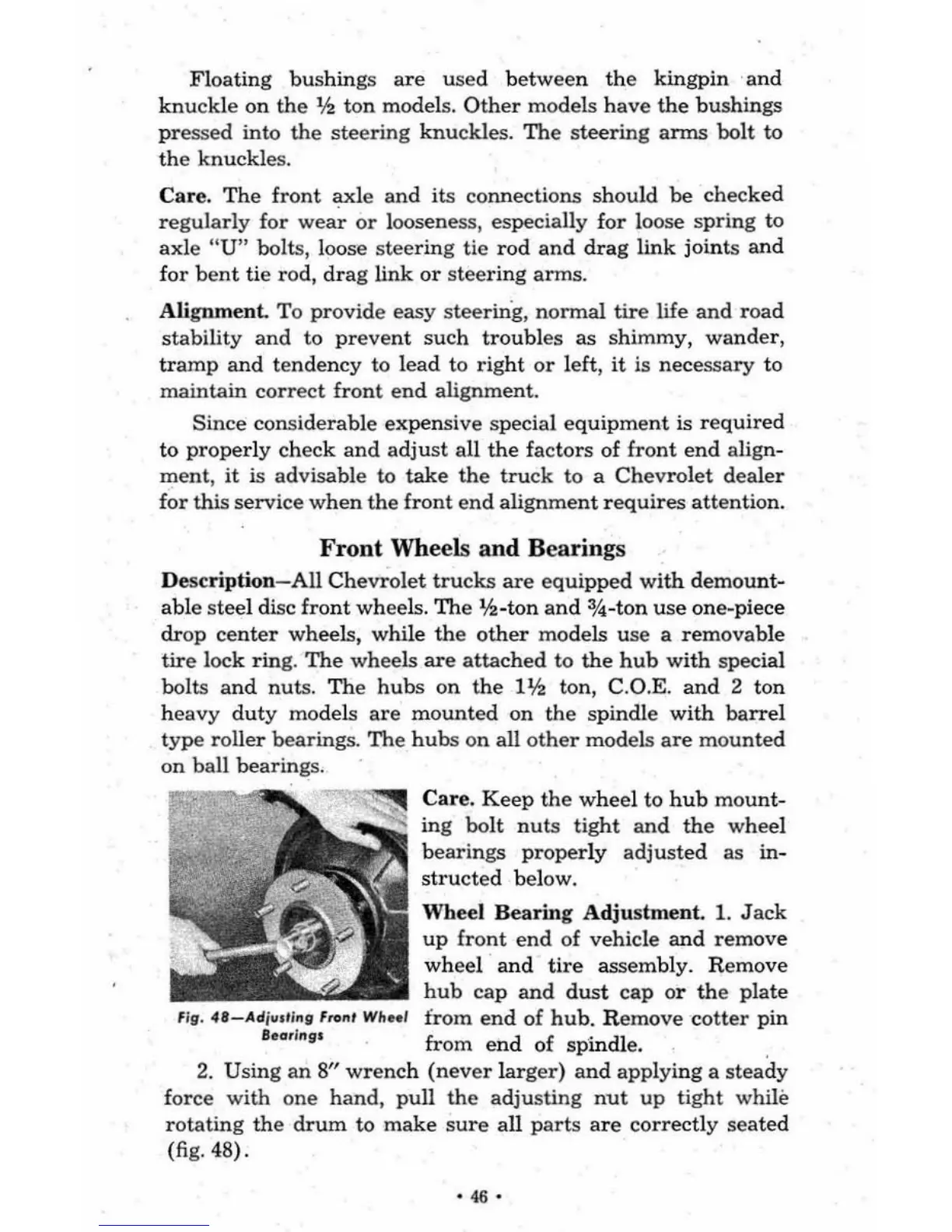

Floating
bushings
are
used
between
the
kingpin
'
and
kn
uckle
on
the
Ih
ton
models.
Other
models h
ave
the
bushings
pressed
into
the
steering
k
nuckles.
The
steering
arms
bo
lt
to
the
knuckles.
Care.
The
front
axle
and
its connections
should
be
checked
regularly
for
wear
or
looseness, especially
for
loose
spring
to
axle
"U"
bolts, loose
steering
tie
rod
and
drag
link
jo
i
nt
s
and
for
bent
tie rod,
drag
link
or
steering
arms.
Alignment
To
provide
easy
steering,
normal
tire
life
and
road
stability
and
to
prevent
such
troubles
as
shimmy,
wander,
tr
amp
and
tendency
to
lead
to
right
or
left,
it
is
necessary
to
maintain
correct
front
end
alignment.
Since
considerab
le
expensive
special
equipment
is
required
to
properly
check
and
adjust
all
the
f
actors
of
front
end
align-
ment
,
it
is
advisable to
take
the
truck
to
a
Chevrolet
dealer
for
this
service
when
the
front
end
alignment
requ
ires
attention.
Front
Wheels
and
Bearings
Description-All
Chevrolet
trucks
are
equipped
with
demount-
able
stee
l disc
front
wheels.
Th
e
lh-ton
and
%-ton
use
one-piece
drop
center
wheels, while
th
e
other
models
use
a
removable
tire
lock ring.
The
whee
ls
are
attached
to
the
hub
with
specia
l
bolts
and
nuts.
The
hubs
on
the
Ph ton, C.O.E.
and
2 ton
h
eavy
duty
models
are
mounted
on
the
spindle
with
barrel
type
roller
bearings.
The
hubs
on
all
other
models
are
mounted
on
ball bearings.
Care.
Keep
the
wheel
to
hub
mount-
ing
bolt
nuts
tight
and
the
whee
l
b
earings
properly
adjusted
as
in-
structed
below.
Wheel
Bearing
Adjustment.
1.
Jack
up
front
end
of vehicle
and
remove
wheel
and
tire
assembly.
Remove
hub
cap
and
dust
cap
or
th
e
plate
'
I,
.•
'-Acli"'ti"g "oM Wh
..
1
from
end
of
hub.
Remove
cott
er
pin
Be
.. ,
I,,
8"
from
end
of
spindle.
2.
Using
an
8"
wrench
(nev
er
larg
er)
and
applying
a
steady
force
with
one
hand,
pull
the
adjusting
nut
up
tight
while
rotating
the
drum
to
make
sure
all
parts
are
correctly
seated
(fig. 48).
.
...
