Viscosity
15-100 cStViscosity (permitted)
NOTICE Always use clean oil and filling
equipment.

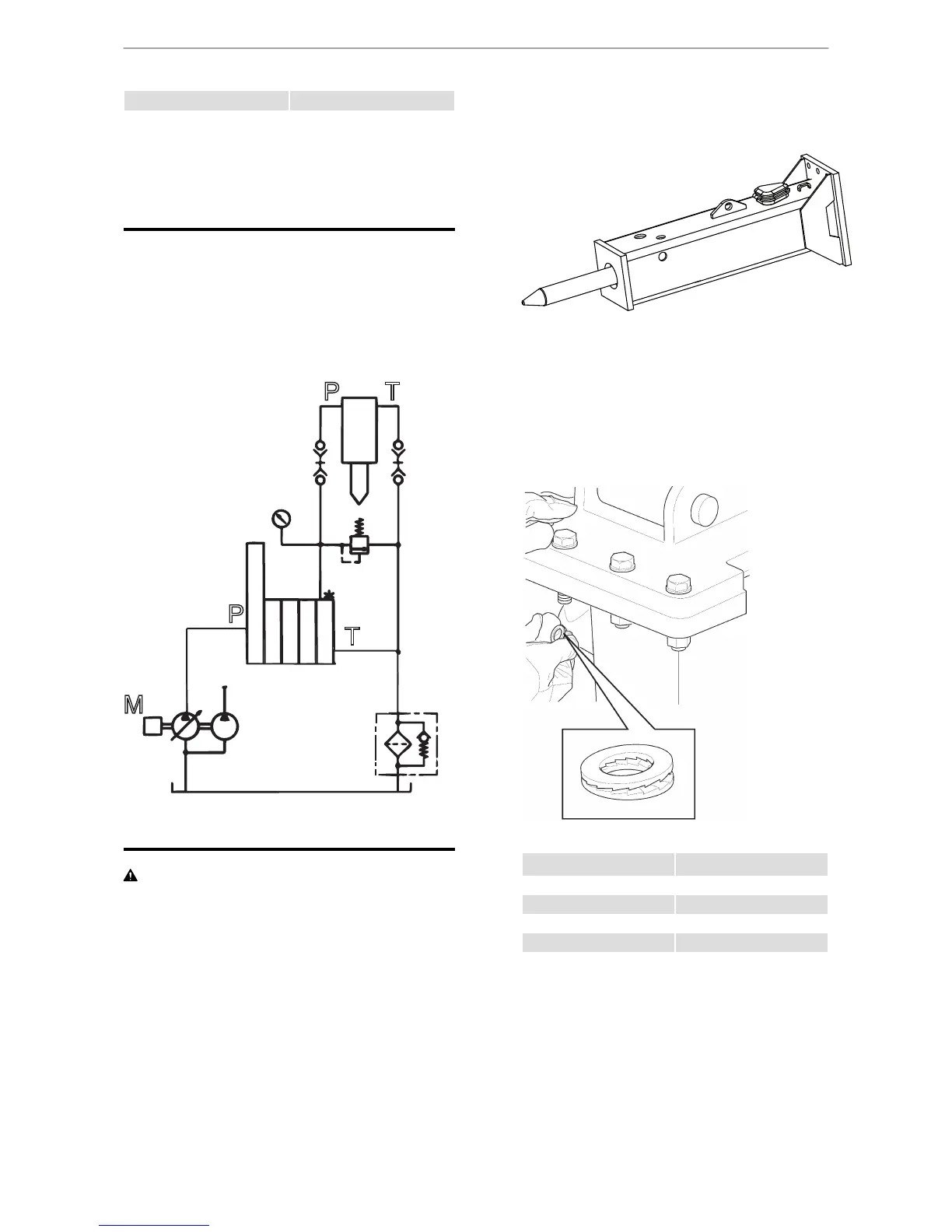

Pressure adjustment
To ensure that the accumulator and hammer are not
overloaded, a separate pressure relief valve should
be installed, see picture below. It is set at a value of
30 bar over the hammer’s maximum operating
pressure. If the carrier’s breaker circuit is already
equipped with a pressure limiting valve, no extra
valve is necessary.
Assembly
WARNING Falling breaker can cause
injuries
► Place the breaker in a safe position where it can
not fall over and cause damage.
Preparation
1. Place the breaker in a position where it is easy
and safe to mount the adapter plate.
Mounting the adapter plate
2. Place a locking washer pair on each screw.
3. Tighten the screws with an spanner.
4. Always use NORDLOCK™ washers under bolt
and nut (NORDLOCK™ is a registered trademark
of Nord-Lock AB).
5.
Tightening torqueAdapter plate
200 NmRX 2
200 NmRX 3
390 NmRX 4
390 NmRX 6
390 NmRX 8
Connecting the breaker to the carrier
6. Place the breaker in a safe way at installation.
9800 1050 01f | Original instructions14
