Page 13SKU 66604 For technical questions, please call 1-800-444-3353.
To add engine oil, unscrew and remove the Oil Dipstick (65A). Pour engine oil into 3.
the oil ll hole until the level of oil is even with the bottom edge of the oil ll hole (if
you cannot see the oil through the oil ll hole, then the oil is too low and more oil
must be added). Then, make sure to screw the Oil Dipstick back into its Dipstick
Hole. (See Figure D.)
THIS GENERATOR HAS AN AUTO-SHUTDOWN OIL SENSOR. IF ENGINE STOPS
OR WILL NOT START, CHECK OIL LEVEL.

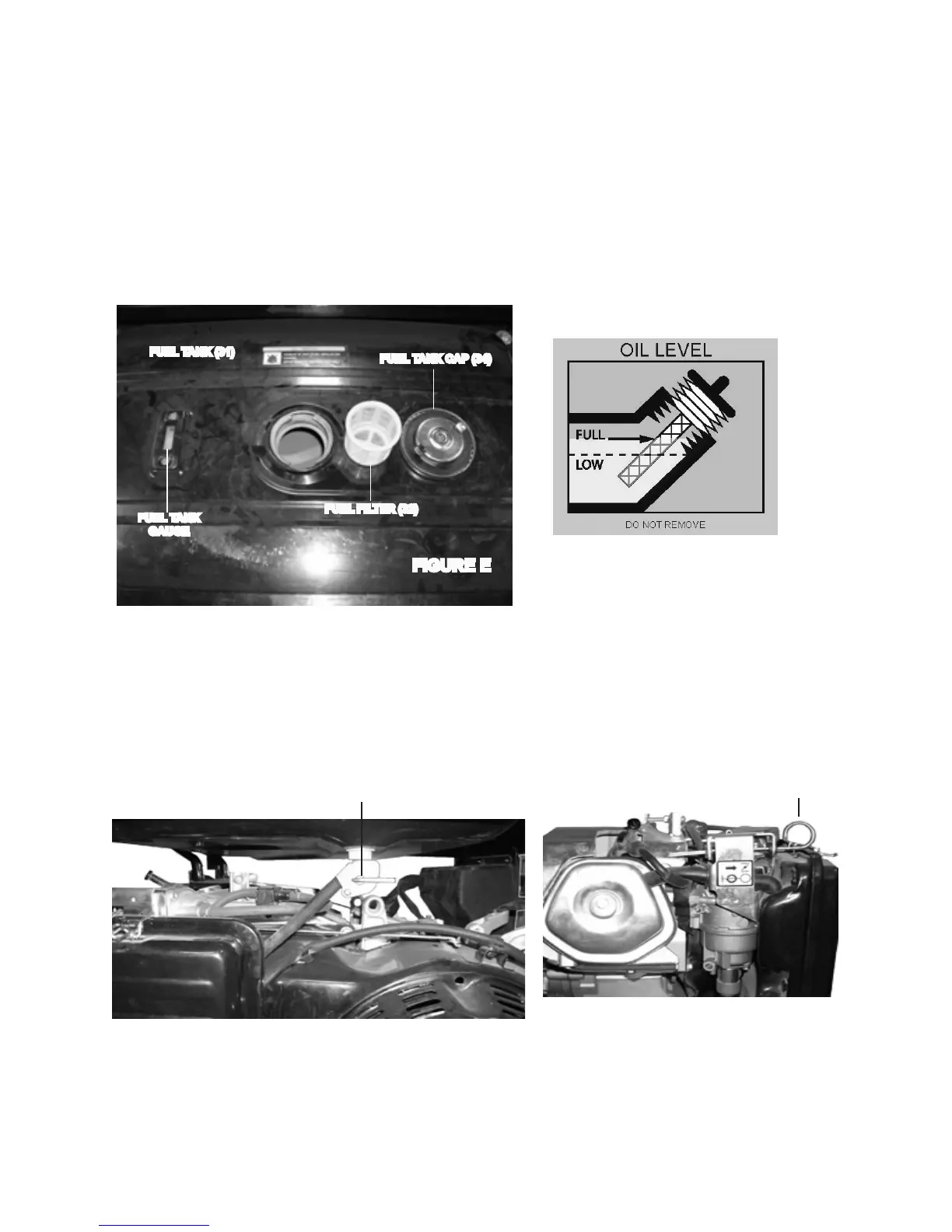

To ll the Fuel Tank (31), unscrew and remove the Fuel Tank Cap (34). Fill the 4.
Fuel Tank with mid-to-high octane unleaded gasoline. Then replace the Fuel
Tank Cap. Thereafter, check the Fuel Tank Gauge for the amount of unleaded
gasoline. When necessary, rell the Fuel Tank. (See Figure E.)
Periodically, check the Fuel Filter (32) for excessive dirt and debris. If necessary, 5.
remove the Fuel Filter and clean with compressed air. (See Figure E.)
FUEL VALVE (41)
FIGURE F
CHOKE LEVER (21A)
FUEL TANK (31)
FUEL TANK
GAUGE
FUEL TANK CAP (34)
FUEL FILTER (32)
FIGURE E
