Page 18SKU 66604 For technical questions, please call 1-800-444-3353.
After every 100 hours of use: 9. Clean and re-gap the Spark Plug 8A).
(See Figure I.)
To do so, use a 13/16” spark plug wrench (not included) to remove the Spark Plug.10.
Use a ne-grade sandpaper to clean off carbon build-up from the electrodes of the Spark 11.
Plug (28A). Clean with compressed air to remove residue. (See Figure I.)
Measure the electrode gap with a suitable gauge. The gap should be 12. 0.028” to 0.031”. If
necessary, correct the gap by carefully bending the side of the electrode.
(See Figure I.)
Reinstall the Spark Plug (28A) carefully to avoid cross-threading. 13. (See Figure I.)
Daily: 14. Inspect the Fuel Filter (32).
To do so, remove the Fuel Tank Cap (34) from the Fuel Tank (31). 15.
(See Figure J.)
If necessary, use compressed air to remove any dirt and debris from the Fuel Filter (32). 16.
Then replace the Fuel Filter and Fuel Tank Cap (34). (See Figure J.)
When storing the Generator for extended periods: Before storing, drain all fuel out
of the Engine’s Fuel Tank (31). If this is not followed, old fuel in the Fuel Tank may clog
the Carburetor of the Engine and prevent it from starting until cleaned out. Then make
sure to store the unit in a clean, dry, safe location out of reach of children and other
unauthorized people.
PLEASE READ THE FOLLOWING
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR

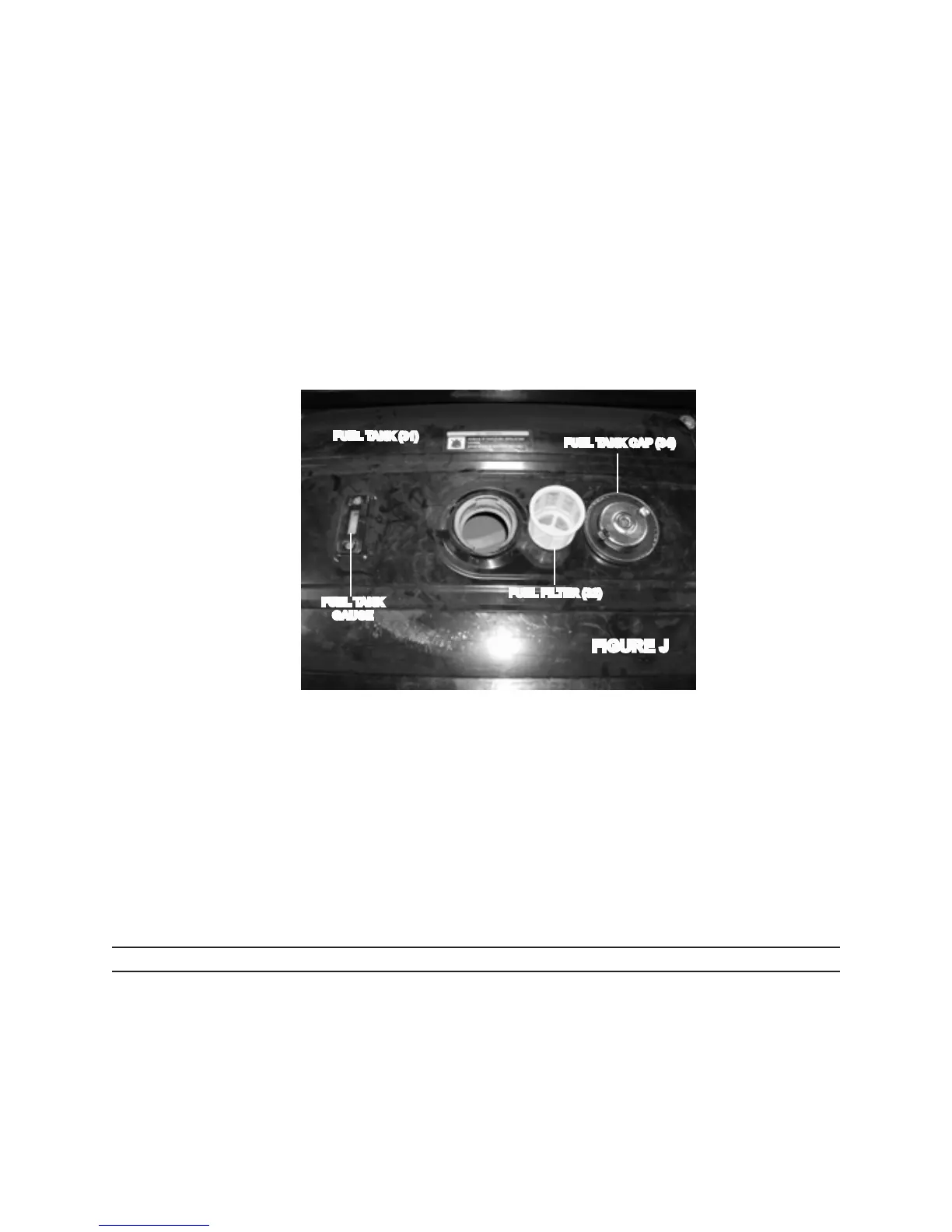

FUEL TANK (31)
FUEL TANK
GAUGE
FUEL TANK CAP (34)
FUEL FILTER (32)
FIGURE J
