NOTE: 3. If the Engine will be run in temperatures above 32 degrees Fahrenheit, use SAE
30 weight oil. If the Engine will be run in temperatures below 32 degrees Fahrenheit, use
SAE 5W-30 weight oil.
To add engine oil, unscrew and remove the Oil Dipstick (65A). Pour engine oil into the 4.
oil ll hole until the level of oil is even with the bottom edge of the oil ll hole (if you can-
not see the oil through the oil ll hole, then the oil is too low and more oil must be added).
Then, make sure to screw the Oil Dipstick back into its Dipstick Hole. (See Figure G.)
After every 25 hours of use: 5. Service the Air Cleaner Element (19A) and Air Cleaner
Separator (20A). (See Figure H.)
To do so, remove the Air Cleaner Cover (18A). Remove the Air Cleaner Element (19A). 6.
Immerse the Air Cleaner Element in a mild solvent and squeeze the Element several times
to clean. Remove the Element from the solvent and squeeze thoroughly to dry. Then,
squirt several drops of a light weight oil into the Element and squeeze the Element so oil
reaches all parts of the Element. (See Figure H.)
Use compressed air to clean the Air Element Separator (20A). Then replace the Air 7.
Element Separator, Air Cleaner Element, and Air Cleaner Cover (18A).
(See Figure H.)
Clean more often under dusty conditions or when airborne debris is present. Replace Air 8.
Cleaner parts if necessary. (See Figure H.)

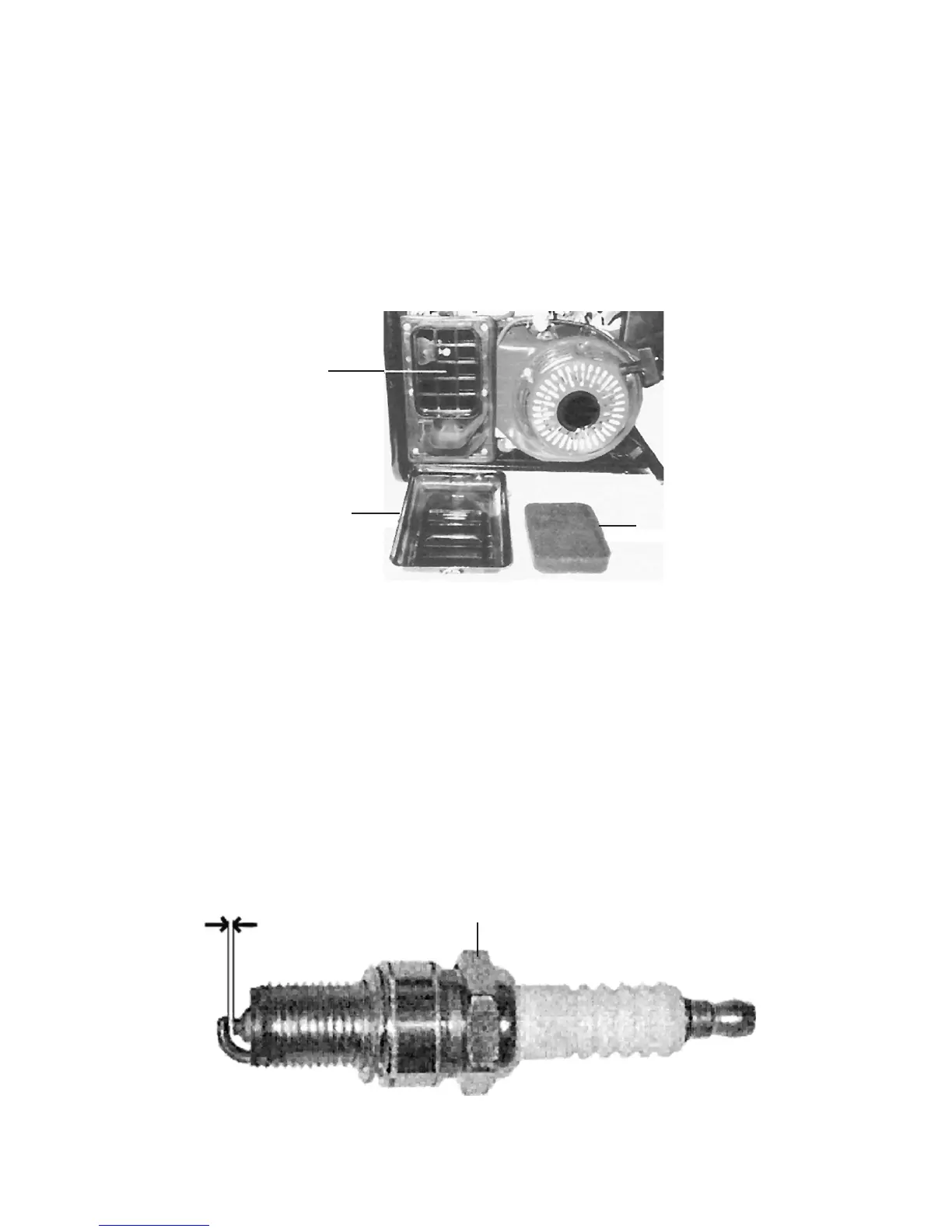

AIR CLEANER SEPARATOR (20A)
AIR CLEANER ELEMENT (19A)
AIR CLEANER COVER (18A)
FIGURE H
FIGURE I
SPARK PLUG (28A)
0.028” - 0.031”
