R410A50Hz Universal Outdoor Series TechnicalManual Outdoor unit
139
GD Chigo Heating & Ventilation Equipment Co., Ltd.

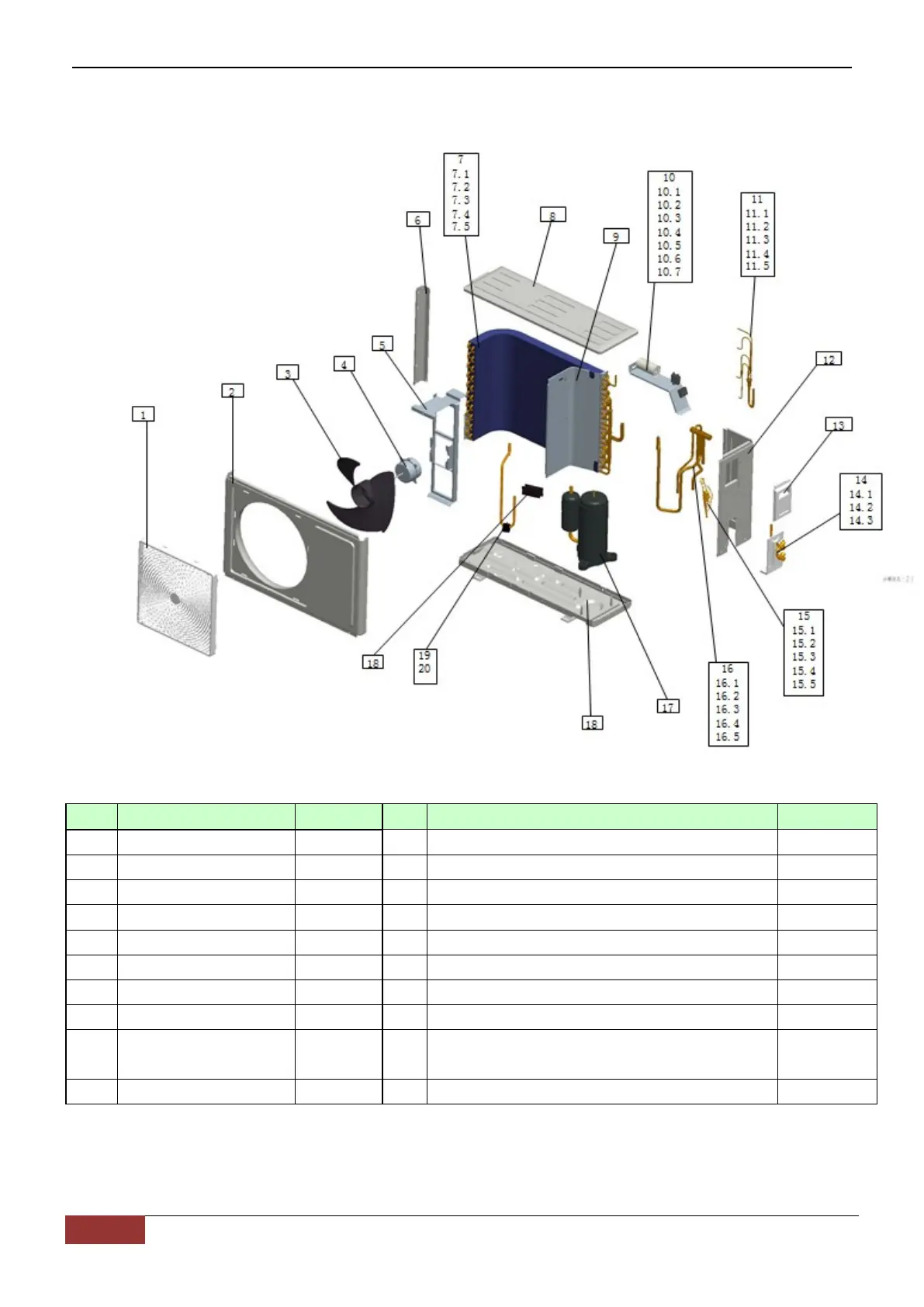

8.Exploded View
8.1 COU-12HR1, COU-18HR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
Top net
1
11
Pre-welding assy for distributing capillary
1
2
Panel assy
1
12
Right clapboard
1
3
Propeller fan
1
13
Handle
1
4
Fan motor
1
14
Valve holder assy
1
5
Holder for fan motor
1
15
Pre-welding assy for throttle capillary
1
6
column
1
16
4-Ways valve assy
1
7
Condenser assy
1
17
Compressor
1
8
Cover
1
18
Chassis
1
9 Separating board 1 19
shock absorber block（ball）
1
10
E-parts assy
1
20
shock absorber block
1
