R410A50Hz Universal Outdoor Series Technical Manual Installation
GD Chigo Heating & Ventilation Equipment Co., Ltd.
5.Insulation Work
5.1 Insulation material and thickness
5.1.1. Insulation material
Insulation material should adopt the material which is able to endure the pipe’s temperature:
no less than 70℃ in the high-pressure side, no less than 120℃ in the low-pressure side(For
the cooling type machine, no requirements at the low-pressure side.)
Example: Heat pump type----Heat-resistant Polyethylene foam (withstand above 120℃)
Cooling only type----Polyethylene foam (withstand above 100℃)
5.1.2. Thickness choice for insulation material
Insulation material thickness is as follows:
Adiabatic material thickness
Refrigerant pipe
5.2 Refrigerant pipe insulation
5.2.1. Work Procedure
① Before laying the pipes, the non-jointing parts and non-connection parts should be heat
insulated.
② When the gas proof test is eligible, the jointing area, expanding area and the flange area
should be heat insulated

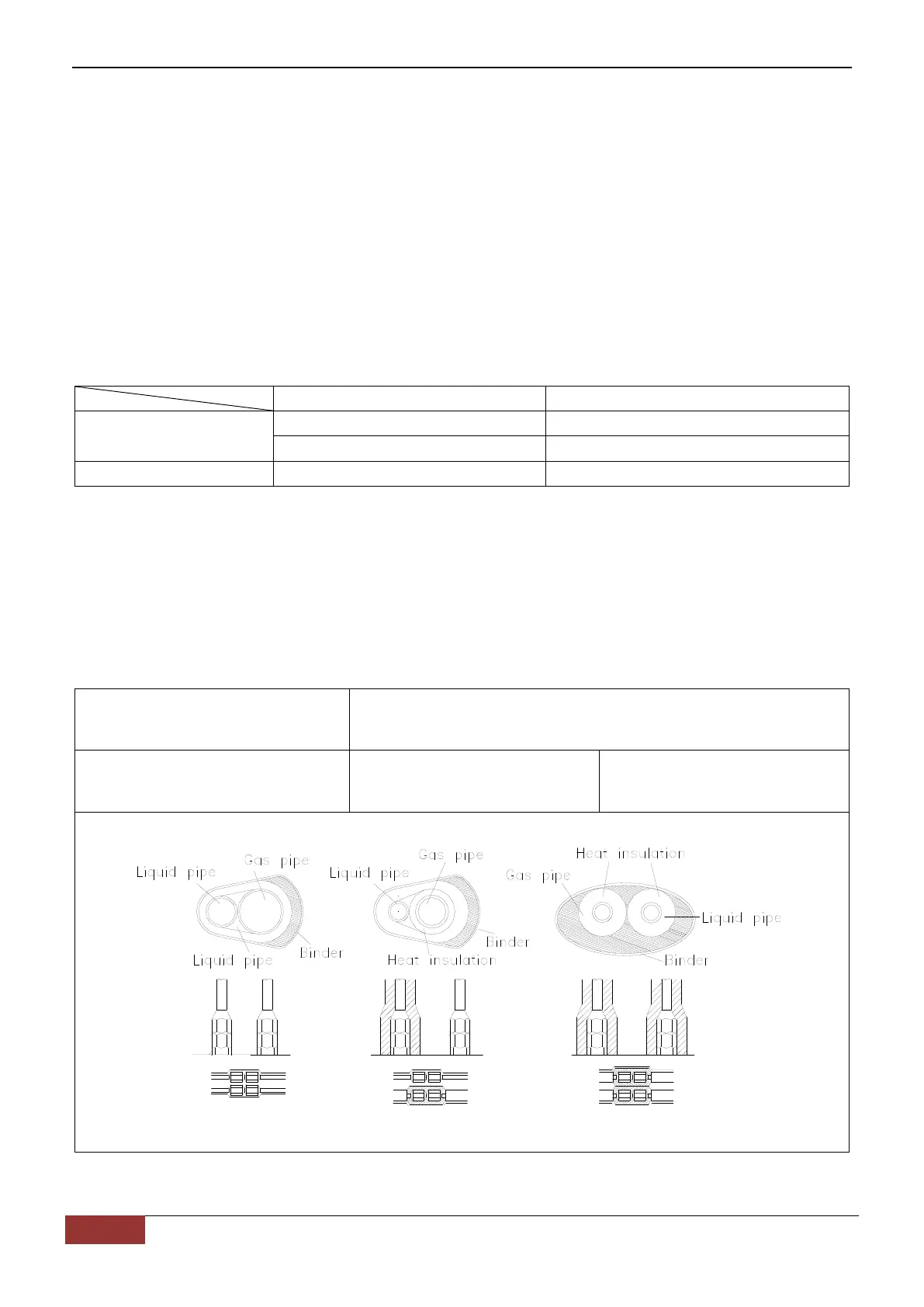

5.2.2. Insulation for non-jointing parts and non-connection parts
wrong right
Gas pipe and liquid pipe should
not be put together to insulate
Insulate the gas pipe
(cooling only)
Insulate the gas pipe and
liquid pipe
To Next Page
