CHIGO CAC FCU MCAC-VTSM-2008-09
Błąd! Nie można odnaleźć źródła odwołania.

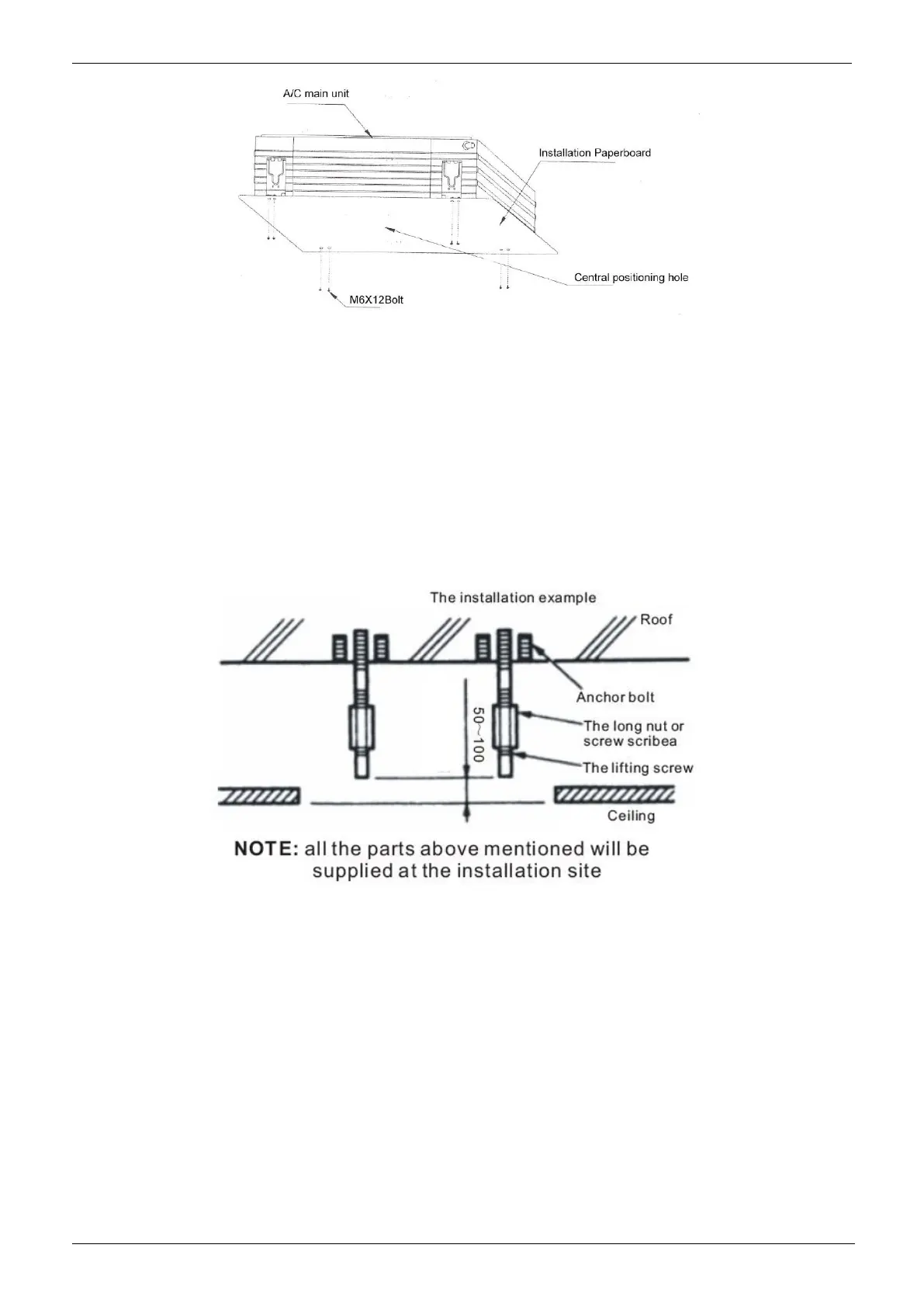

Note: After installing the main unit, fix the four bolts M6 ×12 onto the main unit to fasten the unit.
4. Install the Panel
Caution:
Never put the panel face down on floor or against the wall, or on bulgy objects.
Never crash or strike it.
A. Remove air inlet grille
(1) Slide or press down the two grille switches together, and then lift them up (See Fig 8);
(2) Lift the air inlet grille to about 45° and then take it down (See Fig 9);
B. Remove installation lid from four corners
Unscrew the bolts and loosen the rope of installation lid and then draw out the lid (See Fig 10)
C. Install the panel
(1) Point the swing motor on the panel straight to the tubing side of the main unit (See Fig 11);
(2) In installation, put the hooks of swing motor and the panel onto the hook of water pan on the main unit
(as shown in Fig 12①), and then put the rest two hooks of the panel onto the suspending support of the main
unit (as shown in Fig 12②);
NOTE: The summit of the plastic lid of the swing motor should be inserted into the recess of the sealing
panel of the outlet pipe;
(3) Insert the lead of the swing motor into the clip position on the panel;
NOTE: Not entangle the lead into the sealed sponge
(4) Adjust the four hook bolts to keep the panel level and evenly lift t to the position close to the ceiling (as
shown in Fig 11③)
To Next Page
