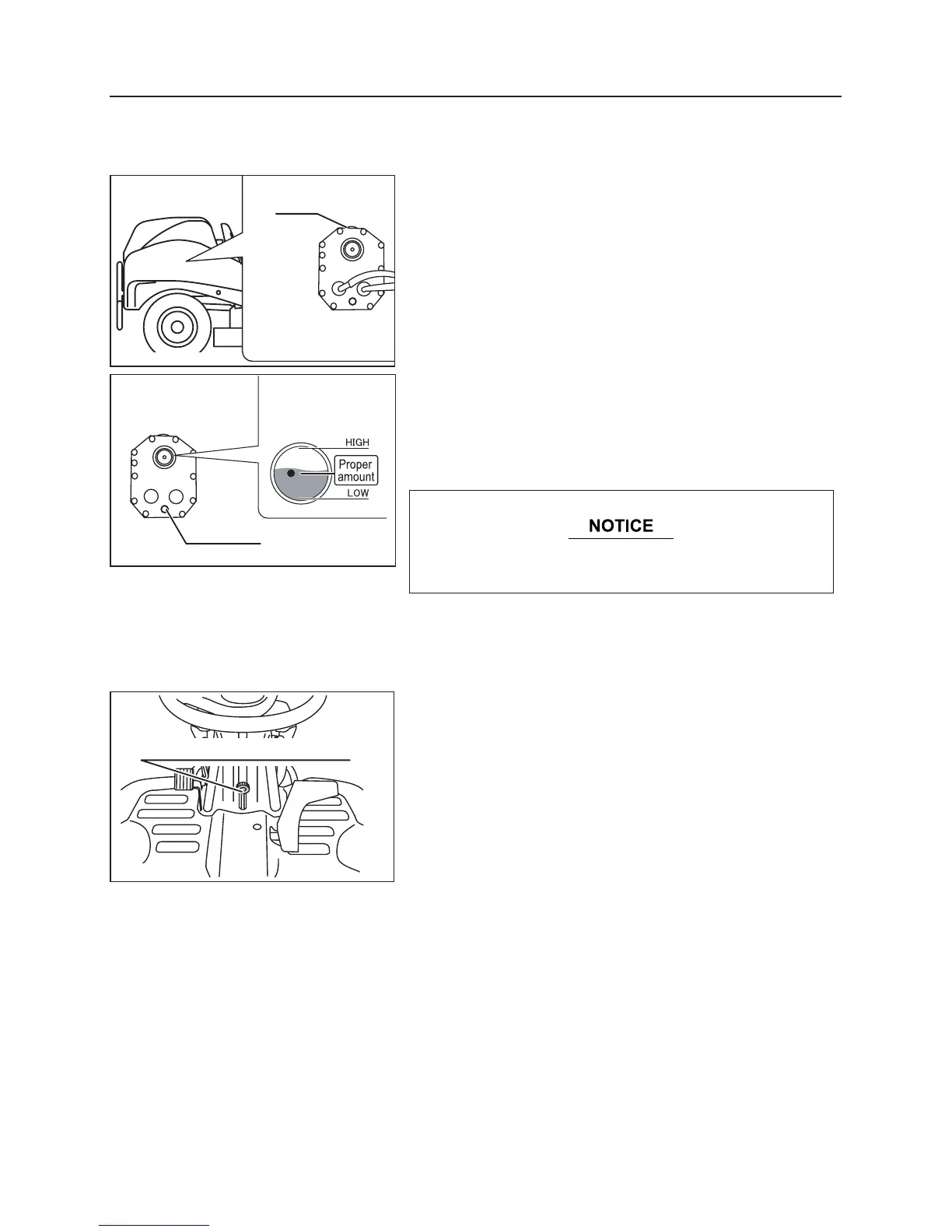

6.1.3 Checking HST Oil Level and Adding Oil
6.1.4 Adjustment of Steering Wheel Height
Inspection
1. Park machine on a horizontal surface.
2. Check the hydraulic fluid level gauge. If the fluid level is
low, add fluid.
Adding
1. Remove the side cover on the right side of the machine.
2. Remove the oil tank cap, and refill with designated oil to the
center of the oil level gauge.
Oil to use : See page 28
Operation
1. Loosen the adjusting knob and adjust the steering
wheel height by moving the steering wheel up or down.
2. After the adjustment, tighten the adjusting knob securely.
Steering wheel adjusting knob
5316M-0601-030
Control oil flow to avoid overflows.
Cap
HST oil tank
5316M-0601-010
Oil level gauge
Drain plug
5316M-0601-020
