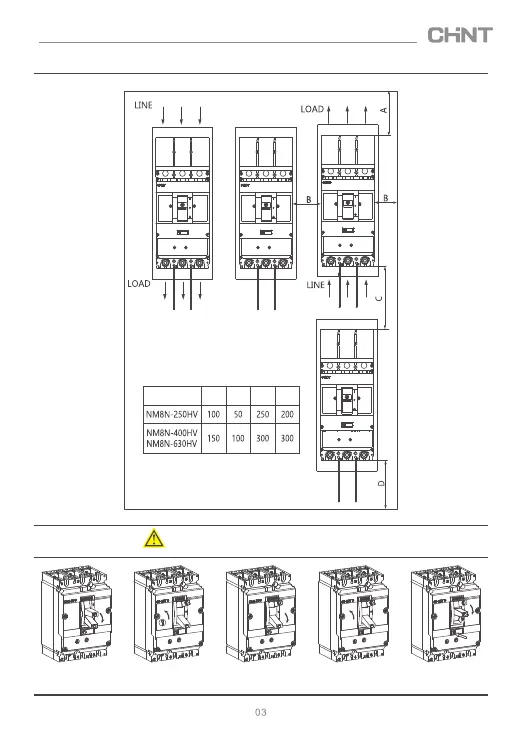

CHINT NM8N Series - Overall and Installation Dimensions; Circuit Breaker Operating Positions; General Dimensions for NM8 N Series

Model
A B
C
D
To ensure minimum installation distance
Back to the LOCK postion
ON OFF ON TRIP
Test
NM8N High-voltage (HV) Series Molded Case Circuit Breaker
