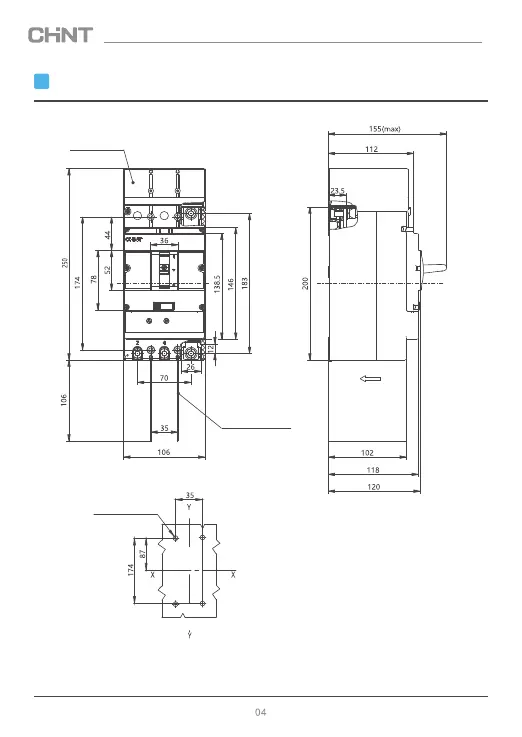

Fig 1 Overall and Installation Dimensions for NM8N - 250 HV
Terminal Cover
Arc Isolating Plate
4 x ø 5.5 or 4 x M5
Overall and Installation Dimensions
NM8N High-voltage (HV) Series Molded Case Circuit Breaker
5
