Terminal Cover
Arc Isolating Plate
4 x ø 5.5 or 4 x M5

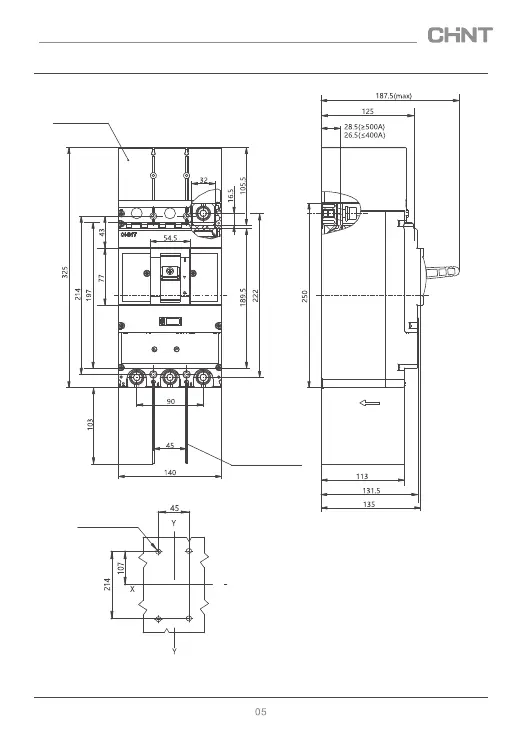

Fig 2 Overall and Installation Dimensions for NM8N - 400/630 HV
NM8N High-voltage (HV) Series Molded Case Circuit Breaker
