CHINT NVF5-2.2/TS4-B User Manual

NVF5 Series User Manual Chapter 2 Product Overview
（Temperature at（45～50）℃，derate 1% for every 1
℃
Humidity
（
5
～
95
）％
RH
，
non-condensing
Vibration
Vibration accel. speed≤5.8m/s²
Storage
（
-40
～＋
70
）
℃
Structure
IP level
IP20(Standard)
，
IP22 with accessories
Cooling mode
Cooling Fan
Materials
Plastic for all series
Installation mode
≤2.2kW Din rail or screw
（
Single-phase 2.2kW only
screw
）；＞
2.2kW screw

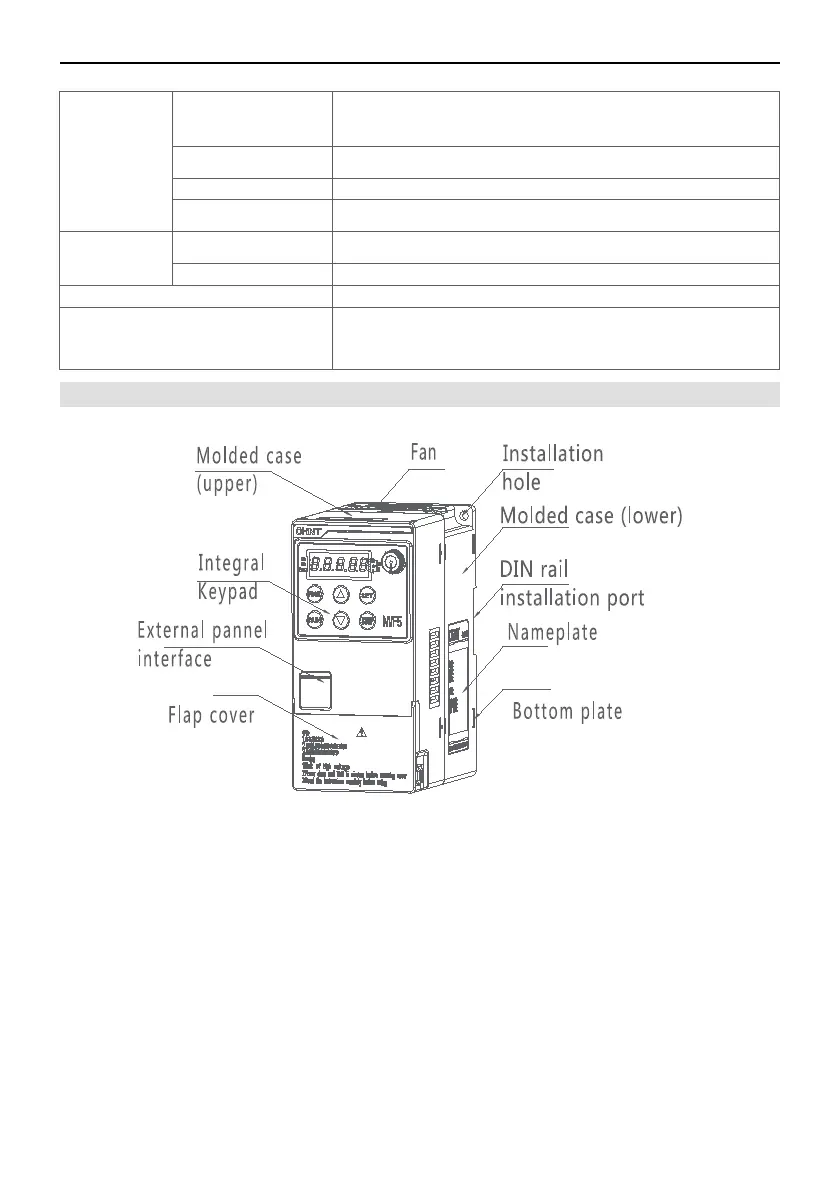

2.5 Product Appearance and Diagram
Figure 2-5-1 NVF5-0.4/TD2～NVF5-2.2/TD2/NVF5-0.4/TS4-B～NVF5-2.2/TS4-B Appearance
Diagram
（The cooling fan of NVF5-2.2/TD2 at the bottom of the Inverter）
- 9 -

CHINT NVF5-2.2/TS4-B Specifications

General

Brand	CHINT
Model	NVF5-2.2/TS4-B
Category	Inverter
Language	English
