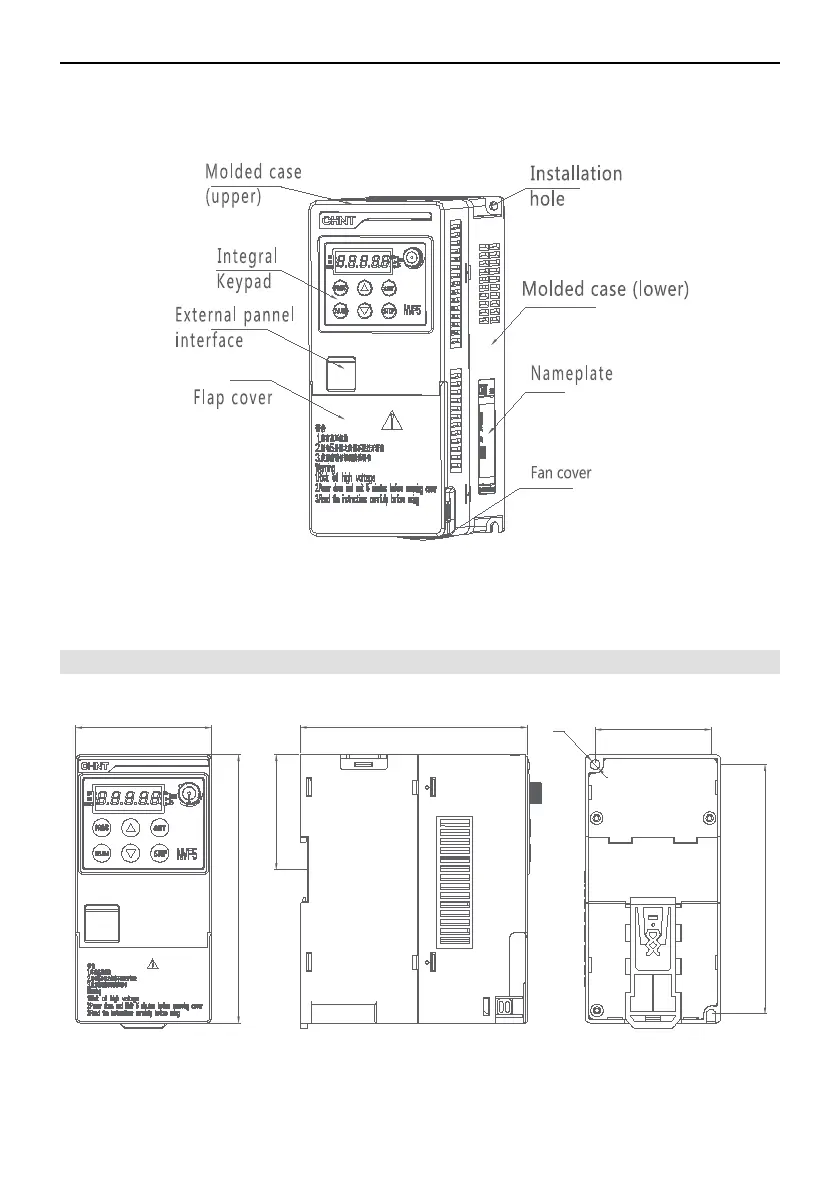

NVF5 Series User Manual Chapter 2 Product Overview
Figure 2-5-2 NVF5-3.7/TS4-B～NVF5-7.5/TS4-B Appearance Diagram
2.6 Product Dimensions and Weights
W
H
D
H1
W1
d
63.4
Figure 2-6-1 NVF5-0.4/TD2～NVF5-2.2/TD2/NVF5-0.4/TS4-B～NVF5-2.2/TS4-B Appearance
Diagram
- 10 -
