NVF5 Series User Manual Chapter 6 Parameter Function Description
10
DC Bus Voltage
（0.0～1000.0）V
11
AI1
（0 ～ 10）V
12
AI2
（0 ～ 10）V
14
Pulse Input
（0.01 ～ 100.00）kHz
18
Output Current
（0 ～ 1000）A
19
Output Voltage
（0 ～ 1000）V
20
Output Torque（＋/－）
-2 times Motor Rated Current～ ＋
2
times Motor Rated Torque
6.12 Ride Through Function
The Ride Through function enables the system to run continuously during short time
power failure.
When a power failure occurs, inverter keeps in the Regenerative status, the DC Bus
Voltage is maintained in FE.16，avoid inverter stop due to short time input voltage cut off
to cause Undervoltage Fault.

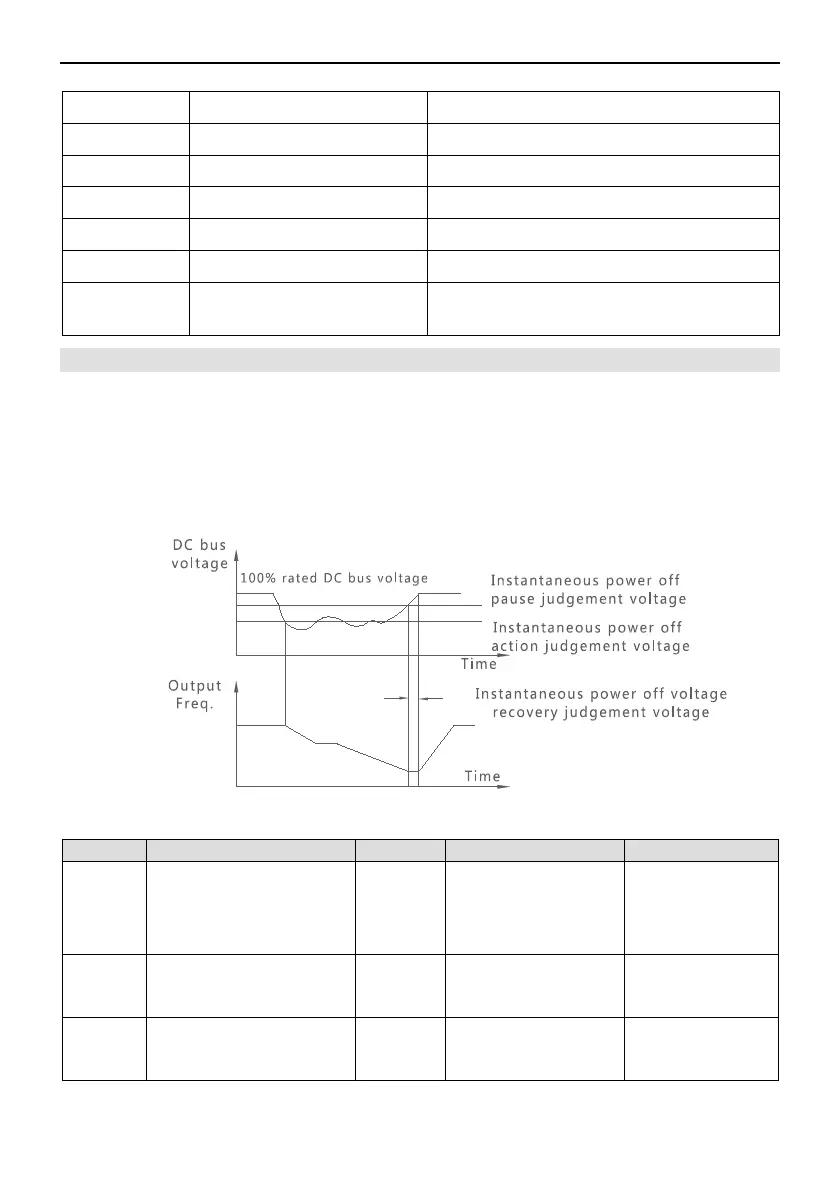

Figure 6-12-1 Ride Through Function
Code
Name
Default
Setting Range
Description
FE.13
Instantaneous power
Off Action Selection
0
0 ～ 2
0：Ineffective
1：Decel.
2：Decel. Stop
FE.14
Judgement Voltage of
Instantaneous Action
90.0%
（80.0 ～ 100.0）
%
100% equals
Standard DC
Bus Voltage
FE.15
Judgement Time of
Instantaneous Power
Failure Voltage Rise
0.50s
（0.00 ～ 100.00）
s
-
