NVF5 Series User Manual Chapter 4 Integral Keypad
Chapter 4 Integral Keypad
4.1 Integral Keypad Instructions

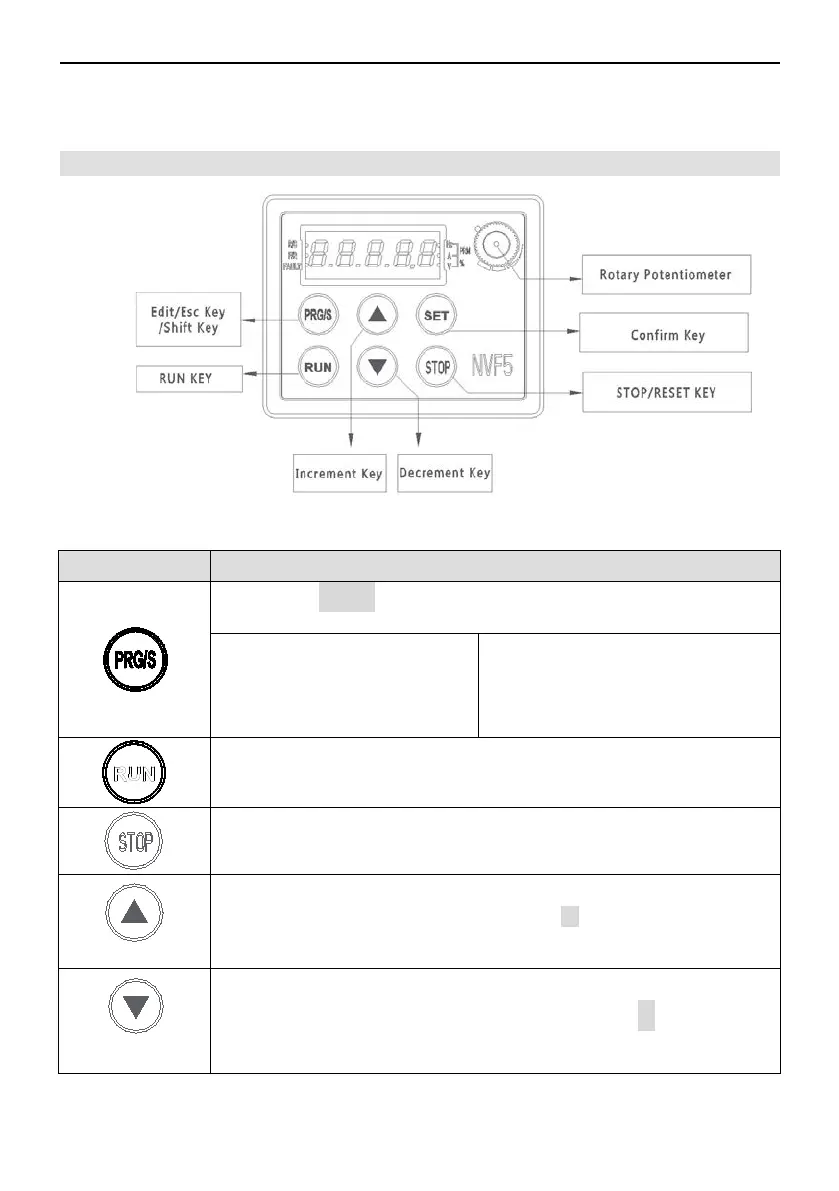

Figure 4-1-1 LED Integral Keypad
Table 4.1 Key Function Description of the Keypad
Key
Description
Long press PRG/S key，if the LED flash state is changed,then you
can loosen this function switch key.
PRG function：Enter and exit
parameters group in
parameter edit state
Shift function：In
parameter edit
state,bit left shift ；
In main
interface,switch display
parameters
Run Key
Stop key when normal state；Reset fault key when fault state
Increase key（Change parameter group No.、parameters and so on），
When inverter is power on,you can use▲key increase frequency
reference directly. Setting frequency changing rate can be changed
by parameter F0.12
Decrease key（Change parameter group No.、parameters and so
on ）， When inverter is power on,you can use▼key decrease
frequency reference directly. Setting frequency changing rate can be
modified by parameter F0.12
