3. Installation and Commissioning

3.1 Installation

According to different application scenarios, the machine supports four installation methods: desktop front projection, desktop back projection,

lifting front projection and lifting back projection.

3.1.1 Installation Method

The display mode (front desktop, rear lifting, front lifting and rear desktop) needs to be changed and set from the OSD menu due to different

applications.

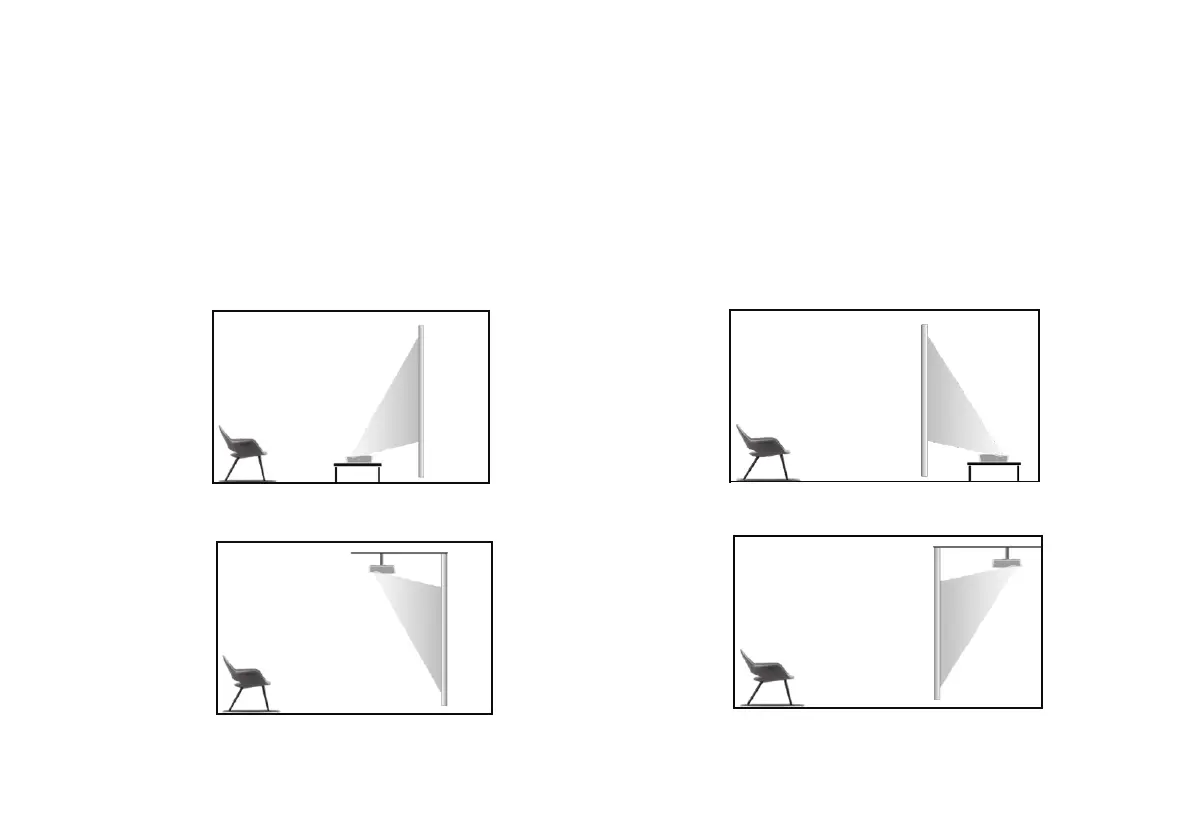

Fig. 8 Desktop Front Projection

Fig. 9 Desktop Rear Projection

Fig. 10 Lifting Front

Fig. 11 Lifting Rear

Projection
