Chison SonoEye P3 - B;M Mode Measurements; PW Mode Measurements

Digital Color Doppler Palm Ultrasound System
38
CO
CO
L/min
HR*SV/1000
EF
EF
%
100*SV/EDV
FS
FS
%
100*
（
LVIDd-LVIDs
）
/LVIDd
SI
SI
SV/BSA
CI
CI
CO/BSA

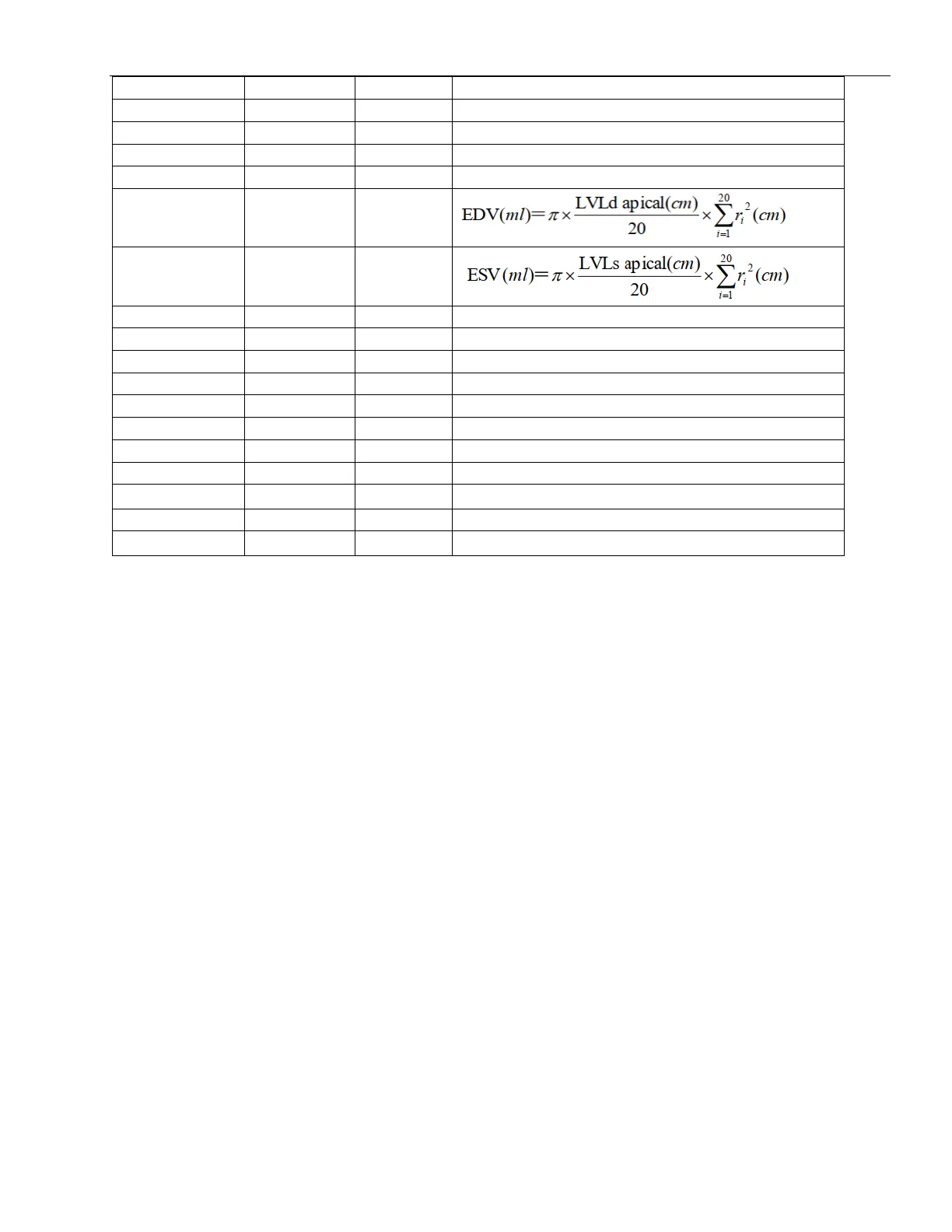

EDV(A2C/A4C)
ml
ESV(A2C/A4C)
ml
SV
SV
ml
EDV-ESV
CO
CO
L/min
HR*SV/1000
EF
EF
%
100*SV/EDV
SI
SI
SV/BSA
CI
CI
CO/BSA
IVC Ins
IVC Ins
cm
Refer to “Distance” measurement in 6.1
IVC Exp
IVC Exp
cm
Refer to “Distance” measurement in 6.1
LVOT Diam
LVOT Diam
cm
Refer to “Distance” measurement in 6.1
LVOT Area
LVOT Area
cm
2
Refer to “Ellipse” measurement in 6.1
AV Diam
AV Diam
cm
Refer to “Distance” measurement in 6.1
AV Area
AV Area
cm
2
Refer to “Ellipse” measurement in 6.1
6.3 B/M Mode Measurement
1. Distance
This feature allows the measurement of the distance between two points. It is a measurement between the
two horizontal lines that lean on the two cursors. The position of the vertical time line does not affect the
distance measurement.
Distance measurement is the same as distance measurement in B mode.
2. Time
Time is the measurement between the two vertical time lines created by two cursors. The position of the
horizontal distance line does not affect time measurements.
3. HR
HR is the measurement between the two vertical lines that are created by two cursors in beat per minute
(BPM). The position of the horizontal distance line does not affect HR.
6.4 PW Mode Measurement
1. Velocity
Press Freeze after finish the scan, select the velocity in menu, the blue “+” displayed on the screen, move it
to desired position to start measurement. The result will display on image area and result area. Repeat the
above steps to start new measurement.
