■ Connection of other units

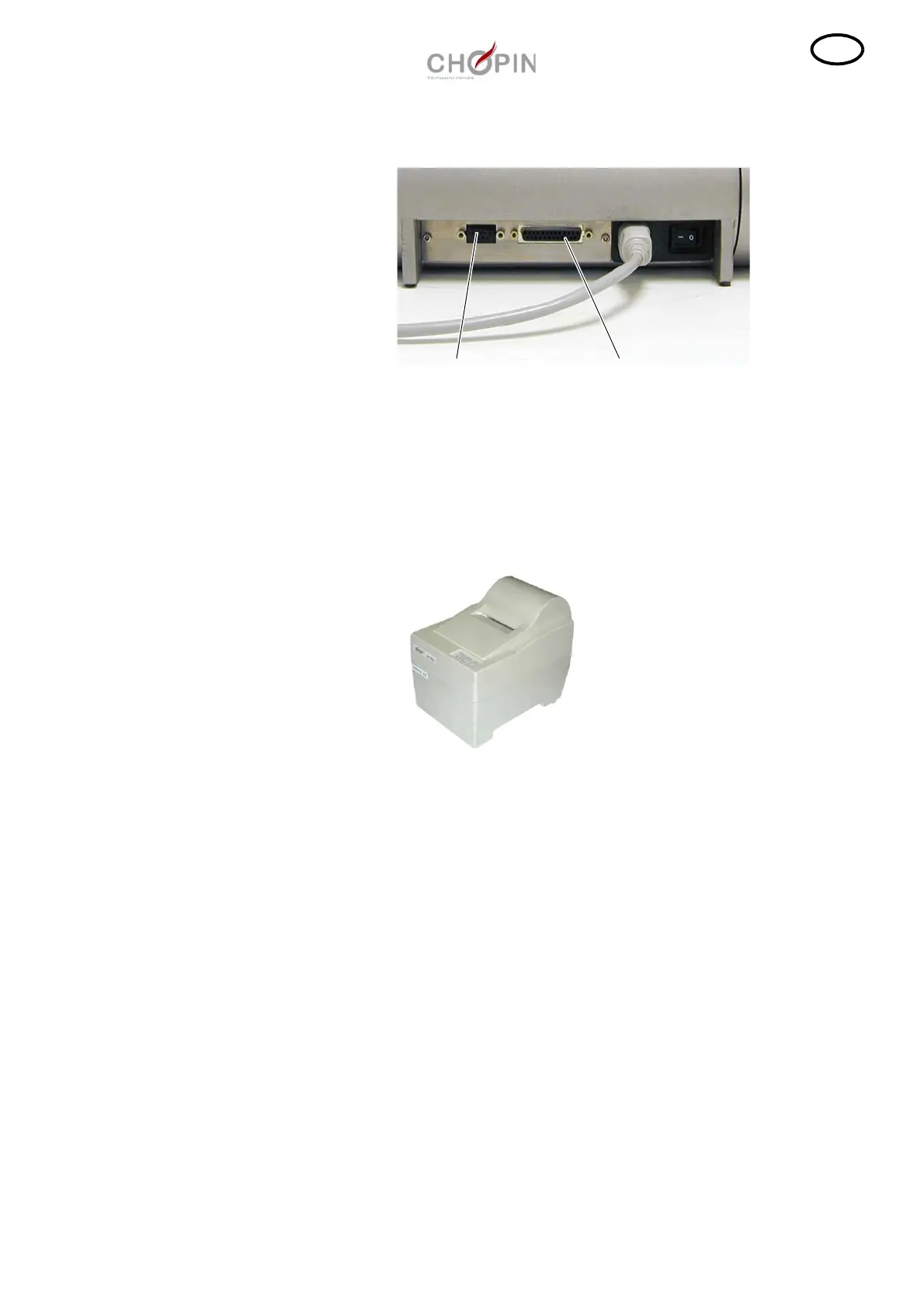

The SDmatic is equipped with two ports located at the back of the
apparatus.
■ Parallel port The parallel port allows the connection of a ticket
printer (24 columns).
■ RS232 port
The RS232 port allows to modify the user calibrations via the pro-
gram SDMlink provided with the SMmatic (refer to page 73).
RS232 Port Parallel port
