Chord MOJO 2 User Manual

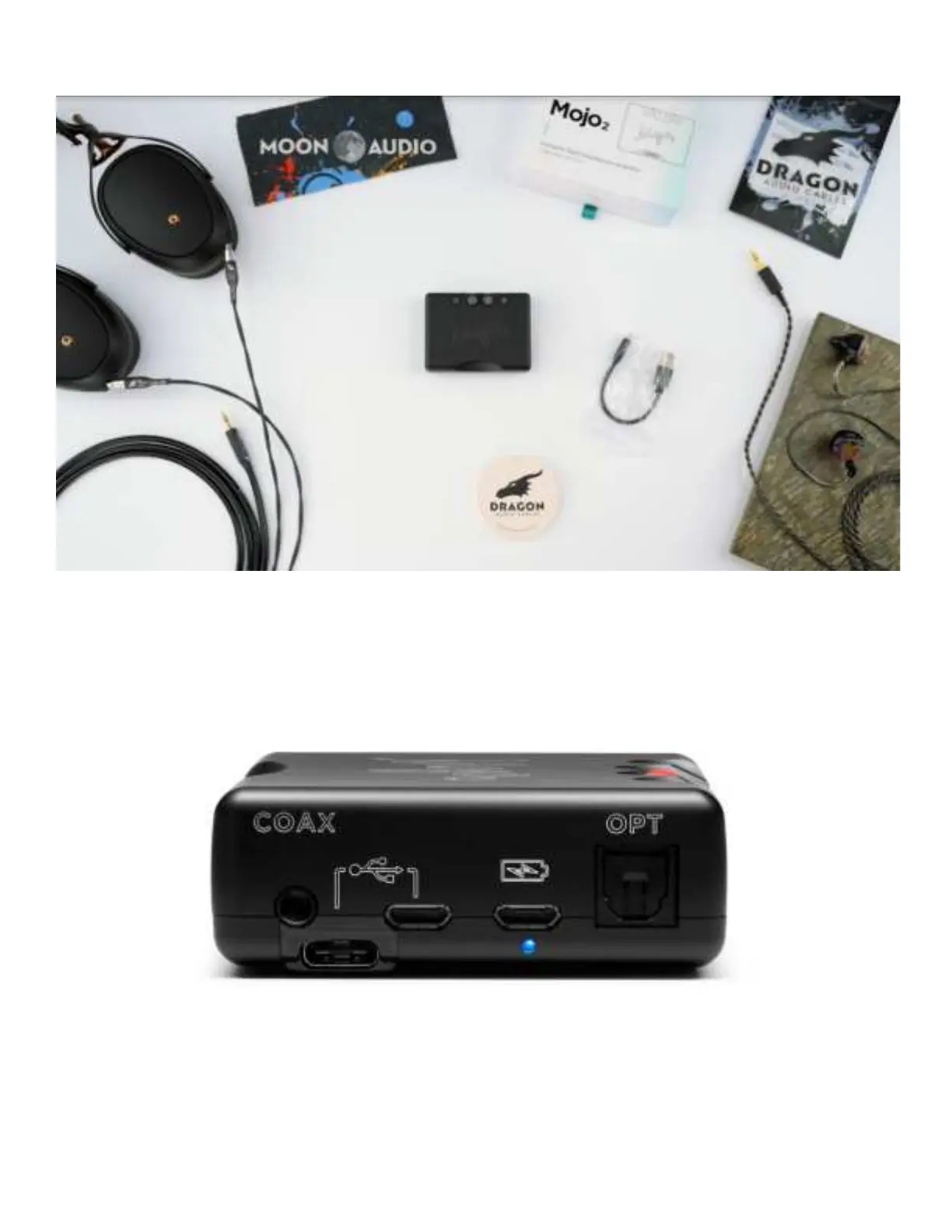

Unboxing the Mojo 2
In the box:
– The Mojo 2
– A MicroUSB to USB type A cable
Before Powering On
Before using the Mojo 2, charge it fully via the MicroUSB port that has the battery icon over it.
When the Mojo 2 is fully charged, the battery status light will be blue.
There is also a desktop mode that bypasses the battery for those who wish to use the unit as just a desktop DAC/ampli-
er. The battery status light will be purple when you are in this mode.

Chord MOJO 2 Specifications

General

Type	Portable DAC/Headphone Amplifier
Weight	185g
DAC Chip	Custom Xilinx Artix 7 FPGA
Inputs	USB-C, Optical, Coaxial
Outputs	3.5mm headphone jack
PCM Support	Up to 768kHz
DSD Support	DSD512
Battery Life	Up to 8 hours
