Chore-Time Chore-Tronics Model 16 User Manual

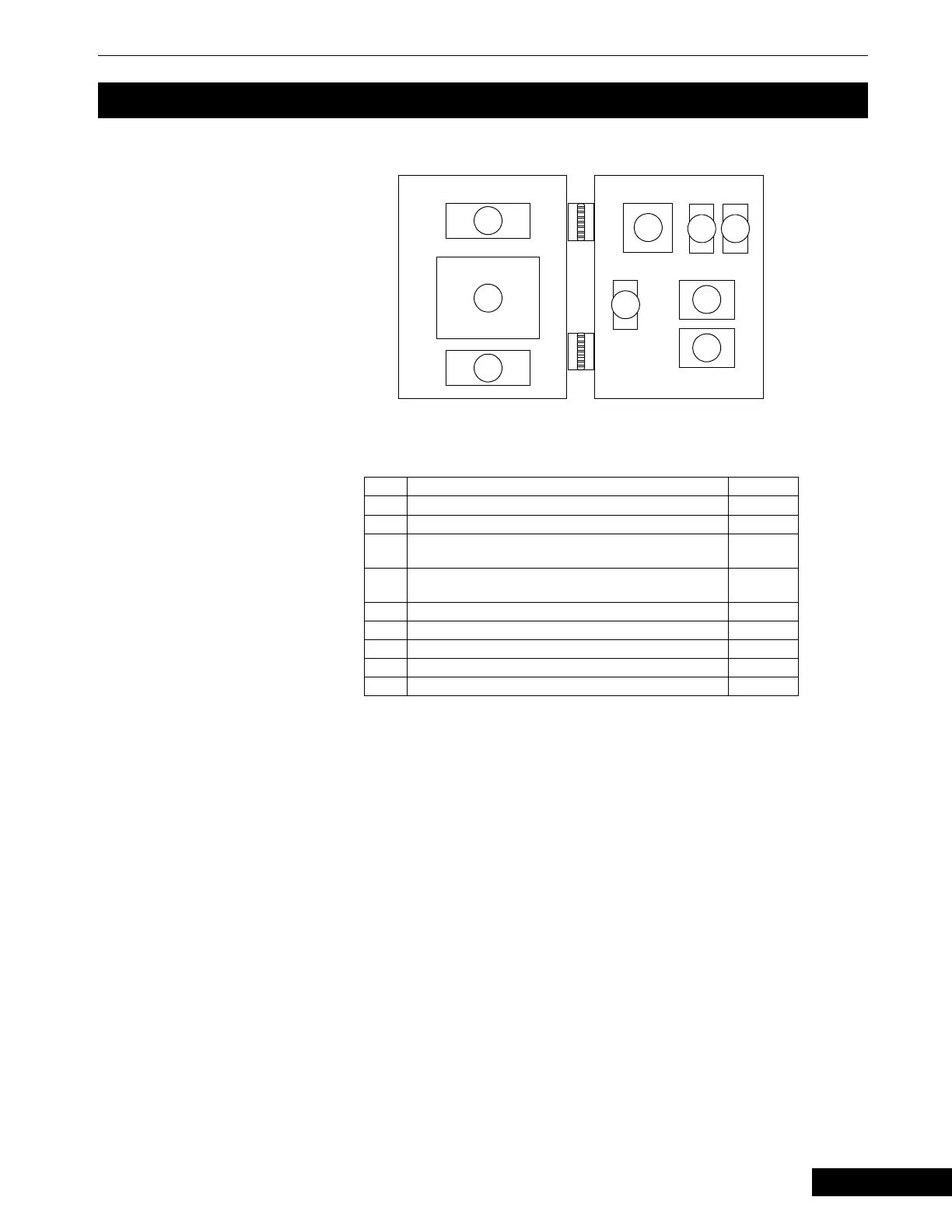

Chore-Tronics Model 16 & 8 Control Parts Listing
45
MT1554A
Parts Listin
g
Item Description Part No.
1 8x40 Display 41317
2 KDCM.1 Keyboard Display Module 41315
3 MSCM.16-1 Switch circuit Board (Model 16)
MSCM.8-2 Switch Circuit Board (Model 8)
41309
41308
4 IOCM.1-3 Control Module (Model 16)
IOCM.1-2 Control Module (Model 8)
41321
41311
5 RM.8 Relay Circuit Board (8 relays) 41306
6 *RM.8 Relay Circuit Board (Model 16) 41306
7 Static Pressure Sensor (optional) 41320
8 Variable Speed #1 (optional) 40729
9 Variable Speed #2 (optional) 40729
1
2
4
8
5
MT1554-03 5/98
Opened Control Box Lid Control Box Base
3
9
*6
7
9/9/98

Chore-Time Chore-Tronics Model 16 Specifications

General

Brand	Chore-Time
Model	Chore-Tronics Model 16
Category	Control Unit
Language	English
