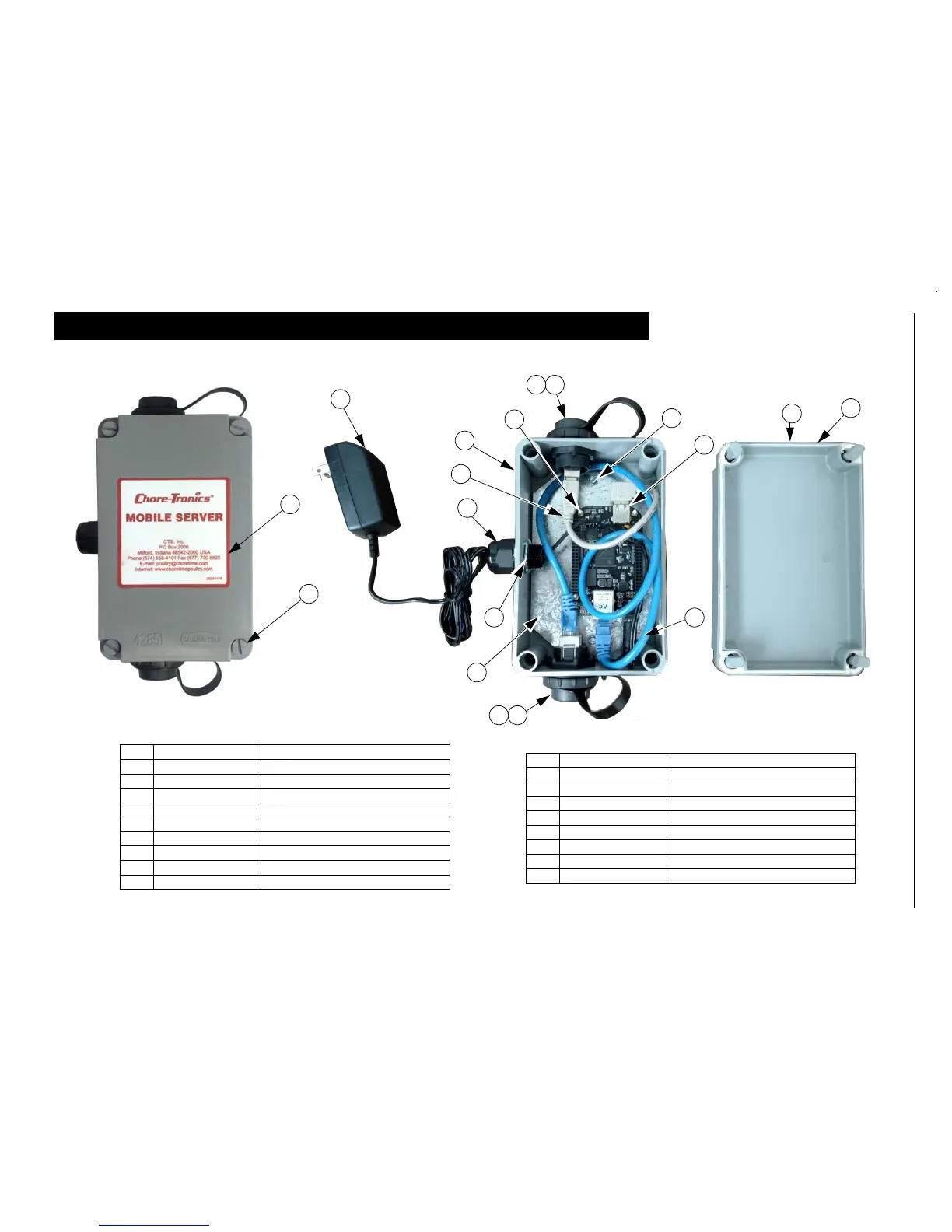

Parts Listing Chore-Tronics® Mobile Server
13
MT2471A
Parts Listing
1
Item Part No Description
1 42853-5 Mobile Server Box
2 42851 Short 4 x 6 Box Lid
3 42854 Gasket
4 42849 Short Screw
5 56074 Mobil Server Plate
6 13019 #8 x .375 Screw
7 56073 Mobile Server Board
8 56243 .5" Lock in Place Standoff
9 51873 USB CT3 External Port
Item Part No Description
10 51852 USB CT3 External Port Cap
11 55397 Ethernet External Port
12 23779 Liquid Tight 1/2" Connector
13 3357 1/2" Conduit Lock Nut
14 54364 24" Ethernet Cable
15 56216 Chore-Tronics Mobile Server USB Cable
16 2529-1178 Mobile Server Decal
17 51297 5V Power Supply
2
3
16
4
5
6
7
8
109
119
12
13 14
15
17
