5.4. Visual components of the LDplus control
system

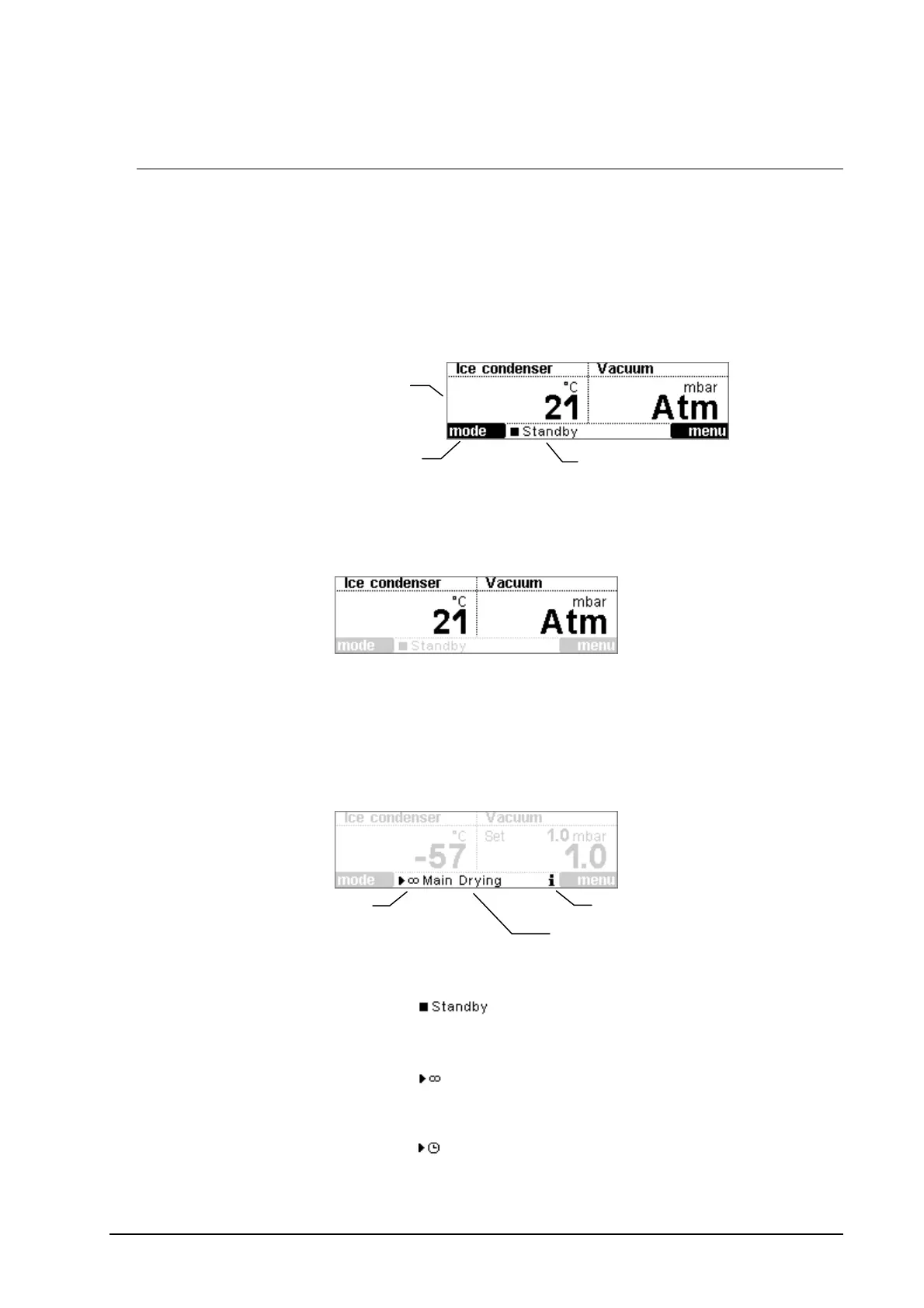

The LC display is divided into the three following areas:
1. Main window
2. Status bar
3. Softkey function
5.4.1. Main window
The main window shows set values and actual values, menus and
process-relevant information.
5.4.2. Status bar
The status bar shows the current operating mode, the active
phase and other relevant information. The status bar is visible at
all times.
Structure of the status bar:
5.4.2.1. Operating mode
•
The freeze dryer is in the standby mode. All aggregates
are switched off.
•
The freeze dryer is in the run mode. The timer is
deactivated.
•
The freeze dryer is in the run mode. The timer is
activated.
Status bar
Softke
y
function
Main windo
w
Operating mode
A
ctive phase
Info icon
