The TPMS consists of the following components:
• Receiver Module
• Four Tire Pressure Monitoring Sensors
• Various Tire Pressure Monitoring System messages,
which display in the Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID).
• Tire Pressure Monitoring Telltale Light
Tire Pressure Monitoring Low Pressure Warnings
The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster and a chime
will sound when tire pressure is low in one or more of the

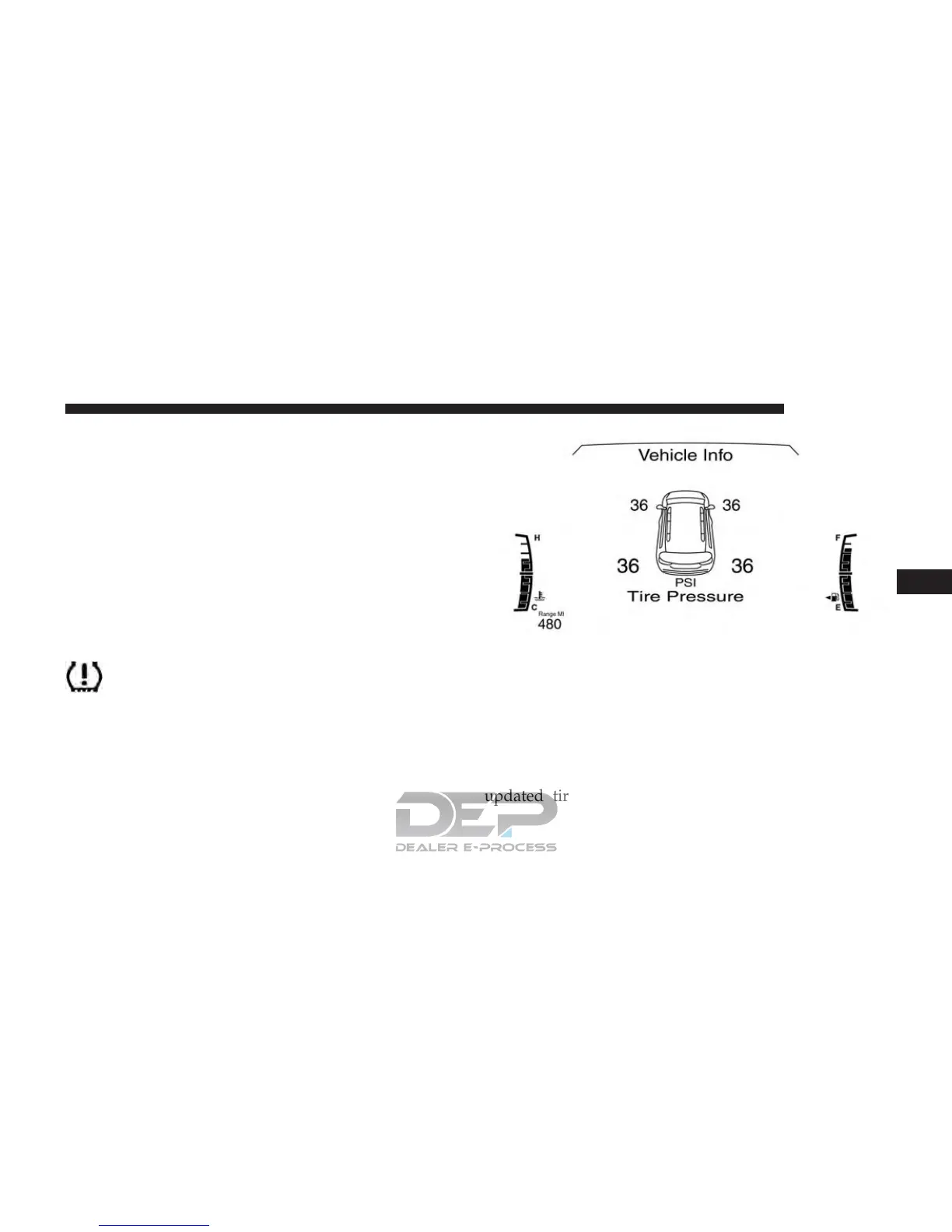

four active road tires. In addition, the EVIC/DID will
display an ⬙Inflate to XX⬙ message and a graphic showing
the pressure values of each tire with the low tire pressure
values in a different color.
Should this occur, you should stop as soon as possible
and inflate the tires with low pressure (those in a
different color in the EVIC/DID graphic) to the vehicle’s
recommended cold placard pressure value as shown in
the ⬙Inflate to XX⬙ message. Once the system receives the
updated tire pressures, the system will automatically
Tire Pressure Monitoring System
5
SAFETY 299
