Fuse Location
The fuses are grouped into four controllers located in the
engine compartment and under the instrument panel.
Underhood Fuses
The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, mini-fuses, micro-fuses, circuit breakers and
relays. A label that identifies each component is printed
on the inside of the cover.
Cavity Cartridge Fuse Blade Fuse Description
F06 – – Not Used
F07 – 25 Amp Clear Ignition Coil/Fuel Injector
F08 – – Not Used
F09 – 25 Amp Clear Amplifier/ANC

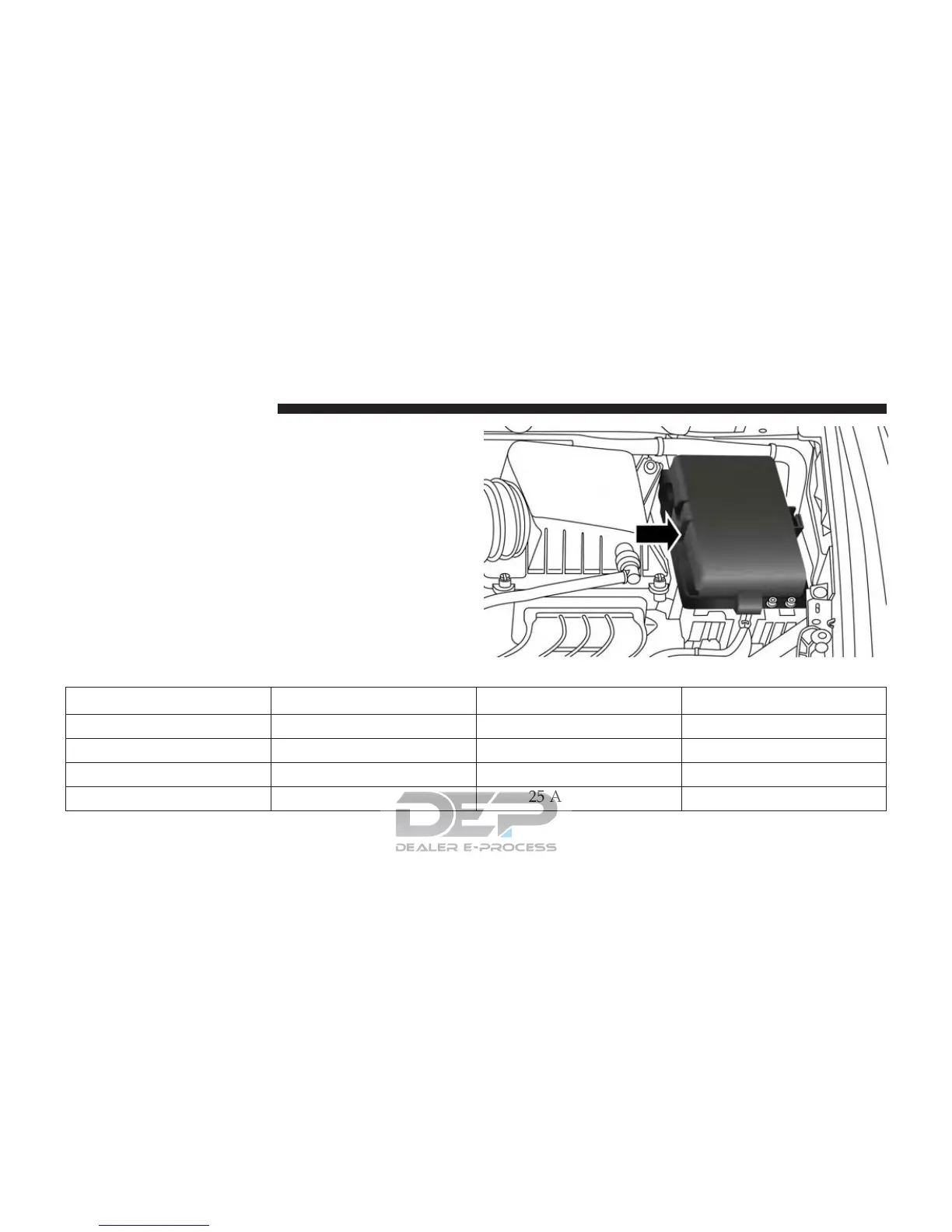

Power Distribution Center
