4. Install front side marker lamp socket in lamp assembly
and rotate 1/4 turn clockwise to lock into place.
5. Position the inner wheel liner in place and install the
three fasteners.
Front Fog Lamp — Halogen
1. Remove fasteners from inner wheel liner and carefully
peel back liner for access.
2. Reach through the front fascia to fog lamp housing to
access the bulb.
3. Rotate the front fog lamp socket counterclockwise,
and remove the bulb and socket assembly from the
front fog lamp housing.
4. Pull the bulb out of the socket and insert the replace-
ment bulb.

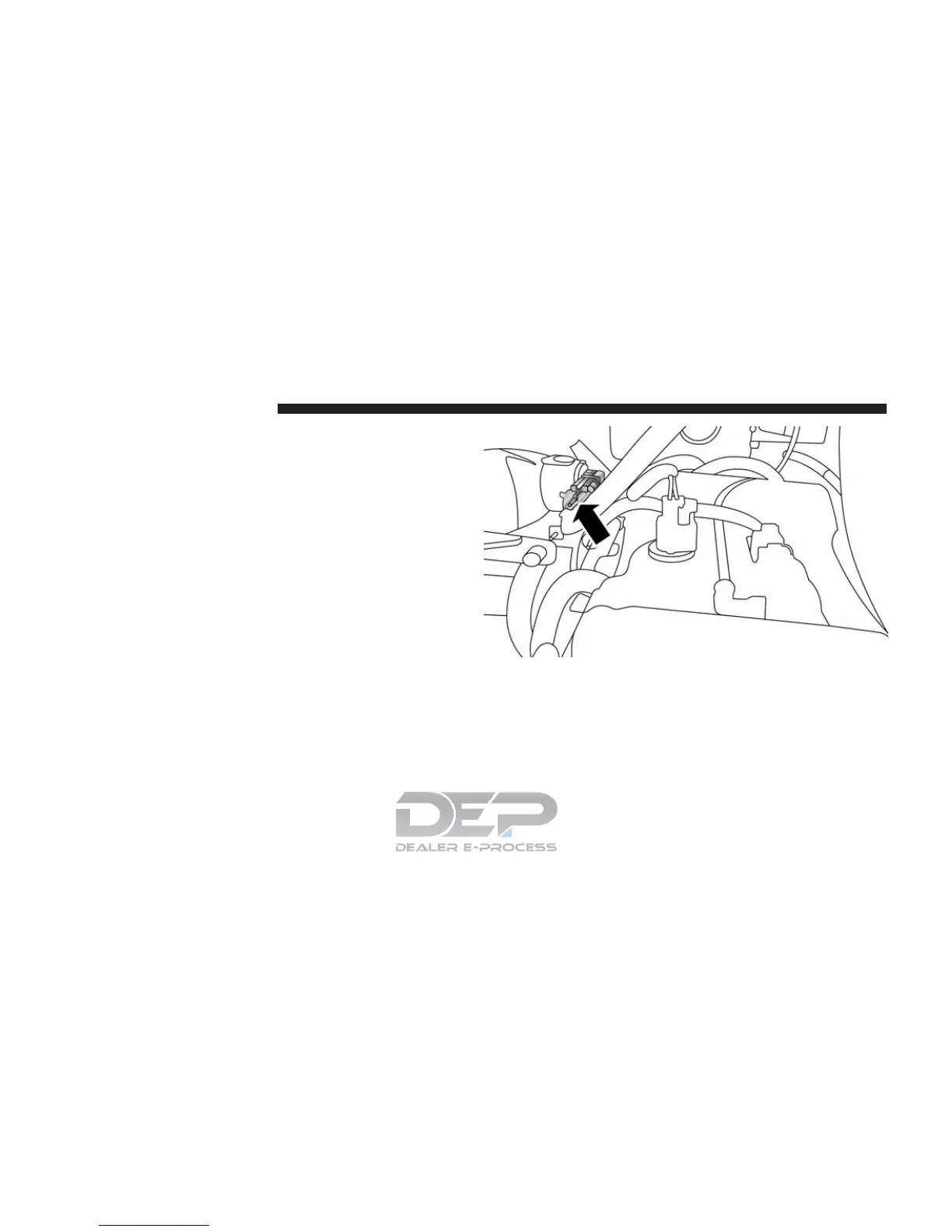

Front Fog Lamp Socket
544 IN CASE OF EMERGENCY
