(11) Remove thermal valve (Fig. 129) from transfer
plate.
(12) Remove valve body check balls. Note their
location for assembly ease (Fig. 130).
(13) Remove 2/4 accumulator assembly as shown
in (Fig. 131).
(14) Remove dual retainer plate from valve body.
Use special tool 6301 to remove plate (Fig. 132).

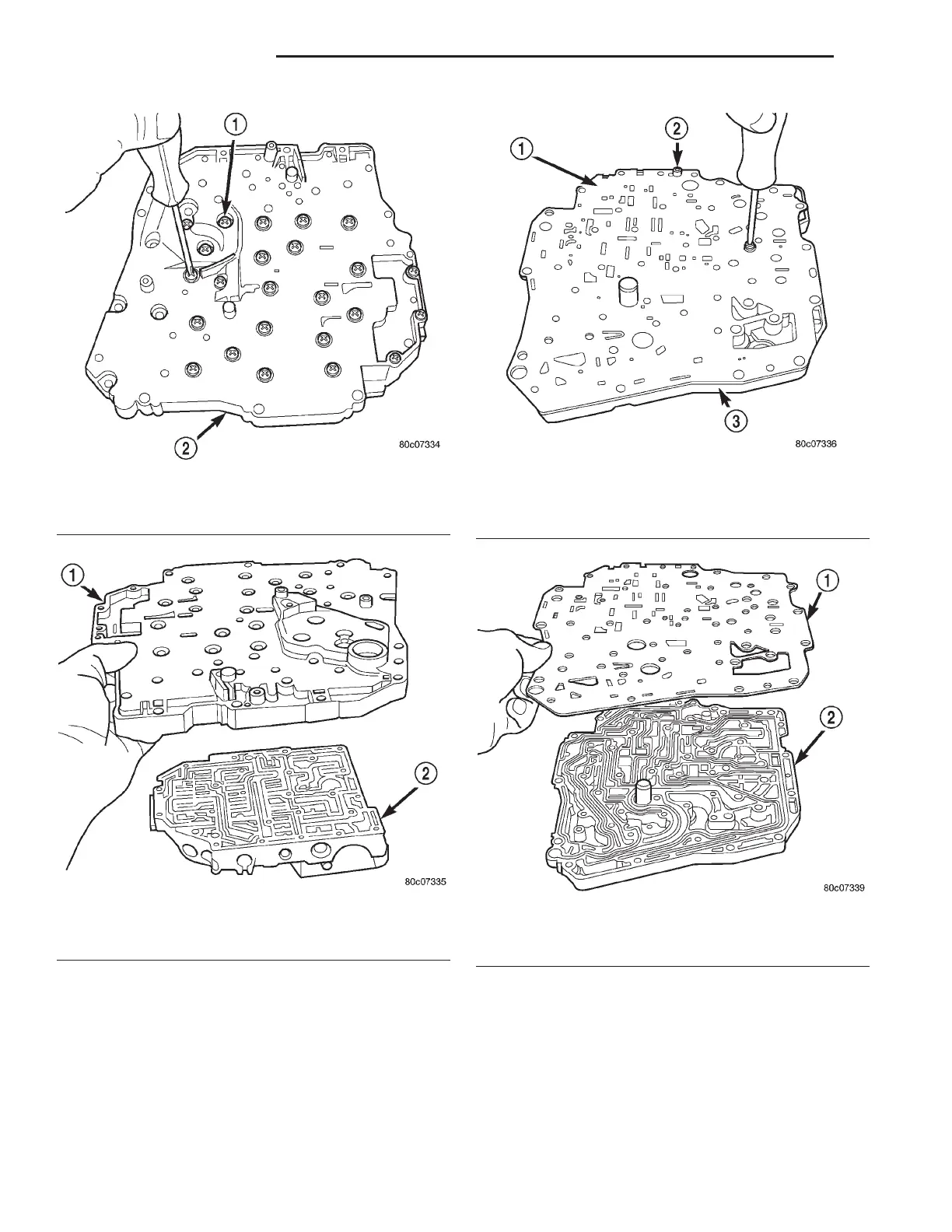

Fig. 124 Transfer Plate-to-Valve Body Screws
1 – SCREW (24)
2 – TRANSFER PLATE
Fig. 125 Transfer Plate and Valve Body
1 – TRANSFER PLATE
2 – VALVE BODY
Fig. 126 Separator Plate-to-Transfer Plate Screws
1 – SEPARATOR PLATE
2 – SCREW (2)
3 – TRANSFER PLATE
Fig. 127 Separator Plate
1 – SEPARATOR PLATE
2 – TRANSFER PLATE
