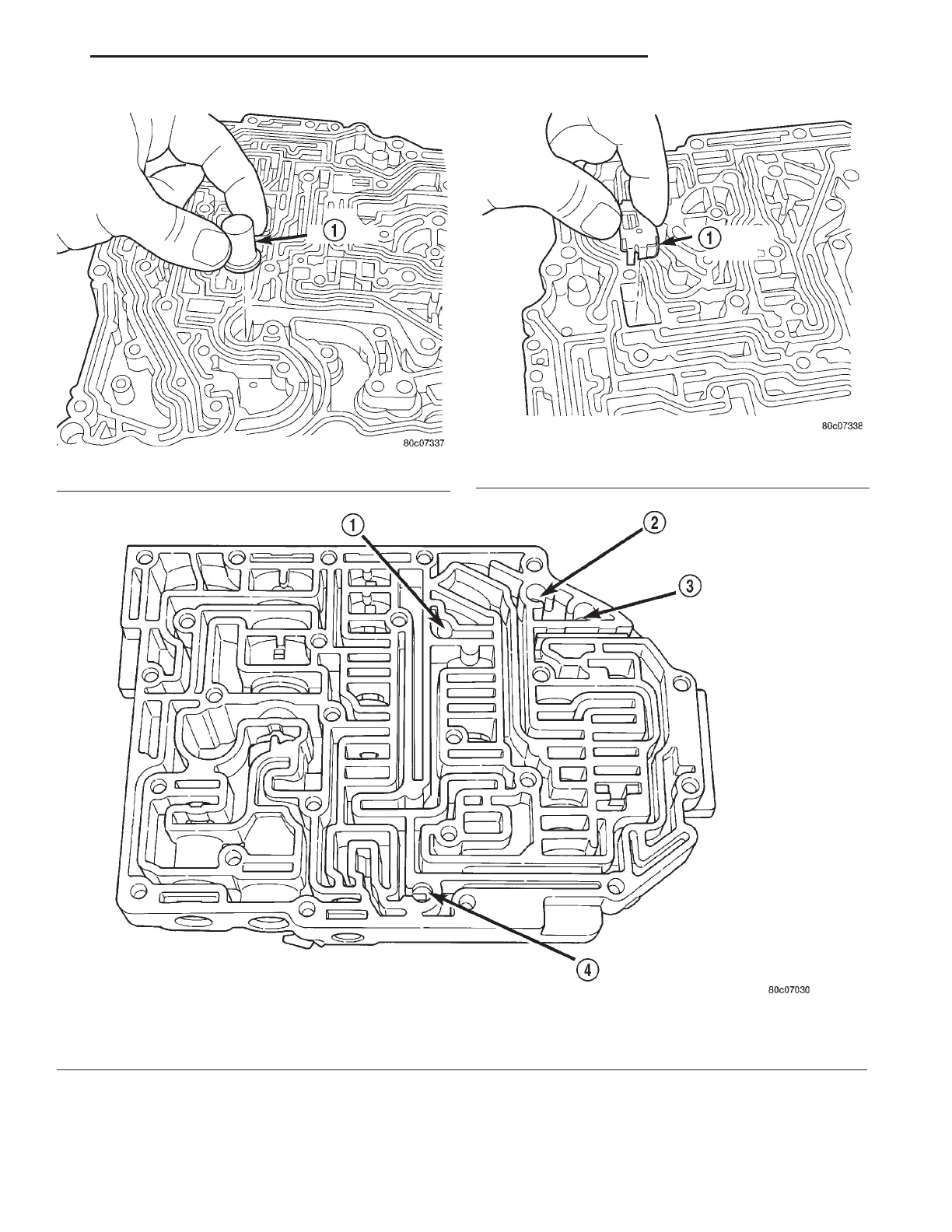

Fig. 129 Thermal Valve
1 – THERMAL VALVE
Fig. 128 Oil Screen
1 – OIL SCREEN
Fig. 130 Ball Check Location
1 – (#4) BALL CHECK LOCATION
2 – (#2) BALL CHECK LOCATION
3 – (#5) BALL CHECK LOCATION
4 – (#3) BALL CHECK LOCATION
LH 42LE TRANSAXLE 21 - 59
DISASSEMBLY AND ASSEMBLY (Continued)
