NOTE: For valve body recondition procedure, refer
to Valve Body in this section.

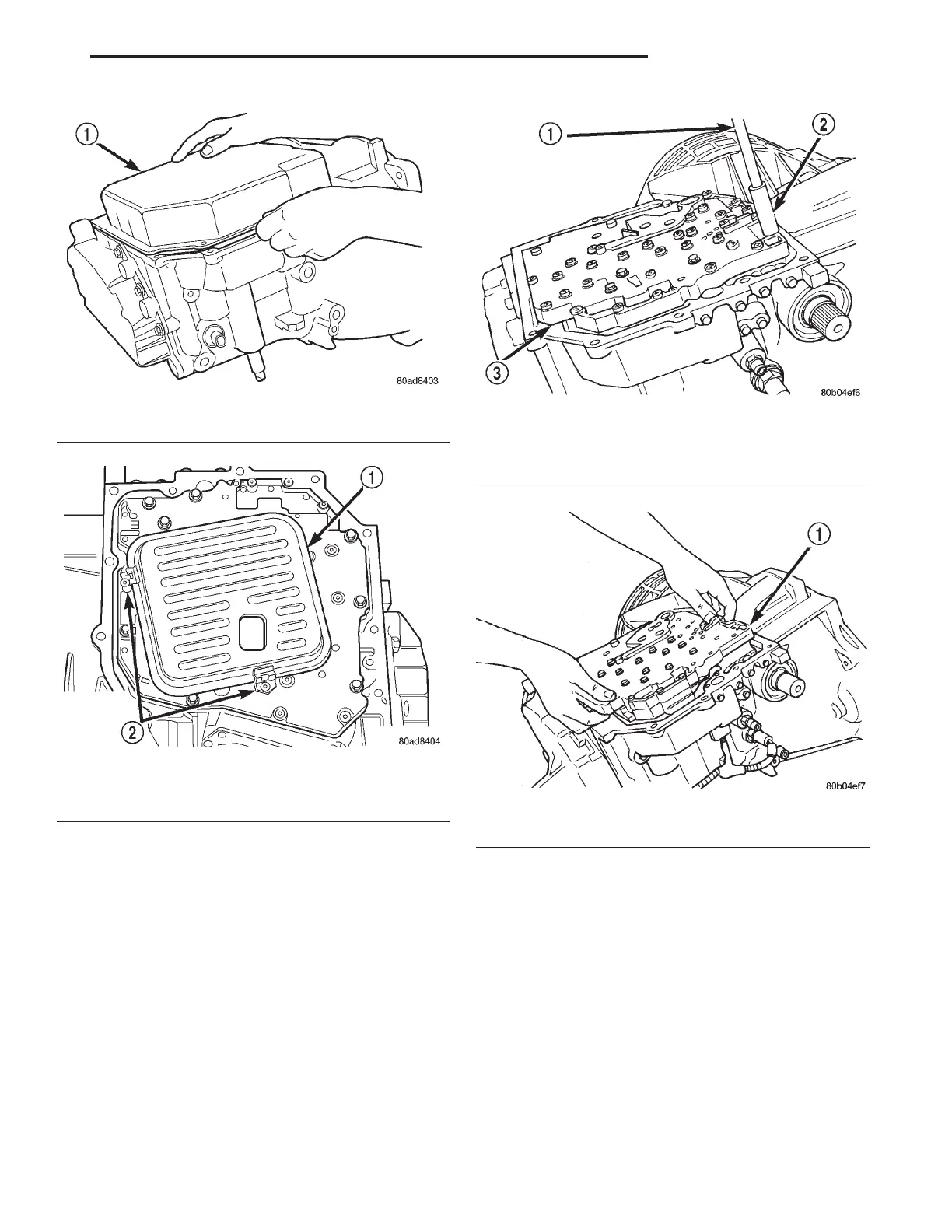

Fig. 157 Remove Transaxle Oil Pan
1 – TRANSAXLE OIL PAN
Fig. 158 Remove Transaxle Oil Filter
1 – TRANSAXLE FILTER
2 – FILTER RETAINING CLIPS
Fig. 159 Remove Valve Body Bolts (17)
1 – EXTENSION
2 – SOCKET
3 – VALVE BODY
Fig. 160 Remove Valve Body From Transaxle
1 – VALVE BODY
LH 42LE TRANSAXLE 21 - 67
DISASSEMBLY AND ASSEMBLY (Continued)
