Chrysler Concorde - Page 1243

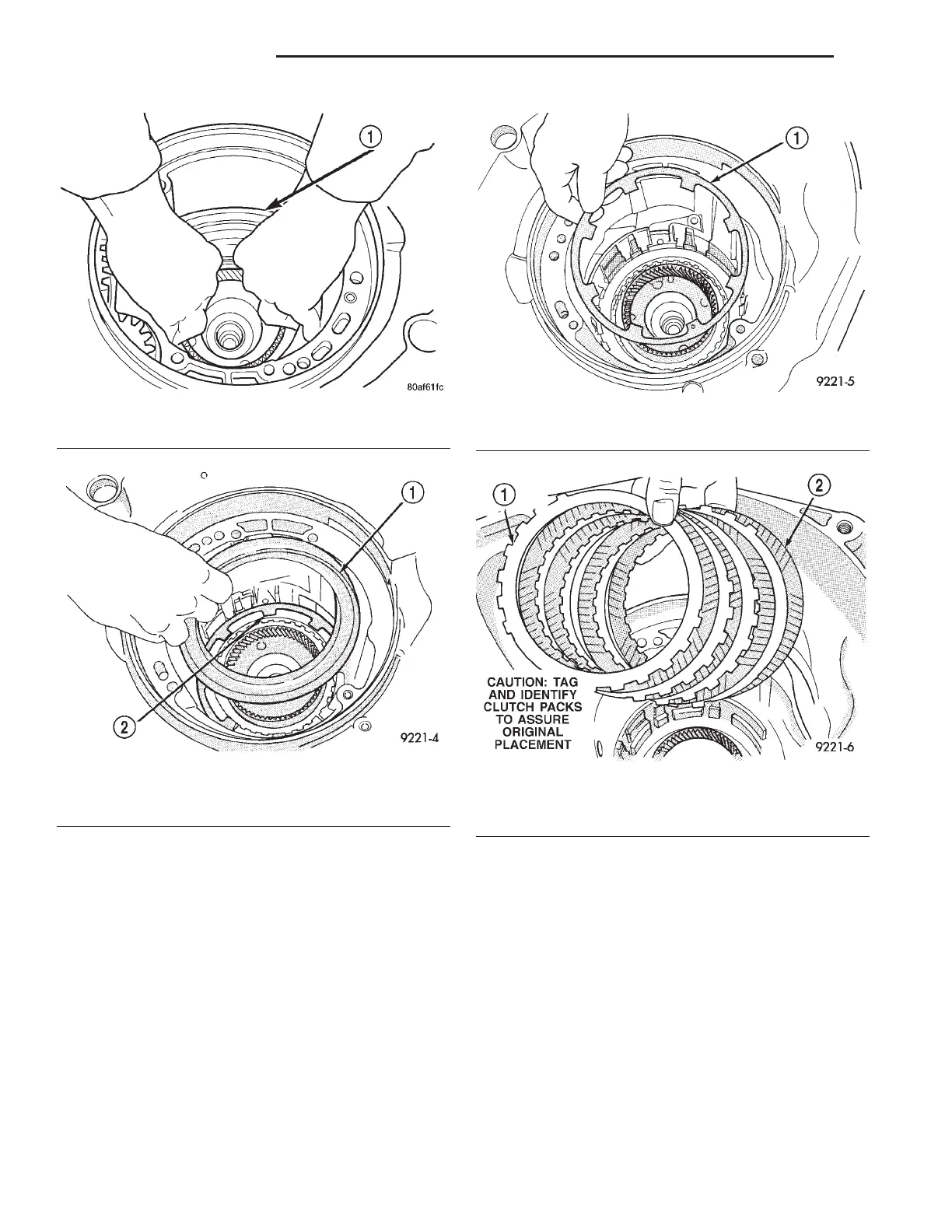

Fig. 185 Remove 2/4 Clutch Retainer
1 – 2/4 CLUTCH RETAINER
Fig. 186 2/4 Clutch Retainer
1 – 24 CLUTCH RETAINER
2 – 24 CLUTCH RETURN SPRING
Fig. 187 Remove 2/4 Clutch Return Spring
1 – 24 CLUTCH RETURN SPRING
Fig. 188 Remove 2/4 Clutch Pack
1 – CLUTCH PLATE (4)
2 – CLUTCH DISC (4)
21 - 74 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
