Chrysler Concorde - Page 1245

CAUTION: Be sure to reinstall the chain snubber
and chain oiler when reassembling.

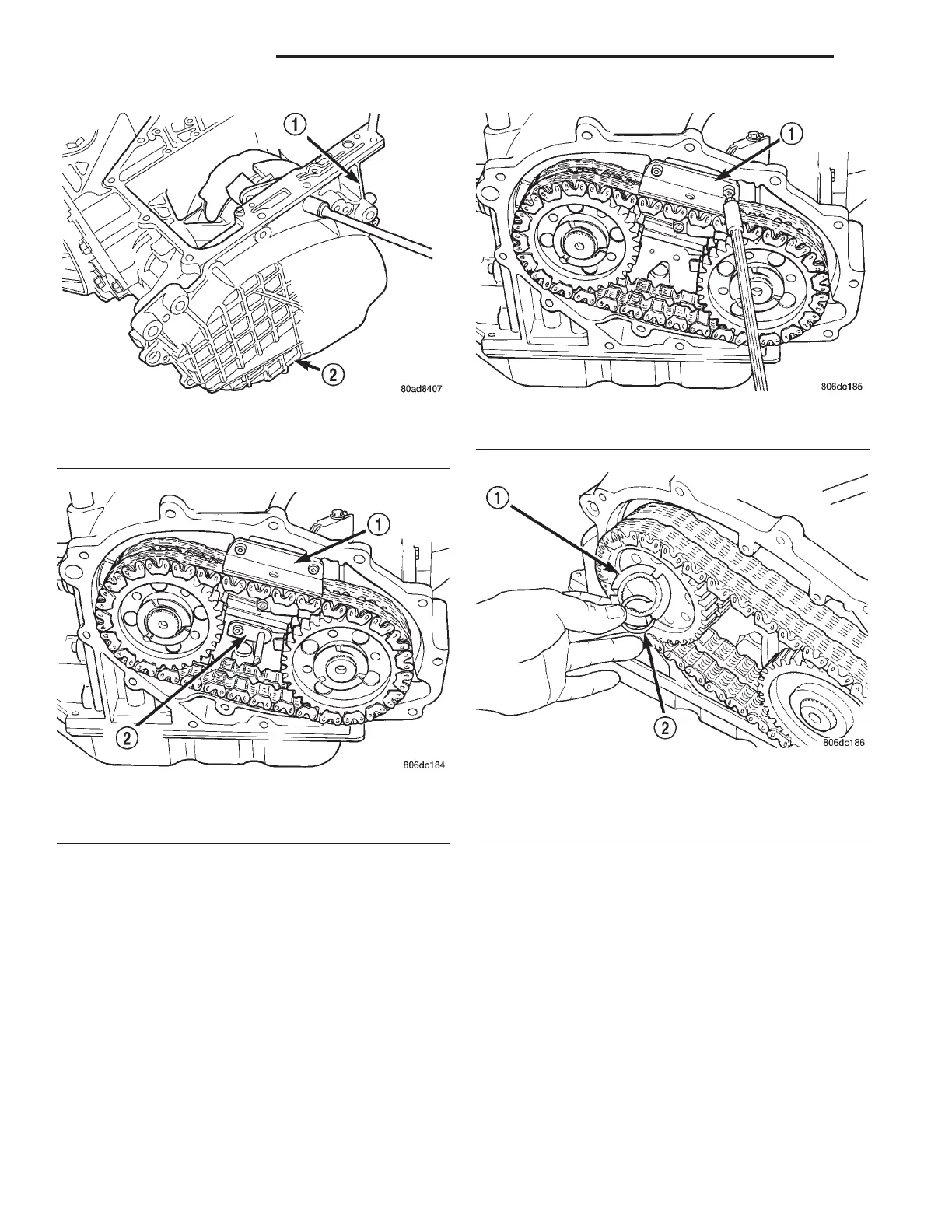

Fig. 193 Remove Chain Cover
1 – TRANSAXLE CASE
2 – CHAIN COVER
Fig. 194 Remove Chain Oiler
1 – CHAIN SNUBBER
2 – CHAIN OILER
Fig. 195 Remove Chain Snubber
1 – CHAIN SNUBBER
Fig. 196 Remove Output Shaft Sprocket Snap Ring
and Wave Washer
1 – WAVE WASHER
2 – SNAP RING
21 - 76 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
