Use special tool 6597 and handle C-4171 and
C-4171-2 to press rear output shaft bearing cup rear-
ward (Fig. 208).

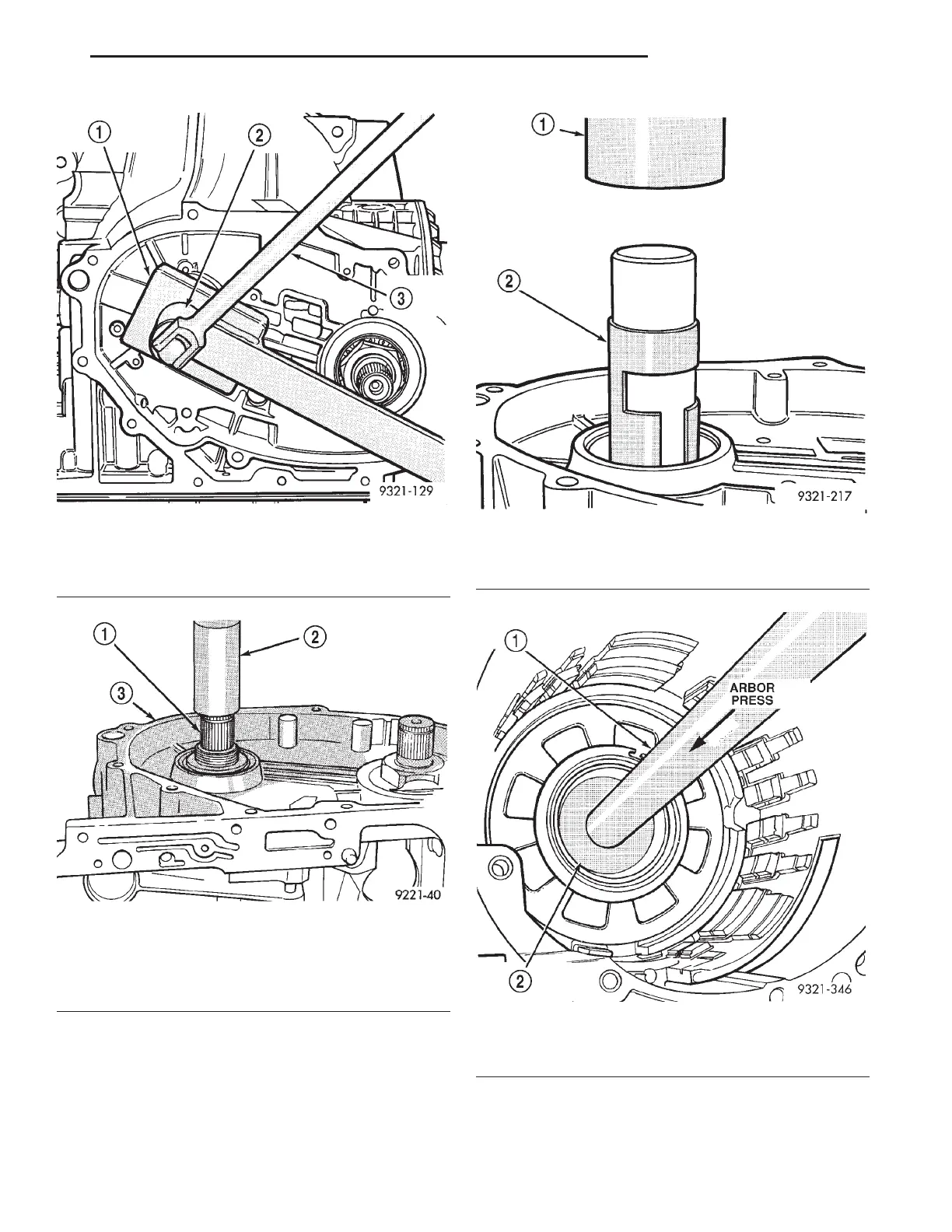

Fig. 205 Remove Output Shaft Nut
1 – SPECIAL TOOL 6497
2 – SPECIAL TOOL 6498
3 – BREAKER BAR
Fig. 206 Use Arbor Press to Remove Output Shaft
from Case
1 – OUTPUT SHAFT
2 – ARBOR PRESS
3 – TRANSAXLE CASE
Fig. 207 Remove Front Bearing Cup
1 – ARBOR PRESS
2 – SPECIAL TOOL 6596
Fig. 208 Remove Rear Bearing Cup
1 – SPECIAL TOOL 4171 AND 4171–2
2 – SPECIAL TOOL 6597
LH 42LE TRANSAXLE 21 - 79
DISASSEMBLY AND ASSEMBLY (Continued)
