(19) Take average of four measurements and com-
pare with UD clutch pack clearance specification.
Underdrive clutch pack clearance must be 0.94-
1.50 mm (0.037-0.059 in.).
(20) If necessary, select the proper reaction plate
to achieve specifications:
(21) Install the OD clutch pack (four fibers/four
steels) (Fig. 274).
(22) Install OD reaction plate waved snap ring
(Fig. 275).
(23) Install the OD/Reverse reaction plate with
large step down (towards OD clutch pack) (Fig. 276).
(24) Install OD reaction plate flat snap ring (Fig.
277).

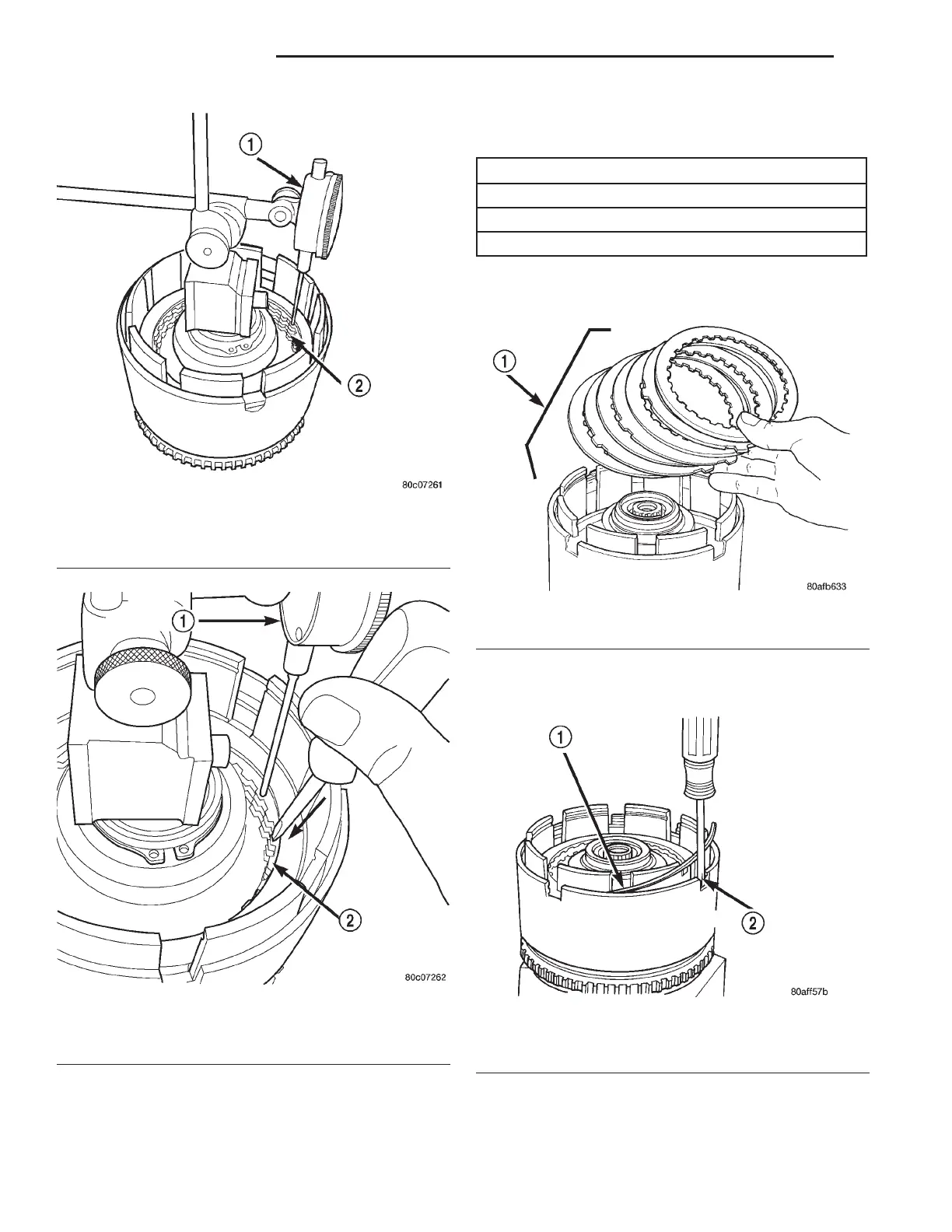

Fig. 272 Set Up Dial Indicator to Measure UD Clutch
Clearance
1 – DIAL INDICATOR
2 – UNDERDRIVE CLUTCH
Fig. 273 Press Down on UD Clutch Pack and Zero
Dial Indicator
1 – DIAL INDICATOR
2 – UNDERDRIVE CLUTCH
UNDERDRIVE REACTION PLATE THICKNESS
4659939AB 5.837-5.937 mm (0.230-0.234 in.)
4659940AB 6.147-6.248 mm (0.242-0.246 in.)
4659941AB 6.457-6.557 mm (0.254-0.258 in.)
Fig. 274 Install OD Clutch Pack
1 – OVERDRIVE CLUTCH PACK
Fig. 275 Install Waved Snap Ring
1 – OVERDRIVE REACTION PLATE WAVED SNAP RING
2 – SCREWDRIVER
21 - 96 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
