Press down clutch pack with finger and zero dial
indicator. Low/Reverse clutch pack clearance is
0.86 to 1.52 (.034 to.060 inch).
Select the proper low/reverse reaction plate to
achieve specifications:
NOTE: When installing the 2-4 clutch plates and
discs, the orientation should be alternated so the
pilot pads of adjacent plates do not align, refer to
(Fig. 330).

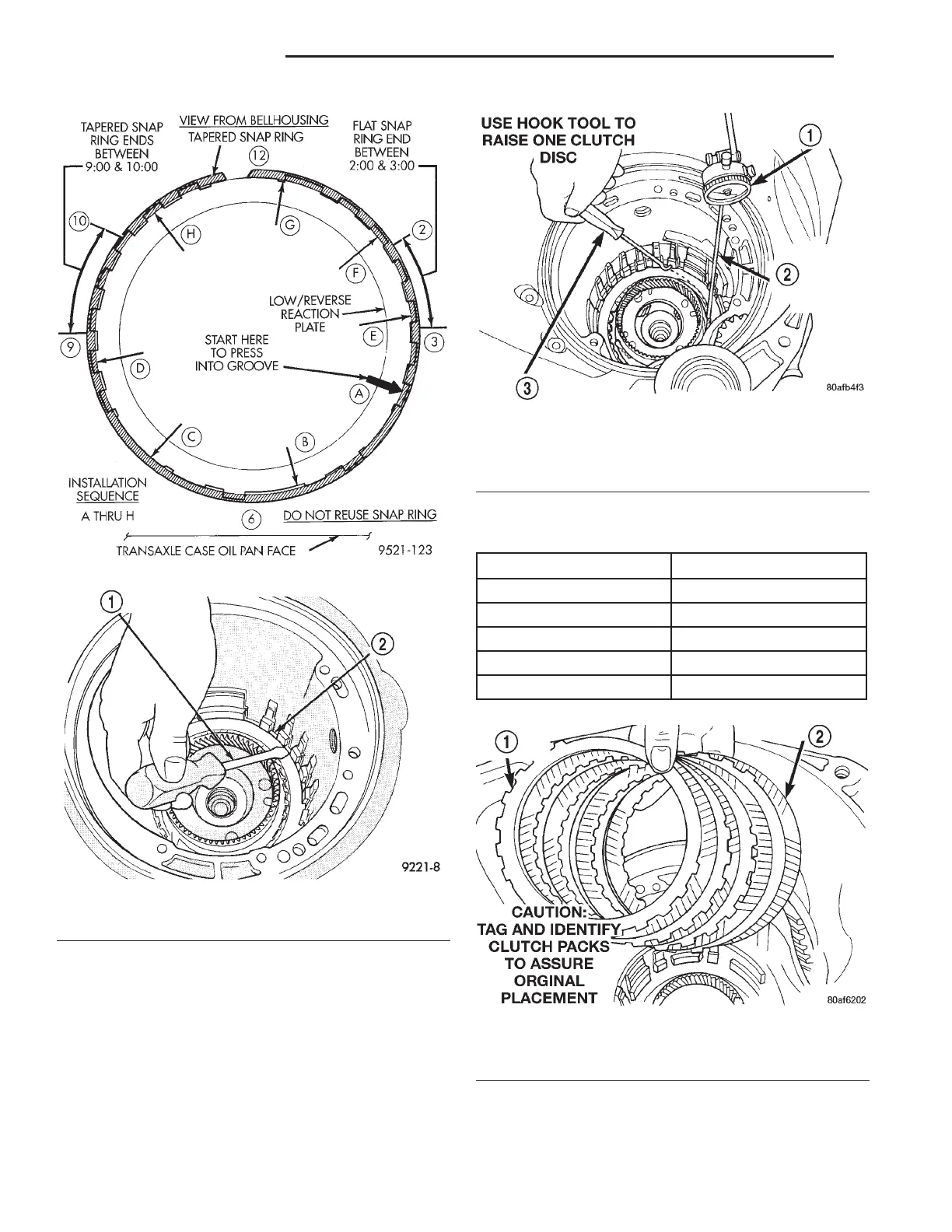

Fig. 326 Tapered Snap Ring Instructions
Fig. 327 Snap Ring Installed
1 – SCREWDRIVER
2 – TAPERED SNAP RING (INSTALL AS SHOWN)
Fig. 328 Check Low/Reverse Clutch Clearance
1 – DIAL INDICATOR
2 – DIAL INDICATOR TIP TOOL 6268
3 – HOOK TOOL
LOW/REVERSE REACTION PLATE CHART
PART NUMBER THICKNESS
4799846AA 5.88 mm (.232 in.)
4799847AA 6.14 mm (.242 in.)
4799848AA 6.40 mm (.252 in.)
4799849AA 6.66 mm (.262 in.)
4799855AA 6.92 mm (.273 in.)
Fig. 329 Install 2/4 Clutch Pack
1 – CLUTCH PLATE (4)
2 – CLUTCH DISC (4)
21 - 110 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
