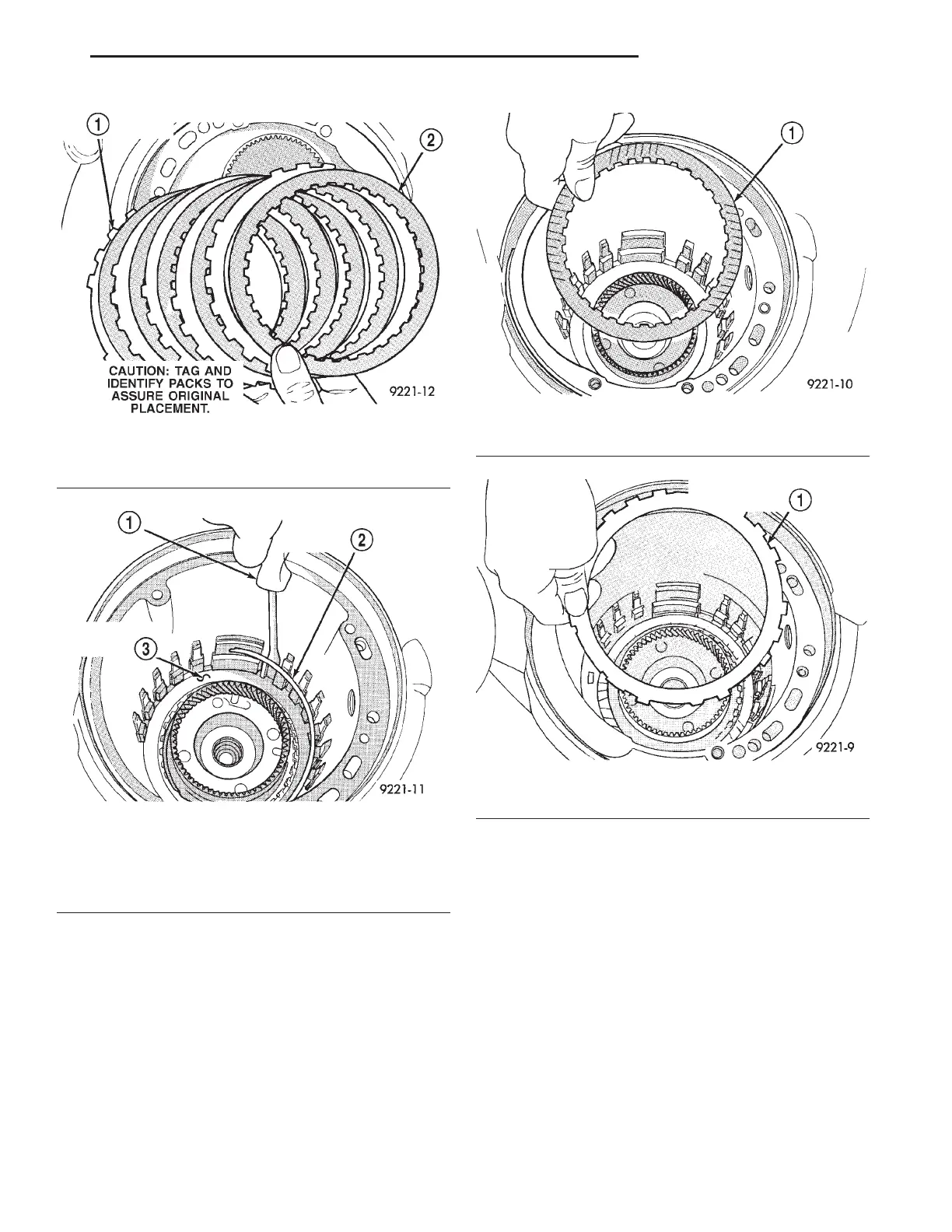

Fig. 322 Install Low/Reverse Clutch Pack
1 – CLUTCH PLATES (5)
2 – CLUTCH DISCS (5)
Fig. 323 Install Low/Reverse Reaction Plate Snap
Ring
1 – SCREWDRIVER
2 – LOW/REVERSE REACTION PLATE FLAT SNAP RING
3 – DO NOT SCRATCH CLUTCH PLATE
Fig. 324 Install One Disc
1 – ONE DISC FROM LOW/REVERSE CLUTCH
Fig. 325 Install Low/Reverse Reaction Plate
1 – LOW/REVERSE REACTION PLATE (FLAT SIDE UP)
LH 42LE TRANSAXLE 21 - 109
DISASSEMBLY AND ASSEMBLY (Continued)
