Press down clutch pack with finger and zero dial
indicator. The 2/4 clutch pack clearance is 0.76 to
2.64 mm (.030 to.104 inch). If not within specifica-
tions, the clutch is not assembled properly. There is
no adjustment for the 2/4 clutch clearance.
The number 7 needle bearing has three antirever-
sal tabs and is common with the number 5 and num-
ber 2 position. The orientation should allow the
bearing to seat flat against the rear sun gear (Fig.
336). A small amount of petrolatum can be used to
hold the bearing to the rear sun gear.

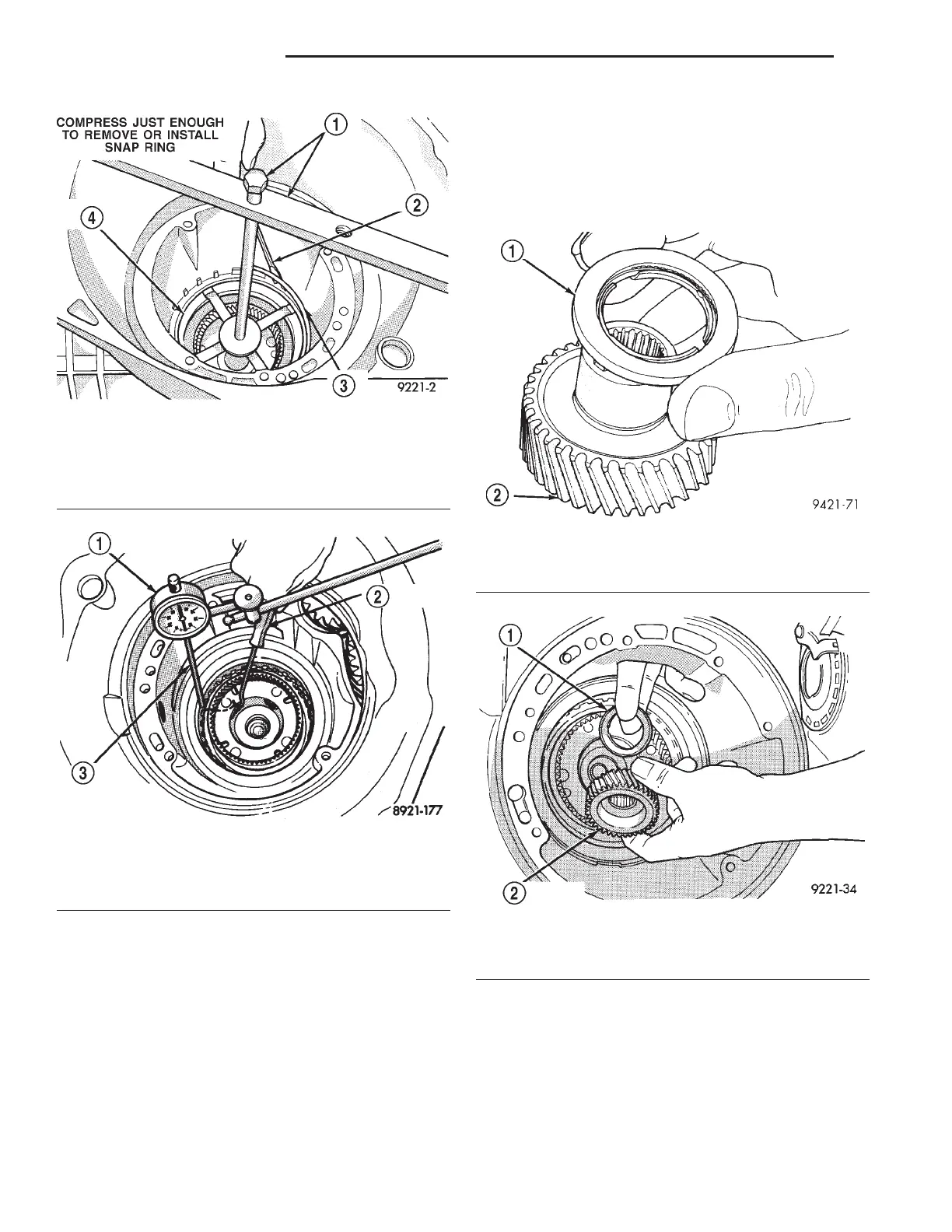

Fig. 334 Install 2/4 Clutch Retainer Snap Ring
1 – TOOL 5058
2 – SCREWDRIVER
3 – SNAP RING
4 – 24 CLUTCH RETAINER
Fig. 335 Check 2/4 Clutch Clearance
1 – DIAL INDICATOR
2 – HOOK TOOL
3 – DIAL INDICATOR TIP TOOL 6268
Fig. 336 Number 7 Bearing
1 – #7 BEARING
2 – REAR SUN GEAR
Fig. 337 Install Rear Sun Gear
1 – #7 NEEDLE BEARING
2 – REAR SUN GEAR
21 - 112 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
