WARNING: WEAR SAFETY GOGGLES WHILE
GRINDING STAKE NUTS.
Using a die grinder or equivalent, grind the stakes
in the shoulder of the shaft nut as shown in (Fig.
379) and (Fig. 380). Do not grind through the trans-
fer shaft nut into the shaft. There are two stakes on
the nut.
Using a small chisel, carefully open stakes on nut
(Fig. 381)
Remove the transfer shaft nut.
CAUTION: Do not reuse old transfer shaft nut
because the removed stake weakens the nut flange.
CAUTION: The transfer shaft cannot be removed
from the case at this time.
Install special tool 6577 to remove rear transfer
bearing cup (Fig. 383).

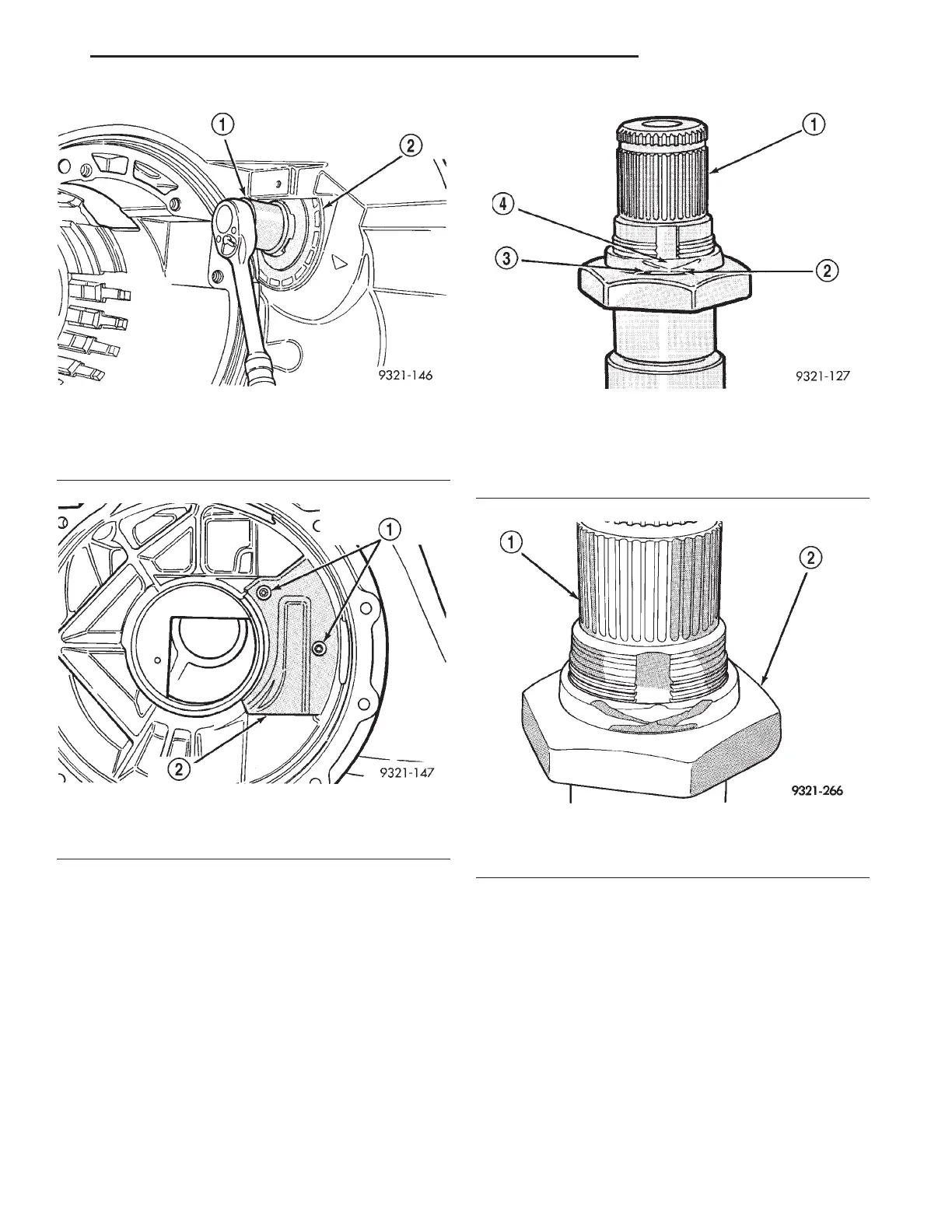

Fig. 377 Remove Inner Adjuster By Turning
Clockwise
1 – SPECIAL TOOL 6502–B
2 – INNER DIFFERENTIAL ADJUSTER
Fig. 378 Remove Differential Vent Baffle
1 – VENT BAFFLE RETAINING SCREWS
2 – VENT BAFFLE
Fig. 379 Grinding Stakes
1 – TRANSFER SHAFT
2 – GRIND HERE
3 – GRIND HERE
4 – NUT STAKE
Fig. 380 Stake Grinding Pattern
1 – TRANSFER SHAFT
2 – TRANSFER SHAFT NUT
LH 42LE TRANSAXLE 21 - 123
DISASSEMBLY AND ASSEMBLY (Continued)
