(20) Remove outer adjuster with special tool 6503
(Fig. 402).
(21) Remove old stub shaft seals. Press inner
adjuster seal out with special tool 6502B. Press outer
adjuster seal out with special tool 6558.
(22) Install new stub shaft seals in both adjusters
using special tool 6558 (Fig. 403).

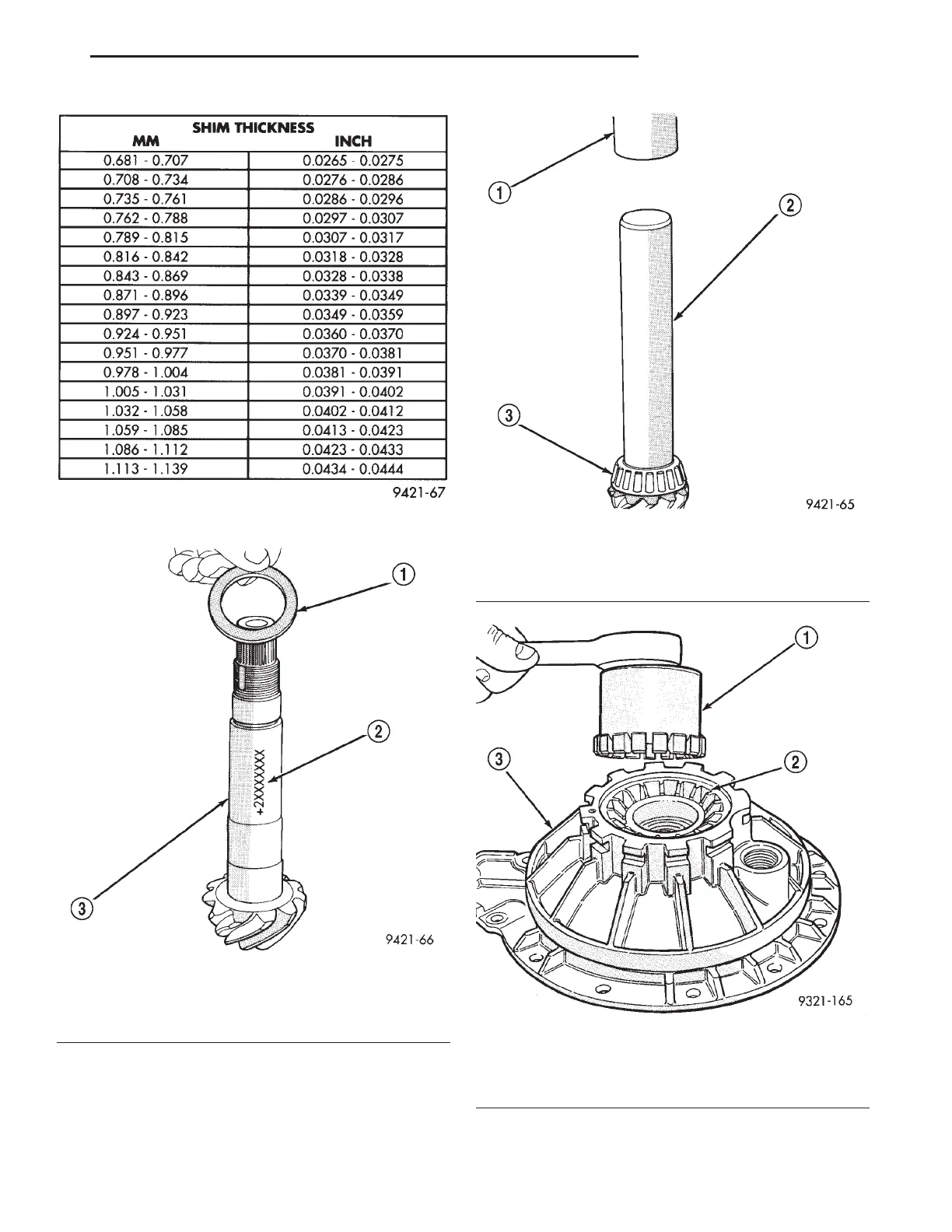

PINION HEAD SHIM CHART
Fig. 400 Shim Installation
1 – PINION DEPTH SHIM
2 – ADJUSTMENT FACTOR
3 – TRANSFER SHAFT
Fig. 401 Bearing Installation
1 – ARBOR PRESS
2 – SPECIAL TOOL 6052
3 – FRONT TRANSFER SHAFT BEARING
Fig. 402 Outer Adjuster Removal
1 – SPECIAL TOOL 6503
2 – OUTER DIFFERENTIAL ADJUSTER
3 – SIDE COVER
LH 42LE TRANSAXLE 21 - 129
DISASSEMBLY AND ASSEMBLY (Continued)
