FRONT DOOR GLASS RUN WEATHERSTRIP
REMOVAL
(1) Remove flag cover, door trim panel, water dam
as necessary, and pull cup support bracket.
(2) Remove door glass.
(3) Loosen side view mirror.
(4) Pull weatherstrip from lower front channel
above door latch.
(5) Pull run weatherstrip from window frame
channel (Fig. 37).
INSTALLATION
(1) Clean butyl material from door flange area.
(2) Place door run weatherstrip in position on win-
dow frame channel.
(3) Push door run weatherstrip into window frame
channel.
(4) Push weatherstrip into lower front channel
above door latch.
(5) Install door glass.
(6) Tighten side view mirror.
(7) Install pull cup support bracket, water shield,
door trim panel and flag trim.

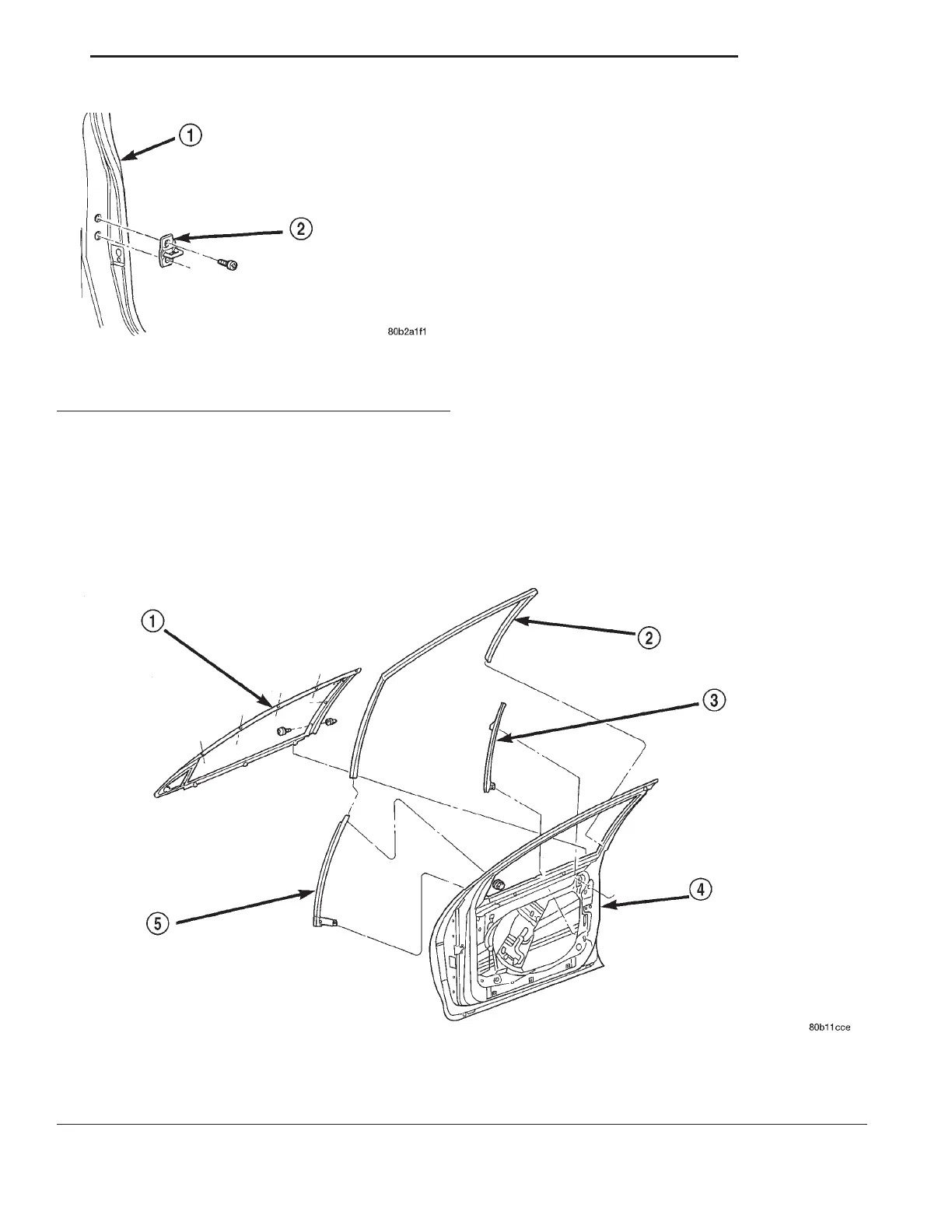

Fig. 37 Door Glass Run Weatherstrip
1 – FRONT DOOR MOLDING
2 – GLASS RUN WEATHERSTRIP
3 – REAR GLASS RUN CHANNEL
4 – FRONT DOOR
5 – FRONT GLASS RUN CHANNEL
Fig. 36 Front Door Latch Striker
1 – B-PILLAR
2 – DOOR LATCH STRIKER
LH BODY 23 - 47
