(6) Remove bolt attaching belt retractor to quarter
panel. (Fig. 77).
(7) Remove belt from vehicle.
INSTALLATION
(1) Place belt in position on vehicle.
(2) Install bolt to attach belt retractor to quarter
panel.
(3) Install the turning loop.
(4) Route anchor end of seat belt through upper
quarter trim opening. Tighten to 60 N·m (44 ft. lbs.).
(5) Install nut to attach lower seat belt anchor to
floor.
(5) Tighten nut to 60 N·m (44 ft. lbs.) torque.
(6) Install lower quarter trim panel.
(7) Install upper quarter trim panels.
(8) Install seat back and cushion.
REAR SEAT BELT BUCKLE
REMOVAL
(1) Remove rear seat cushion.
(2) Remove seat belt anchor nut (Fig. 78).
(3) Remove seat belt buckle(s) from stud on floor.
INSTALLATION
(1) Place seat belt buckle(s) anchor over stud on
floor.
(2) Install rear seat belt anchor nut. Tighten to 60
N·m (44 ft. lbs.).
(3) Install rear seat cushion.
FLOOR CONSOLE ARMREST LID
REMOVAL
(1) Open armrest lid.
(2) Remove lid attaching screws.
(3) Remove lid from console.
INSTALLATION
(1) Place lid in position.
(2) Install screws to attach lid to console.
(3) Check operation of lid.
FLOOR CONSOLE ARMREST LATCH
REMOVAL
(1) Open armrest lid.
(2) Remove latch attaching screws.
(3) Remove latch from console.
INSTALLATION
(1) Place latch in position.
(2) Install screws to attach latch to console.
(3) Check operation of latch.
FLOOR CONSOLE END CAP
REMOVAL
(1) Disengage tabs on sides at bottom (Fig. 79)
(2) Open arm rest lid and remove rear end cap
attaching screws.
(3) Remove rear bezel.

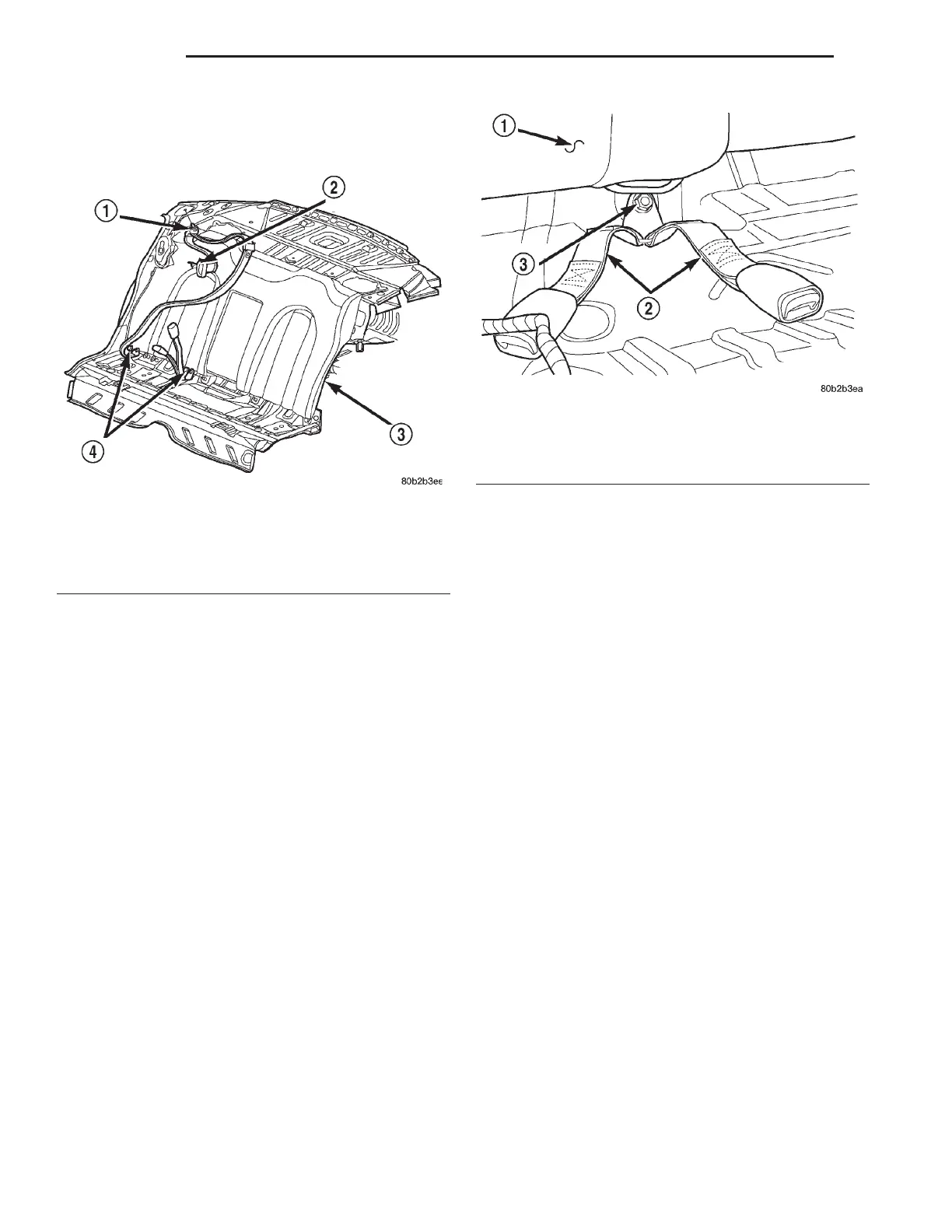

Fig. 77 Rear Seat Belt Retractor
1 – TURNING LOOP
2 – REAR SEAT BELT RETRACTOR
3 – SEAT BACK
4 – ANCHOR NUT
Fig. 78 Rear Seat Belt Buckle(s)
1 – REAR SEAT BACK
2 – SEAT BELT BUCKLES
3 – ANCHOR
23 - 66 BODY LH
REMOVAL AND INSTALLATION (Continued)
