REMOVAL
(1) If necessary, move the front seat(s) all the way
forward for access.
(2) Remove turning loop adjuster knob.
(3) Detach the turning loop cover from the upper
anchor bolt.
(4) Remove upper anchor bolt (Fig. 75).
(5) Remove B-pillar upper trim.
(6) Remove lower anchor bolt.
(7) Remove B-pillar lower trim panel.
(8) Remove the retractor anchor bolt.
(9) Remove lower B-pillar trim.
(10) Disconnect retractor wire harness connector.
(11) Remove retractor from vehicle.
INSTALLATION
(1) Position the retractor in the vehicle.
(2) Connect retractor wire harness connector.
(3) Install lower B-pillar trim.
(4) Install the retractor anchor bolt. Tighten to 60
N·m (44 ft. lbs.) torque.
(5) Route the belt webbing through the access slots
in B-pillar upper trim.
(6) Install B-pillar upper trim.
(7) Install the upper anchor bolt. Tighten to 60
N·m (44 ft. lbs.) torque.
(8) Close turning loop covers.
(9) Install turning loop adjuster knob.
FRONT SEAT CENTER OCCUPIED BELT BUCKLE
– CONCORDE/INTREPID
REMOVAL
(1) Move or remove front seat as necessary to gain
access to seat belt buckle anchor bolt.
(2) Remove bolt attaching buckle and reinforce-
ment to front seat track (Fig. 76).
(3) Remove seat belt buckle from vehicle.
INSTALLATION
(1) Place seat belt buckle in position on vehicle.
(2) Install bolt attaching buckle and reinforcement
to front seat track or floor. Tighten bolt to 60 N·m (44
ft. lbs.) torque.
(3) Install front seat, if it was removed.
REAR SEAT BELT RETRACTOR
CAUTION: Inspect the condition of the shoulder
belt and lap belt. Replace any belt that is cut,
frayed, torn, or damaged in any way. Also, replace
the shoulder belt if the retractor is either damaged
or inoperative.
REMOVAL
(1) Remove seat cushion and back.
(2) Remove upper quarter trim panel.
(3) Remove lower quarter trim panel.
(4) Remove nut attaching lower seat belt anchor to
floor.
(5) Remove turning loop bolt.

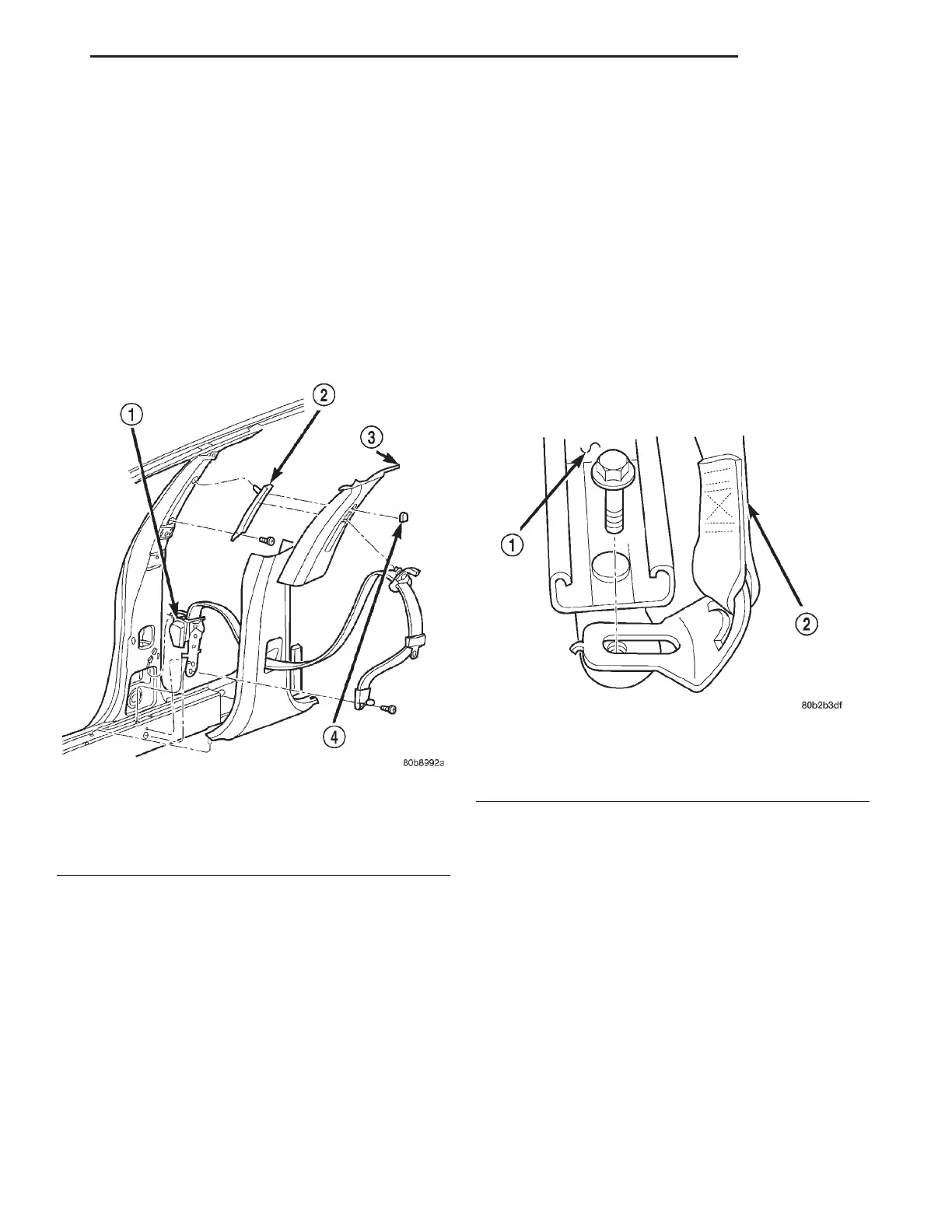

Fig. 75 Front Shoulder Belt Adjuster
1 – FRONT SEAT BELT RETRACTOR
2 – TURNING LOOP ADJUSTER
3 – B-PILLAR UPPER
4 – TURNING LOOP ADJUSTER KNOB
Fig. 76 Front Seat Center Occupied Belt Buckle –
Typical
1 – FRONT SEAT TRACK
2 – FRONT SEAT BELT BUCKLE
LH BODY 23 - 65
REMOVAL AND INSTALLATION (Continued)
