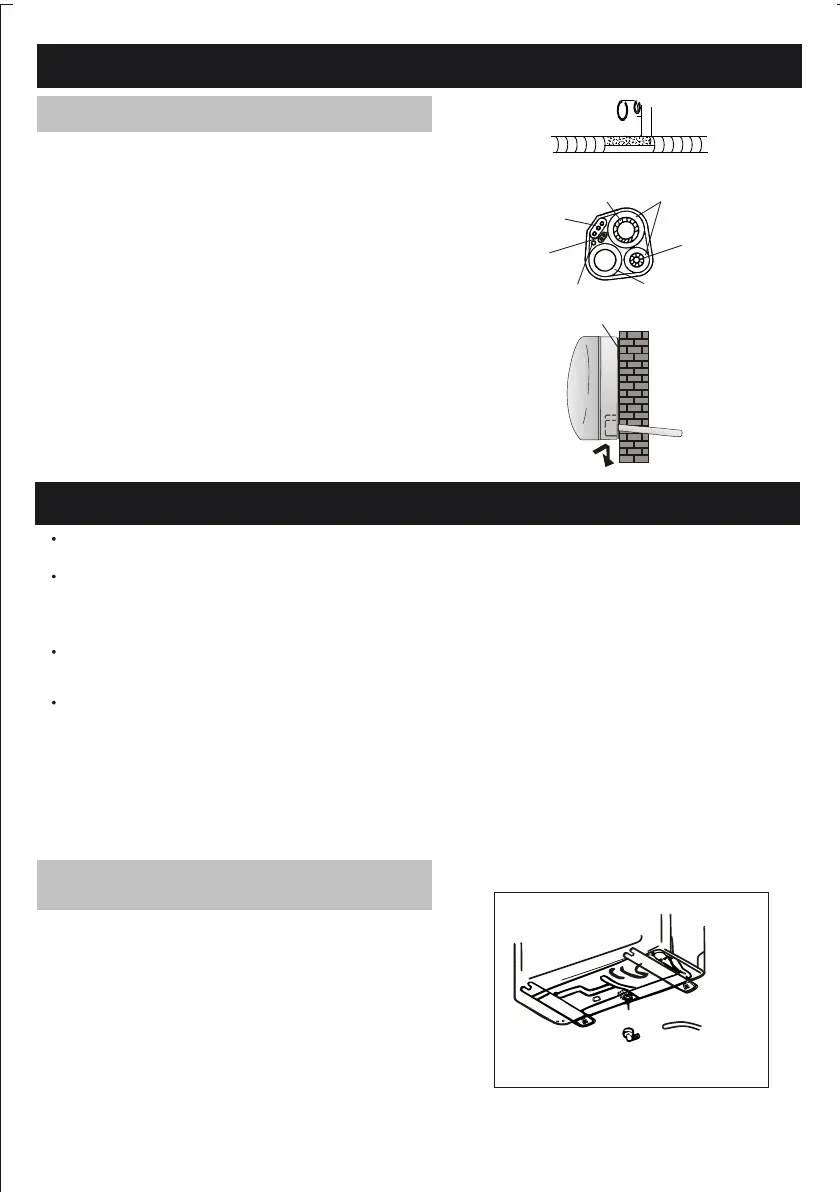

INSTALLATION MANUAL---Installation of the Indoor unit
INSTALLATION OF THE INDOOR UNIT
refrigerant
pipe
refrigerant
pipe
insulation
sleeve
connection
(for heat-pump)
cable 1
connection
cable
Probe
cable(for heat-pump)
Condensed water
drain pipe
Covered by vinyl tape
After having connected the pipe according to the instruc-
tions, install the connection cables. Now install the drain
pipe. After connection, wrap the pipe, cables and drain pipe
with the insulating material.
1. Arrange the pipes ,cables and drain hose well.
2. Wrap the pipe joints with insulating material , securing
it with vinyl tape.
3. Run the bound pipe , Cables and drain pipe through
the wall hole and mount the indoor unit onto the upper
part of the mounting plate securely.
4. Press and push the lower part of the indoor unit tightly
against the mounting plate
mounting plate
INSTALLATION MANUAL---Installation of the outdoor unit
The outdoor unit should be installed on a solid wall, or to the oor, or appropriate base.
And fastened securely.
The following procedure must be observed before co-
nnecting the pipes and connecting cables : decide
which is the best mounting location and leave enough
space to be able to perform maintenance and service.
Fasten the support to the wall using screw anchors
which are suited to the type of wall;
The unit must be installed following local
regulations.
drain pipe
The condensate water and the ice formed in the outdoor
unit during heating operation can be drained away thro-
ugh the drain pipe
1. Fasten the drain port in the 25mm hole placed in the
the unit as shown in the picture.
2. Connect the drain port and the drain pipe.
Pay attention that water is drained to a suitable place.
18
Outdoor unit condensate water drainage
(only for heat pump models)
drain port
Ensure that the appropriate type and quantities of screws and anchors are used for the particular install to
assure that the unit will not come loose during operation , and so that it will not vibrate.
