HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE -
NA 12.78 E

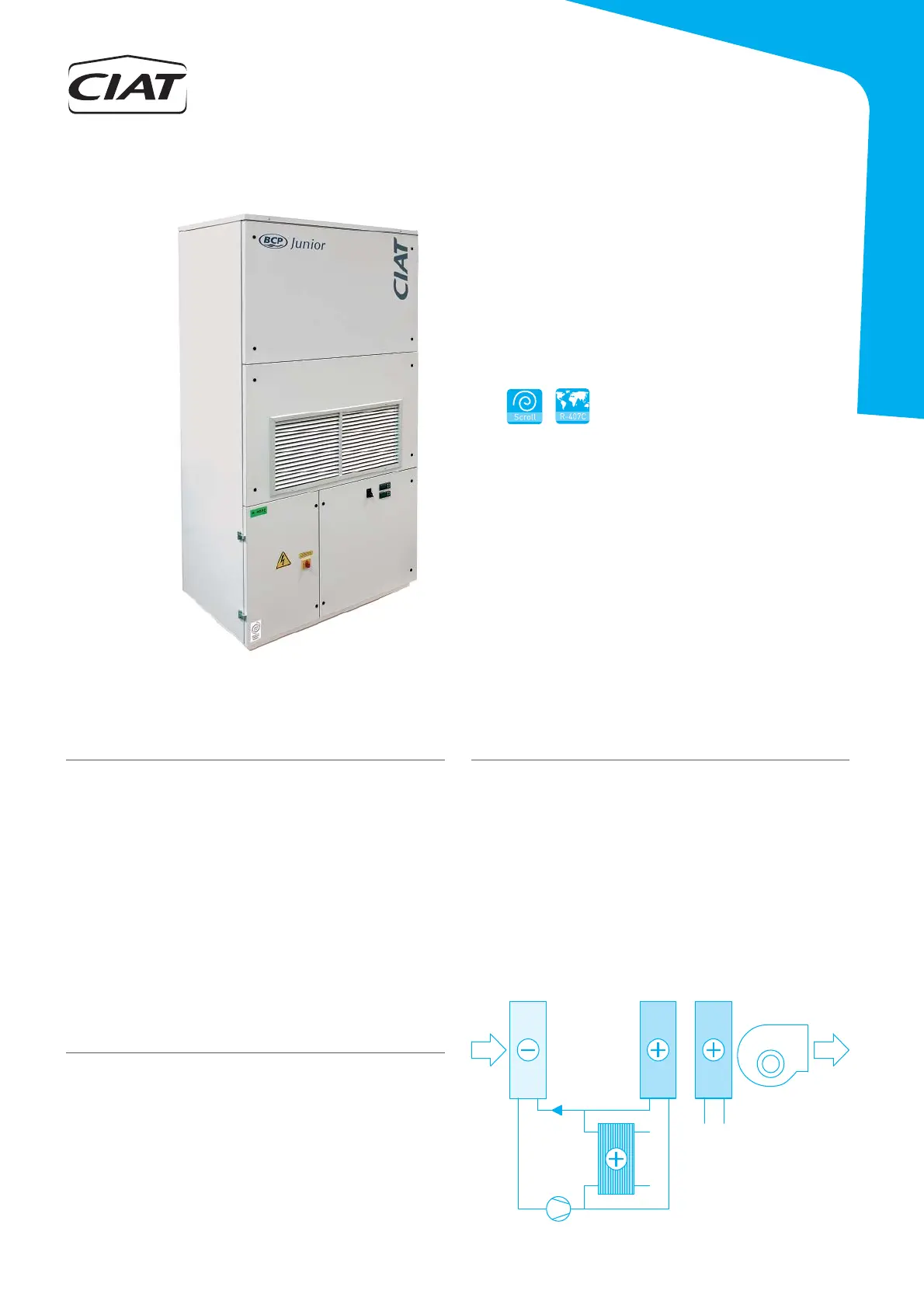

Air handling units for
swimming pools
3
Junior BCP
1. INTRODUCTION
The Junior BCP Series are dehumidifi cation units, using a cooling
circuit with total condensation heat recovery, specially designed for
conventional covered swimming pools and other dehumidifi cation
applications.
These units have been designed for assembly inside the premises.
After manufacturing, all units are charged with refrigerant and are tested
at the factory, verifying the correct operation of all their components.
In this brochure are described the actions and safety norms for a
correct unit handling.
3. OPERATING MODE
In these units, the circuit condenses over an air coil positioned at the
outlet for the air originating from the evaporator, heating its cold and
dry outlet air before discharging it to the optional auxiliary coil.
In models 70 to 90, and optionally in models 40 to 60, in parallel to the
coil, a plate exchanger made of stainless steel SMO 254 alloyed with
chrome and molybdenum is fi tted. It has high resistance to corrosion in
the presence of chlorides, which recovers part of the energy consumed
during the evaporation process.
C1
Input Output
Evaporating
coil
Condensing
coil
Water
auxiliary coil
Outlet fan
Plate
exchanger
2. OPERATION LIMITS
Air inlet dry temperature
Maximum: 35ºC (65% RH - 29ºC WB)
Minimum: 18ºC (90% RH - 17ºC WB)
Water inlet temperature to the condenser
Maximum: 35ºC
Minimum: 20ºC
Dehumidifi cation capacity:
3,9 to 15,2 kg/h
