Junior BCP
Minimum free space for commissioning and maintenance operations
General considerations:
- The unit has dimensions adapted for fi tting doors with a width of > 680mm (removable supports in models 40, 50 and 60).
- Removable access panels. Door with hinges to access the electric panel.
- All the doors and panels have rubber gasket closures to ensure tightness.
Junior BCP 20 / 30  A = 675 mm
Junior BCP 40 / 50 / 60  A = 750 mm
Junior BCP 20 / 30  A = 675 mm
Junior BCP 40 / 50 / 60  A = 750 mm

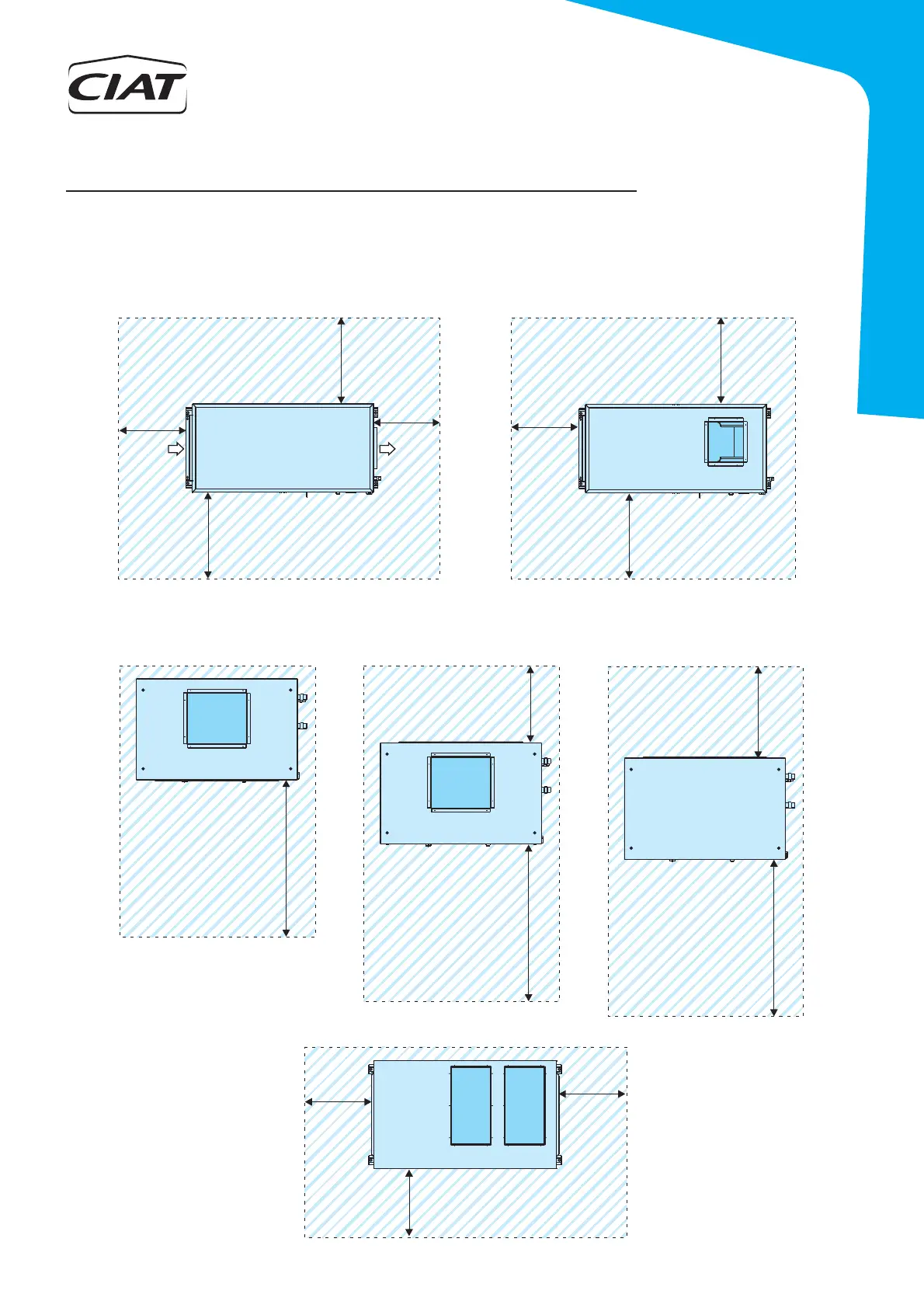

Junior BCP - 20 / 30 / 40 / 50 / 60 Horizontal outlet Junior BCP - 20 / 30 / 40 / 50 / 60 Vertical outlet
Junior BCP - 70 / 80 / 90 (M00, M01) Junior BCP - 70 / 80 / 90 (M10, M11) Junior BCP - 70 / 80 / 90 (M02, M12)
Junior BCP - Return fan module (M0, M1)
500mm
500mm
A
A
500mm
A
A
1100mm
500mm
1100mm
600mm
1100mm
500mm
750mm
500mm
