Air handling units for
swimming pools
HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE -
NA 12.78 E
6
Junior BCP
A
B
18mm
Location designation
Before moving the unit, ensure that all panels are fastened in place.
Lift and lower with care.
When choosing the location, in any way the selected fashion, the
following precautions have to be taken into consideration:
- It is mandatory to comply with norm EN 378-3 on Safety and
Environmental Requirements. Part 3: "In situ" installation and
protection to people.
- It is necessary to check that the structure supports the unit weight
(please see weights in the characteristics sheet).
- The area where the unit will be located must be perfectly accessible
for cleaning and maintenance operations (check minimum free space
for maintenance).
- Foresee appropriate bumping devices in all the installation so that
noise and vibration transmission is avoided.
- All models can be installed on the fl oor or on a brick frame or steel
profi le. In any case, check that the unit is perfectly level.
- Avoid placing obstacles in the air outlet or return.
- Ensure that the location of the outlet and return grilles does not
generate air recirculation.
- The return fan module with free-cooling 3 dampers (optional) is a
box separate from the unit. The engineer must plan a duct for joining
the unit with this module.
- These units have been studied for silent operation. Nevertheless,
the installation location must be taken into account and if the noise
emitted by the unit is greater than that estimated for the installation
plan the following:
• a possible acoustic study,
• suitable acoustic treatment if required,
• the necessary implementation precautions.
Note: consult the acoustic information provided in the technical
brochure.

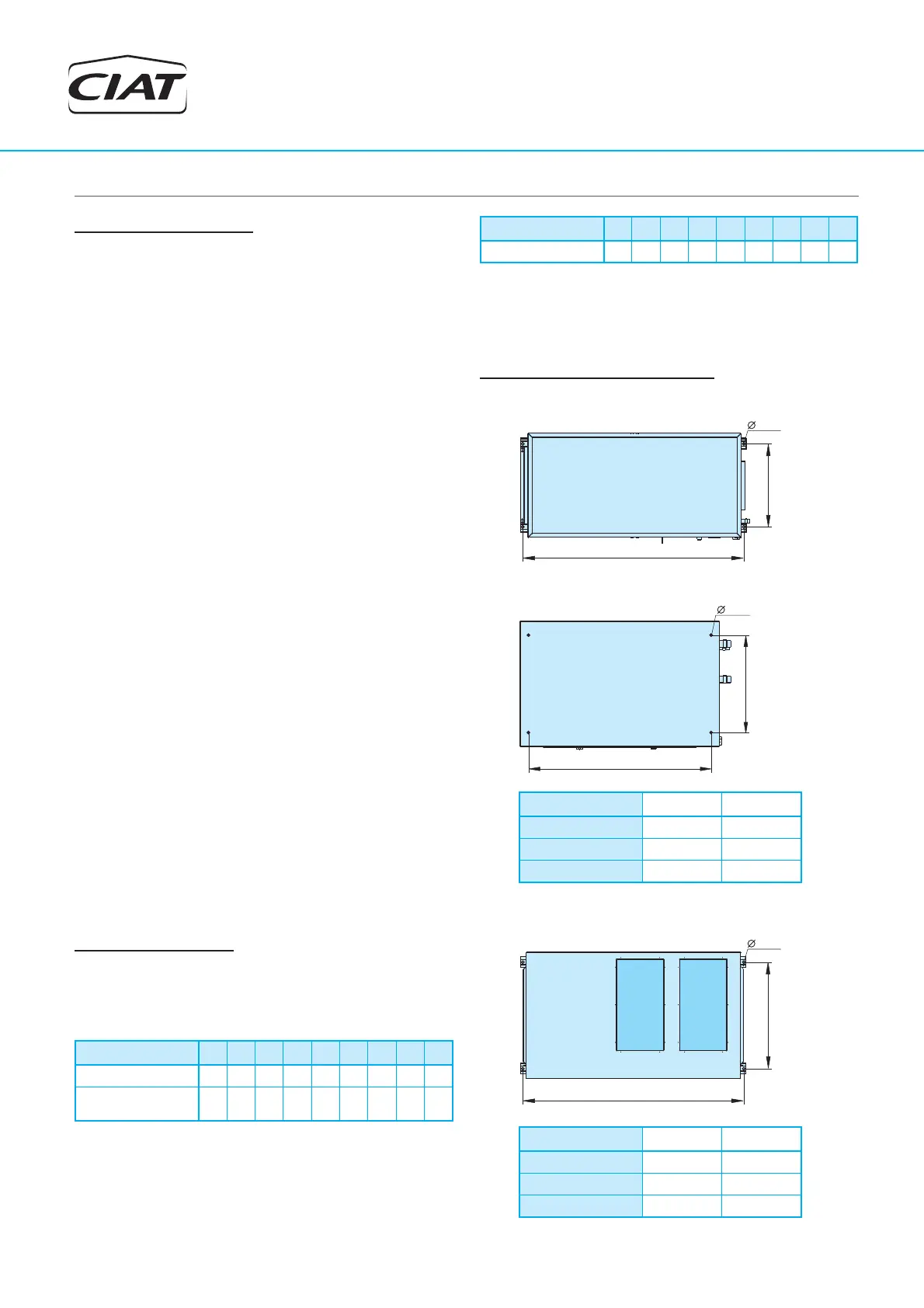

8. LOCATION AND ASSEMBLING
Anchorage for antivibrators
Junior BCP Series A (mm) B (mm)
20 / 30 1266 890
40 / 50 / 60 1456 1030
70 / 80 / 90 1797 1366
Junior BCP Series A (mm) B (mm)
20 / 30 1378 528
40 / 50 / 60 1470 708
70 / 80 / 90 1470 708
Return fan module (optional)
Junior BCP - 20 / 30 / 40 / 50 / 60
A
B
18mm
A
B
18mm
Junior BCP - 70 / 80 / 90
Sound levels dB(A)
Sound power level
Sound power level in the discharge fan outlet and in the return (optional)
fan aspiration to be taken into account for the silencer calculation:
Junior BCP 20 30 40M 40 50 60 70 80 90
Supply fan dB(A) 63,0 64,0 71,0 71,0 72,0 77,5 72,0 73,5 74,2
Return fan
(optional) dB(A)
70,0 71,0 66,6 66,6 67,3 73,7 77,0 67,8 68,2
Junior BCP 20 30 40M 40 50 60 70 80 90
Standard unit dB(A) 45,4 46,1 50,7 50,2 51,4 56,3 52,9 54,0 56,6
Note: The sound pressure level depends on the installation conditions
and, as such, is only indicated as a guide.
Sound pressure level
Measurement conditions: in free fi eld, measured at a distance of 5
metres, directivity 2 and at 1,5 metres from the ground.
