CIGWELD WELDSKILL 200HF - Page 33

OPERATING MANUAL
200HF
OPERATING MANUAL
200HF
Manual 0-5406 5-5 SERVICE
240VAC, 15A Mains Supply
Art # A-12970
NEGATIVE
OUTPUT
TERMINAL
POSITIVE
OUTPUT
TERMINAL
Set Process
Selection Switch to
HF TIG or LIFT TIG mode
TIG Torch
Work Lead
TIG Torch
8 Pin Control Plug
TIG Torch
Gas Hose connection
TIG Torch
Trigger Switch
TIG Torch
Remote Current
Control
Shielding Gas Hose
Shielding Gas
Cylinder
(Argon Gas)
See WARNING below
regarding securing the
gas cylinder.

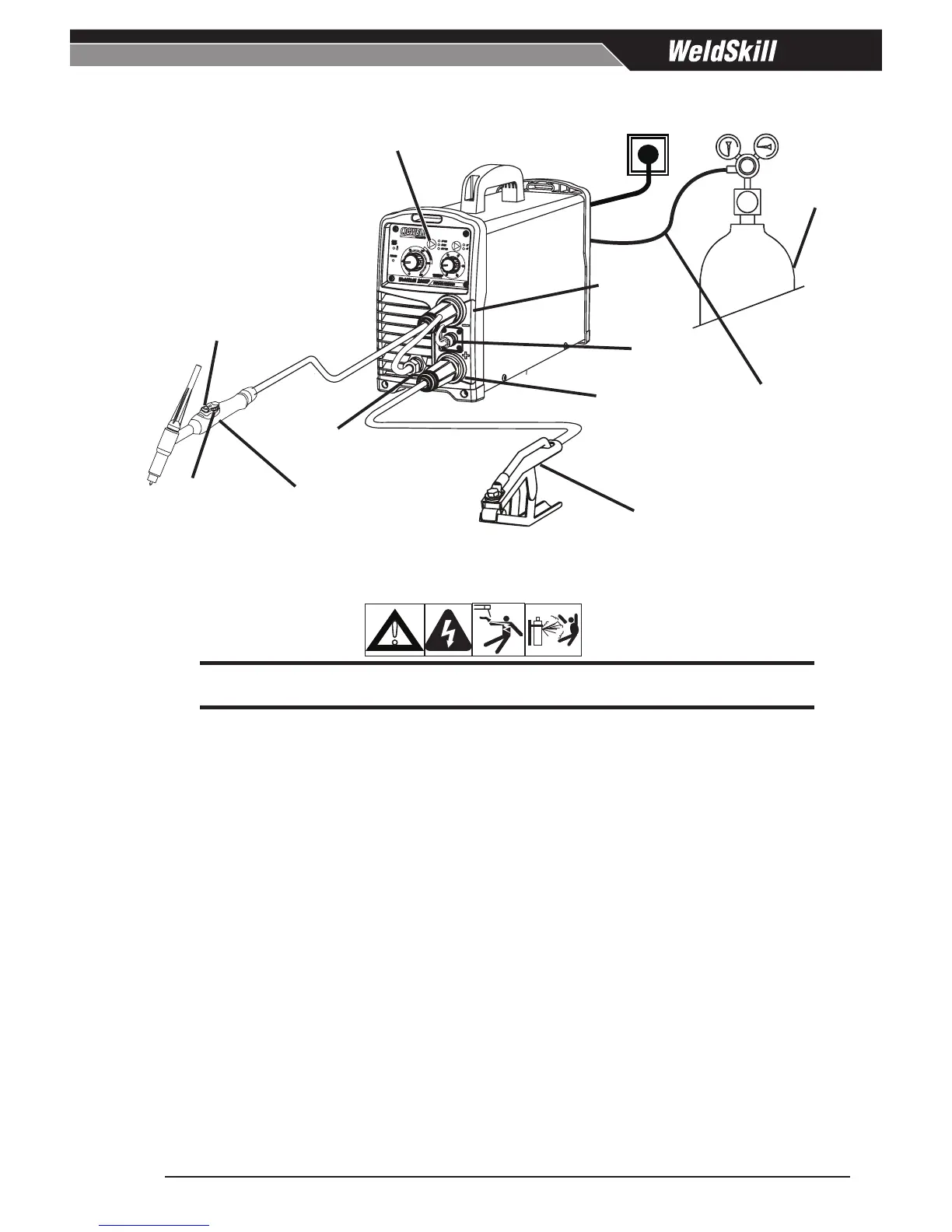

Figure 5-3: Setup for TIG (GTAW) Welding
!
WARNING
Secure the welding grade shielding gas cylinder in an upright position by chaining it to a suitable
stationary support to prevent falling or tipping.
