CIGWELD WELDSKILL 200HF - Section 8: Key Spare Parts; Weldskill 200 HF Key Spare Parts

Manual 0-5406 8-1 KEY SPARE PARTS
OPERATING MANUAL
200HF
SECTION 8: KEY SPARE PARTS
8.01 WeldSkill 200HF Key Spare Parts
2
1
6
3
5
4
Art # A-12972
7

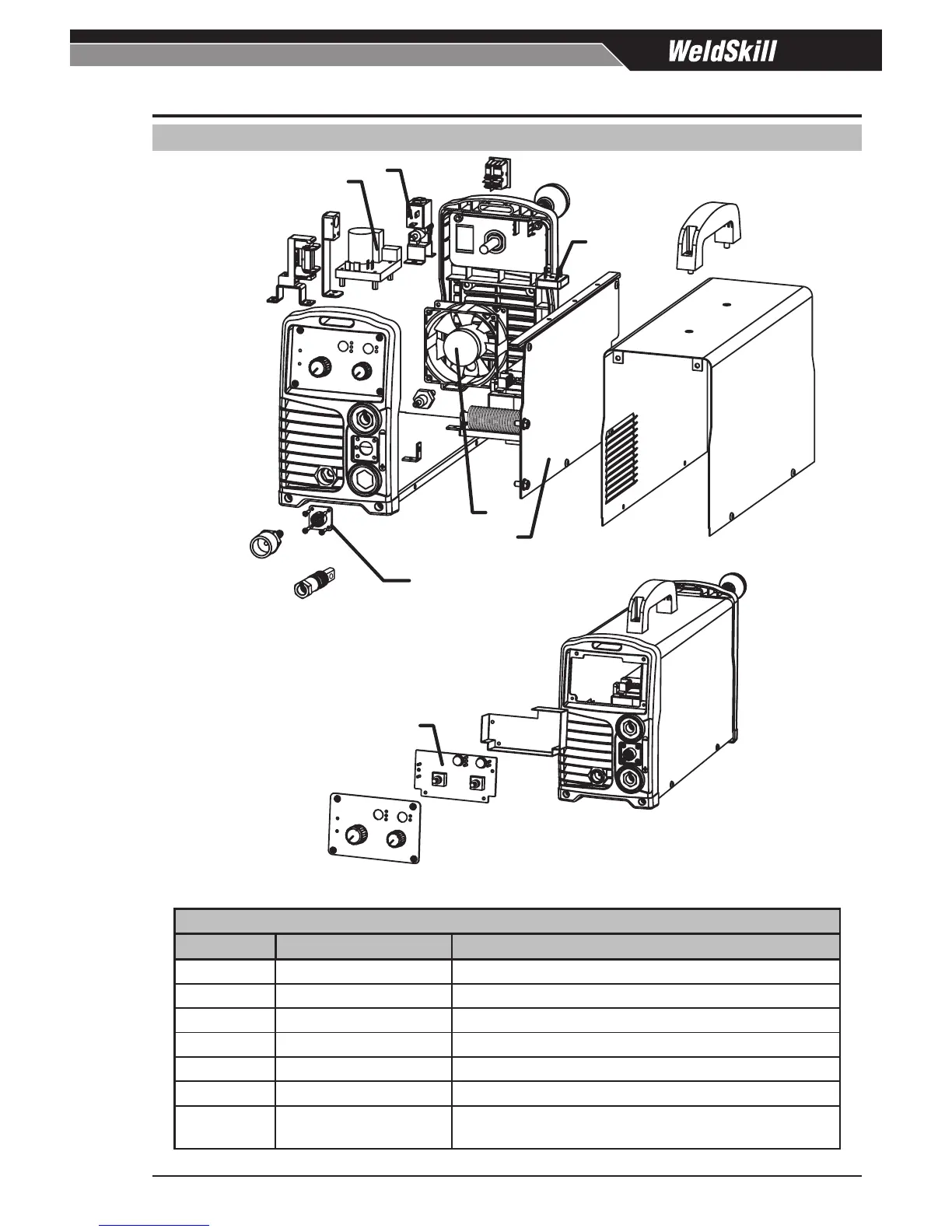

Figure 8-1
WELDSKILL 200HF KEY SPARE PARTS
ITEM PART NUMBER DESCRIPTION
1 W7006844 PCB Power Inverter
2 W7006845 PCB Front Panel
3 W7006846 PCB HF
4 W7006829 Primary Rectifier
5 W7006849 Solenoid Valve 24VDC
6 W7006809 Fan 24VDC
7 W7006847 Control Socket 8 Pin c/w wiring harness (Note 8 Pin control plug
is part number UOA706900)
Table 8-1
