Cinderella CLASSIC - 6. REPAIRS AND SPARE PARTS; 6.1 SPARE PARTS LIST

ENGLISH
25
6. REPAIRS AND SPARE PARTS

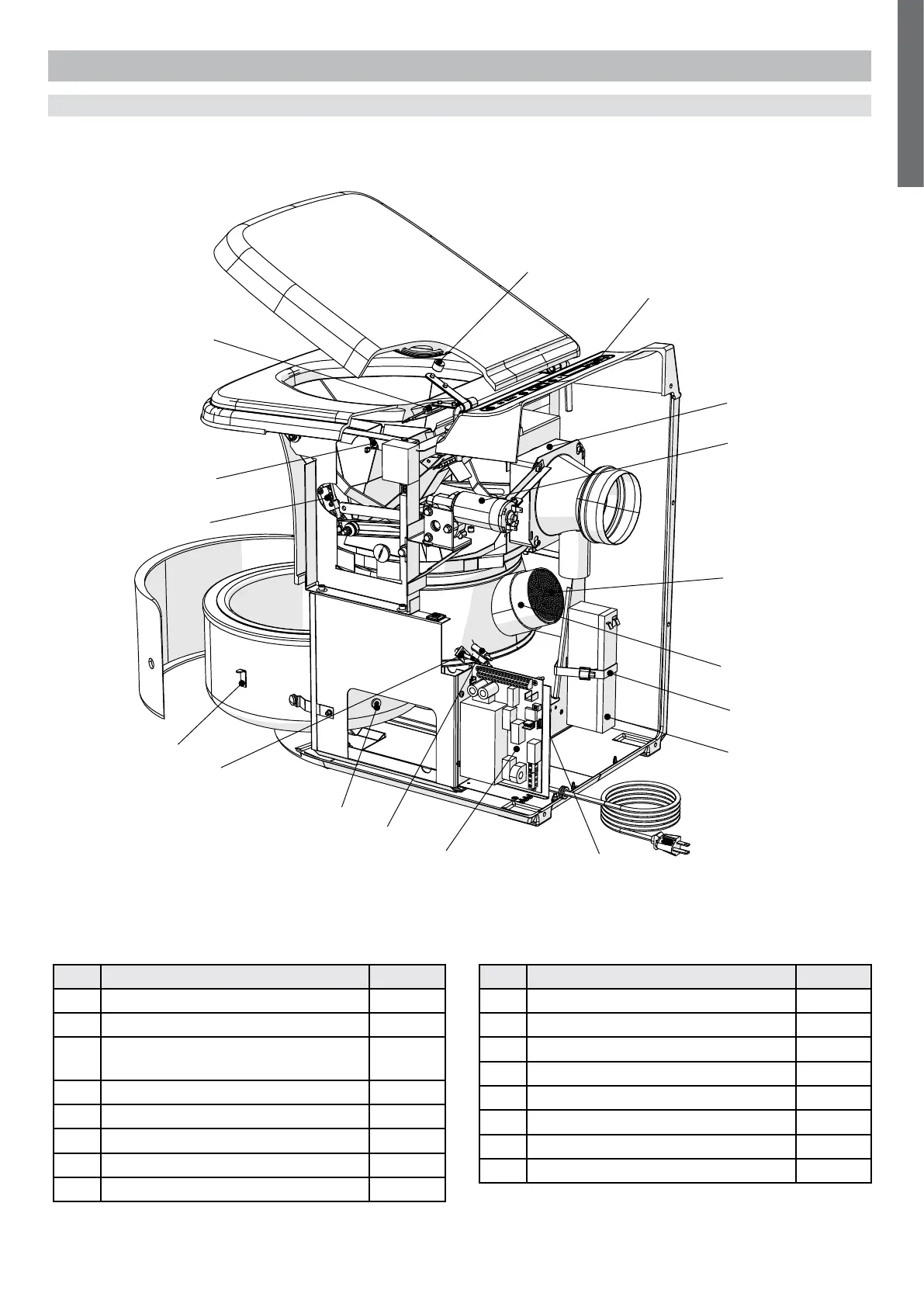

6.1 SPARE PARTS LIST
1
2
5
6
4
8
7
3
9
10
11
12
13
14
15
17
16
ID PART DESCRIPTION ART. NO
1 Control panel Classic w/display 100115
2 Magnet 14x10mm 100433
3 Hall sensor w/ wire and tape
L= 330mm
100964
4, 5 Micro switch 101127
6 Fan axial 12VDC 119x38mm 100154
7 Motor Nidec 12/24VDC 101177
8 Stop bracket 9x26x12mm 100017
9 Thermocouple assembly L=550mm 100831
ID PART DESCRIPTION ART. NO
10 Magnet 14x7mm 100065
11 Circuit board (E5) 100063
12 Hall sensor w/ wire reduced length 100965
13 Heater element assembly230VAC 100862
14 Insulation fabric catalytic converter 100163
15 Catalytic converter 90x75mm 100528
16 Battery 12V 100083
17 Hose clamp280mm A4 100932
