Cinderella CLASSIC - Installing the Outlet Pipes

ENGLISH
9
DIAMETER VENT PIPE OUTLET DIRECTION REFERENCE BENDS MAXIMUM PIPE LENGTH
110mm Horizontal ue pipe C (Not allowed) 1.0m
110mm Vertical ue pipe A None 6.0m
110mm Vertical ue pipe B 2 x 45° bends 5.0m

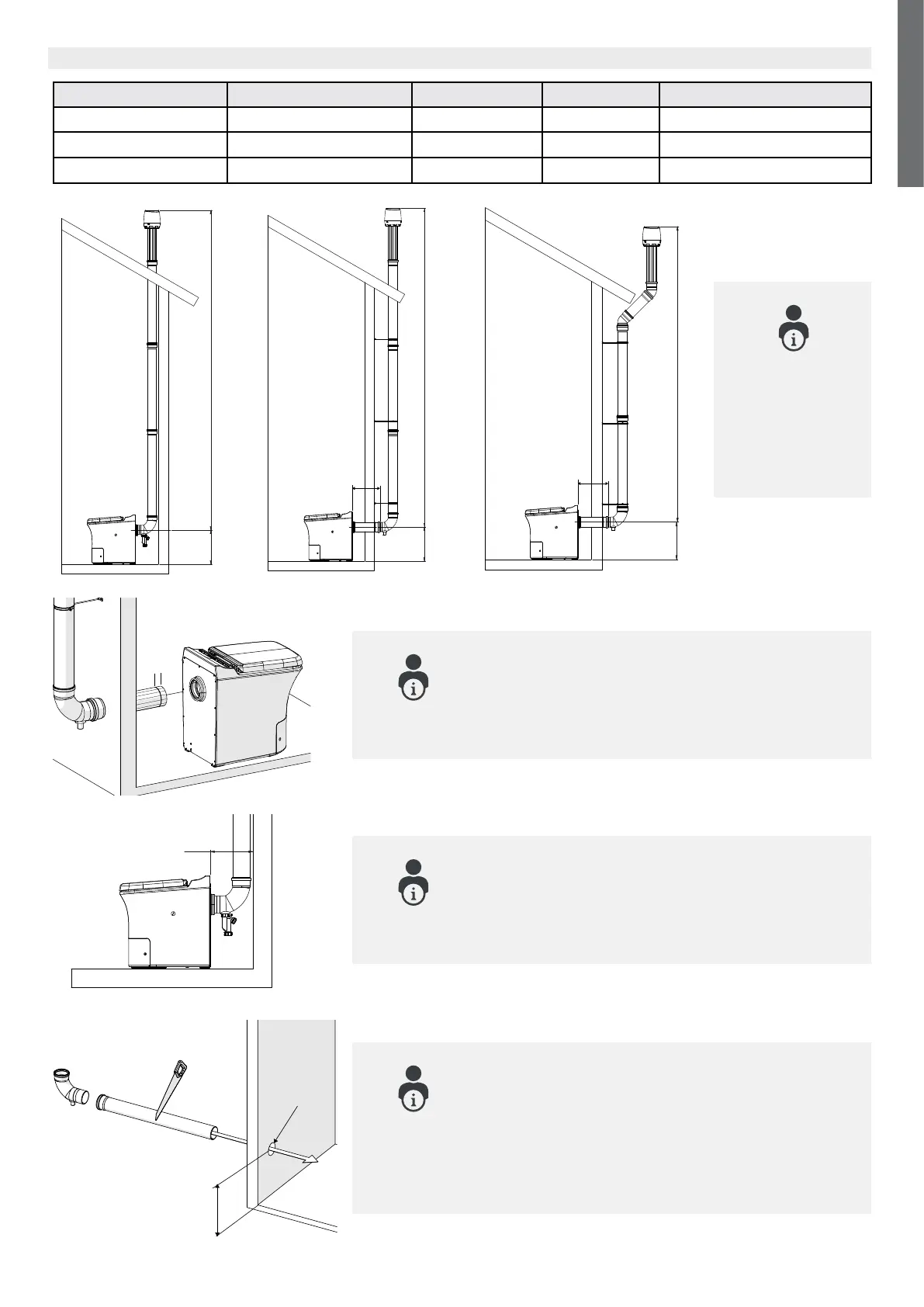

2.5.1 INSTALLING THE OUTLET PIPES
415
Max A
C
415
Max A
415
Max B
C
NOTE!
The center of
the appliance
ue terminal is
415 mm from
the oor level.
NOTE!
When adjusting the pipe length, please notice
that the pipe will enter 35 mm into the appliance
ue terminal, and will have to be calculated into
the planning of your installation.
NOTE!
When installing the pipe vertically, straight up
from the appliance, please notice that the
minimum distance from the wall must be
280mm.
NOTE!
The Original Cinderella Installation Kit includes
5 x 1066 mm pipes to be used on the outlet
installation, the pipes are delivered with socket
and gasket for simple installation. When
installing the pipe on the outer wall, you will have
to enter the pipe from the external to the inside.
415 mm
Ø 111mm
35 mm
280
