TIP: Make sure the 6’ Cell Cable (DC power cord) can reach the
section of pipe selected for the cell.
Mount the Control Module as close to the pump
and filtration system as possible. For safety
concerns, do not install the Power Unit within 10
feet of the pool edges, and follow all applicable
codes.
Using screws, secure the Mounting Bracket at a
comfortable level on a wall or support. Once holes
are drilled into the wall and screws are tightly
secured, lift the Control Module onto the bracket,
and use additional screws to ensure that bracket
and Control Module are securely held in place.
TIP: After final installation steps, initially set the
output to 70% then adjust output (raise or lower) according to
chlorine demand.
TIP: Make sure the 6’ Cell Cable (DC power cord) can reach the section of
pipe selected for the cell, and that the pool pump is turned off before
installation.

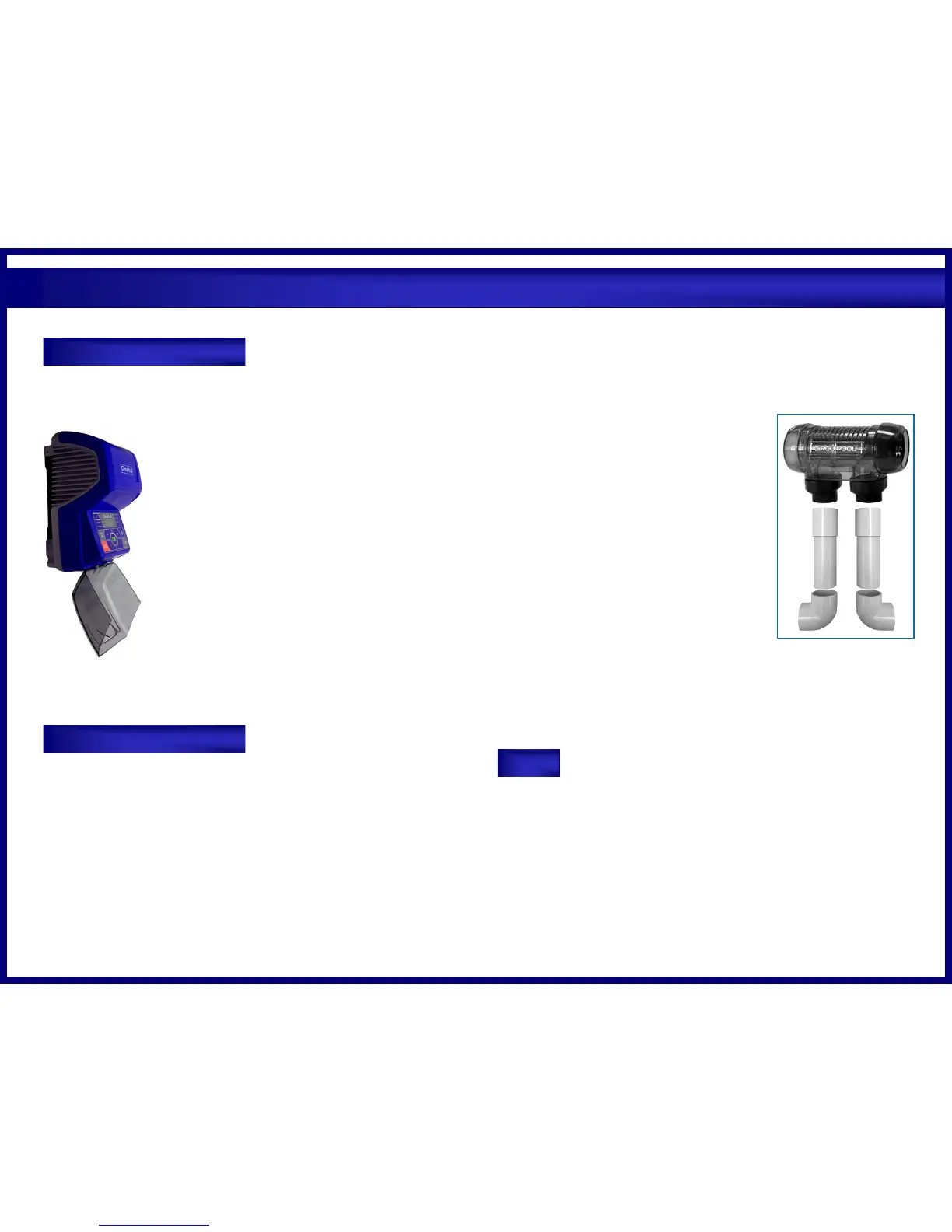

The Electrolytic Cell is to be fitted into the return line as the last piece of
equipment the water passes through before returning to the pool: after the
pump, filter, heater (if applicable), etc. If a heater is present, all equipment
must be a minimum distance away, per manufacturer recommendations.
Measure and cut out a section of pipe (6 7/8”) at the desired location
in the return pipe, and install two 90° elbows glued to either side with
the openings facing up. Next, glue a minimum 6” pipe with a coupling
to each of the 90° elbows. Ensure barrel unions are tightened to the
cell prior to gluing to PVC (Note: for a
watertight seal, do not over tighten the
Collars, and only tighten them by hand).
There is no need to remove barrel unions
from the Cell body at the time of installation.
The O-ring connection is very tight when new
and dry, but will come apart easily when it is
time for cleaning. The cell is to be mounted
horizontally, with the inlet and outlet facing
down. This image denotes a standard 2”
plumbing install. If 1 ½” is required, simply
glue the pipe to the inside of the inlet/outlet
barrel unions, and utilize 1 ½” elbows.
Ensure that the RJ installation does not constitute a cross connection
with the local potable water supply. Consult local plumbing codes.
Power must be shut off at the circuit breaker before performing any
wiring. Be sure to follow local and NEC/CEC electrical codes. The
CircuPool RJ series has been designed to easily wire into typical in-
ground pool systems. To provide safe operation, the unit must be
properly grounded and bonded.
